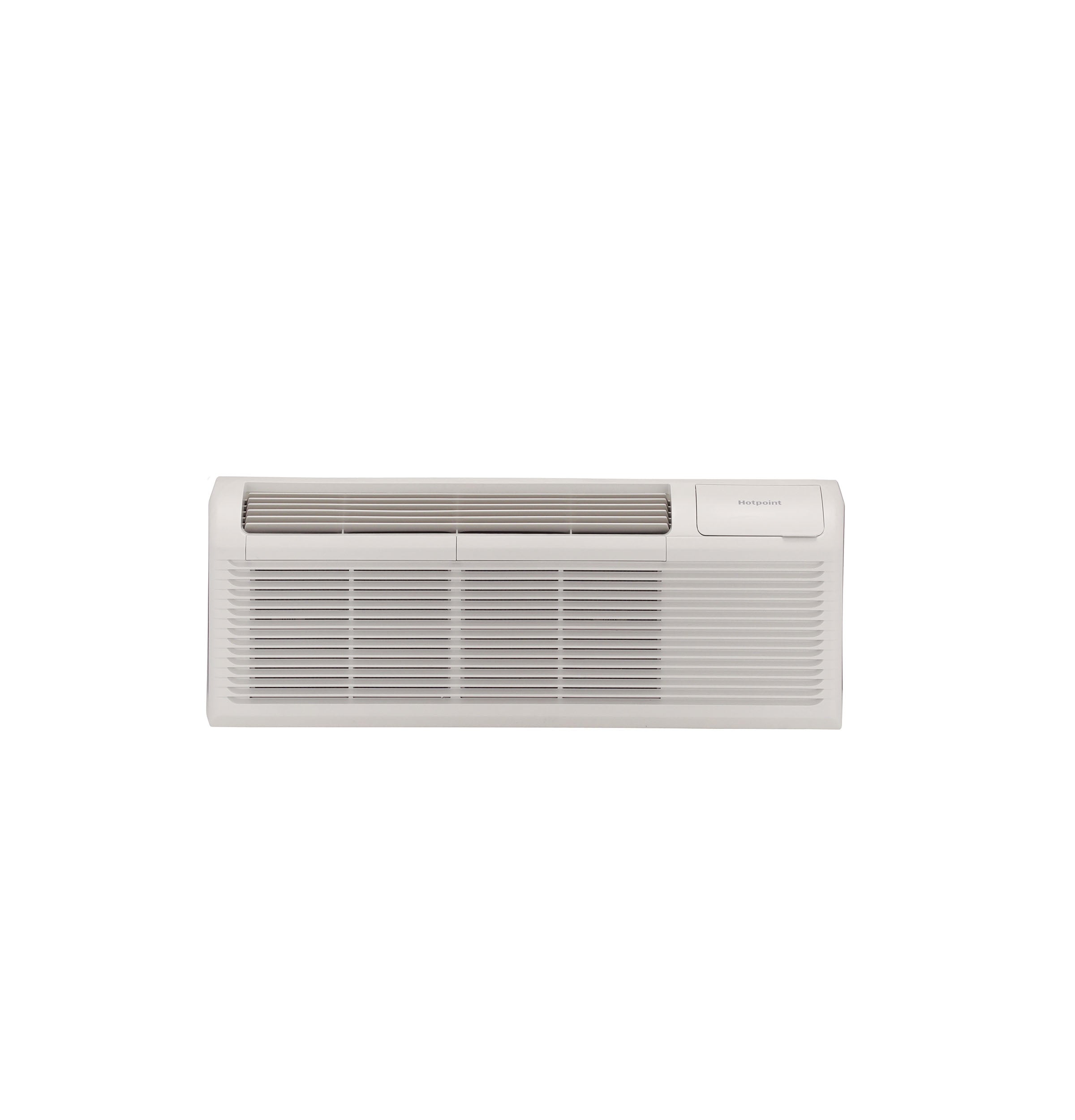

Hotpoint® PTAC with Electric Heat 9,000 BTU, 230/208V, 20amp
In stock : 20
AH12E09D3B
$849.00
FEATURES Control Type Electronic Fan Speed Selections 3 Cooling, 3 Fan Only, 3 Heating Discharge Grille 2-position Product Type Packaged Terminal Air Conditioners (PTAC) Refrigerant Type R32 Manual Vent Control Hidden "SmartFan" Fan Cycle Yes Chassis Type Slide-In Fan Motor 2 Unit Features Auto Power Recovery, Automatic Indoor Frost Control,...
• Own this product? See Maintenance & Care
Chassis Type
Control TypeElectronic
Installation
Net Weight
Overall Depth20.900000
CFM Indoor Fan Low
CFM Indoor Fan Medium391
| Feature | Description |
|---|---|
| Auto Power Recovery | Yes |
| Chassis Type | Slide-In |

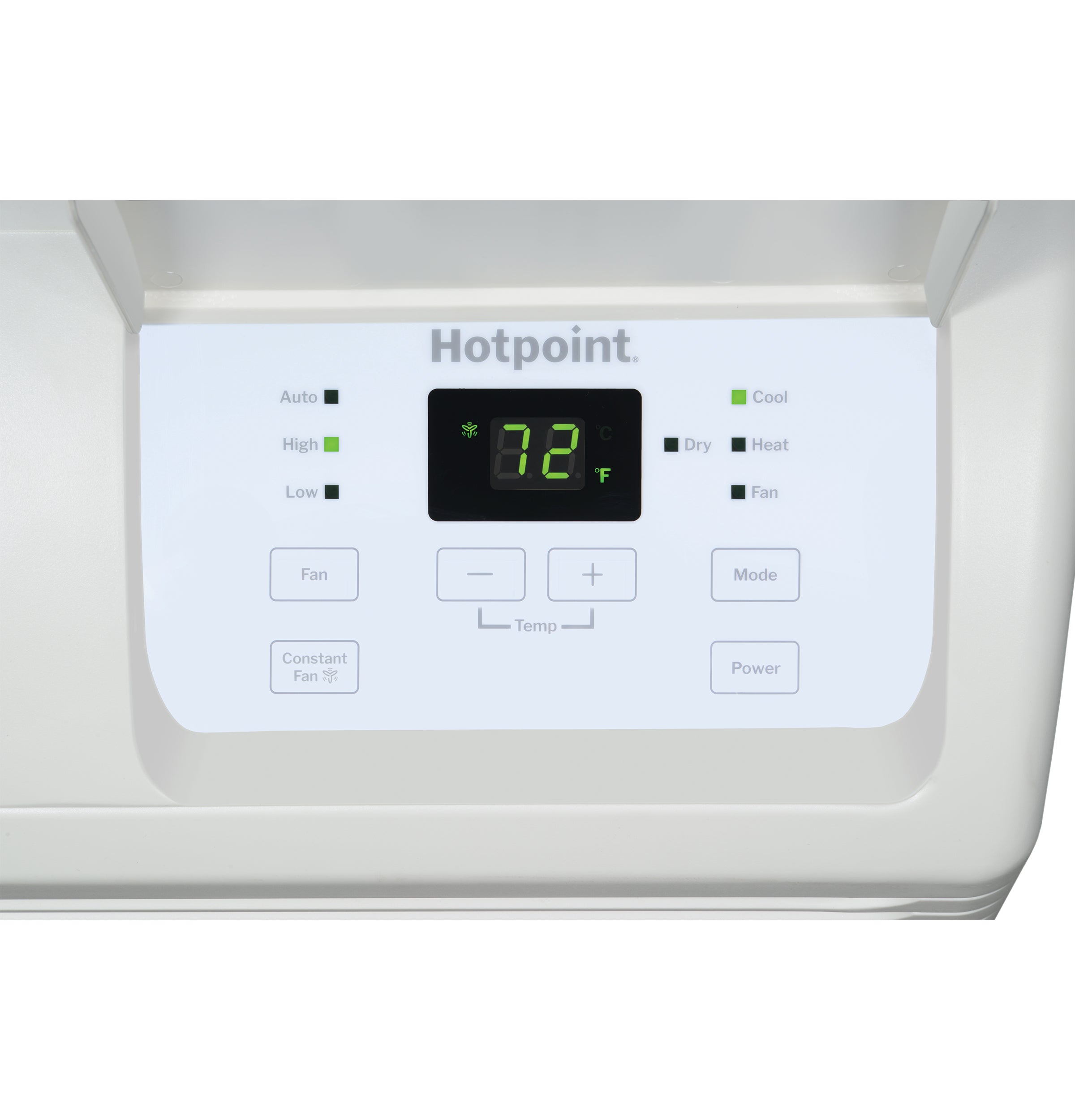

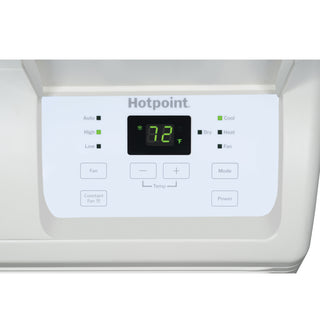

| Control Type | Electronic |
| Discharge Grille | 2-position |
| Fan Motor | 2 |
| Fan Speed Selections | 3 Cooling, 3 Fan Only, 3 Heating |
| Heat - Cool | Yes |
| Heating System | Electric Resistance |
| Manual Vent Control | Hidden |
| Outdoor Vent / Exhaust | Yes |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R32 |
| Rotary Compressor | Yes |
| Temperature Range | 62 - 80 F |

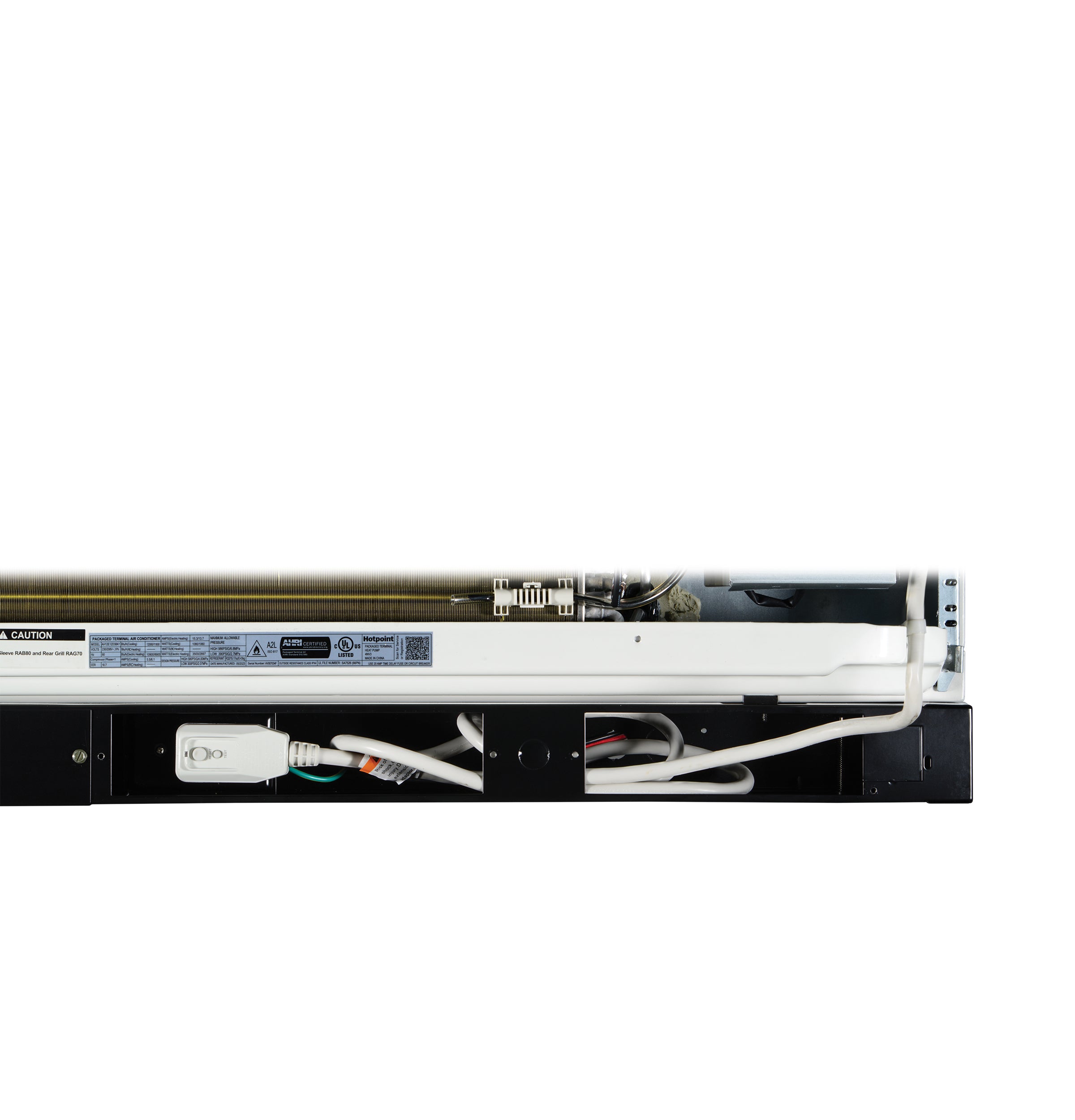

| Unit Features | Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Power Cord (LCDI) included, Remote Thermostat Compatibility |
| Venting Features | Concealed Manual Vent Control, Vent Air Filter |
| Feature | Description |
|---|---|
| Color Appearance | White |
| Installation | Through-the-Wall |
| Feature | Description |
|---|---|
| CFM Indoor Fan High | 434 |
| CFM Indoor Fan Low | 340 |
| CFM Indoor Fan Medium | 391 |
| Cooling BTUH (MAX) | 9200.000000 |
| Cooling BTUH (MIN) | 9000 |
| Cooling EER (BTUH / Watt) | 11.3 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 108.7 inches |
| Net Weight | 98.1 inches |
| Overall Depth | 20.9 inches |
| Overall Height | 16.0 inches |
| Overall Width | 42.4 inches |
| Feature | Description |
|---|---|
| Cooling - Amperes | 3.5/3.8 |
| Cooling - Watts | 810/795 |
| Heating - Electric - Heater Amps | 15.3/13.7 |
| Heating - Electric - Heater Watts | 3535/2900 |
| Voltage (MAX) | 230.000000 |
| Voltage (MIN) | 208 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
