Monogram 36" Integrated Bottom-Freezer Refrigerator - COMING SOON
• Own this product? See Maintenance & Care

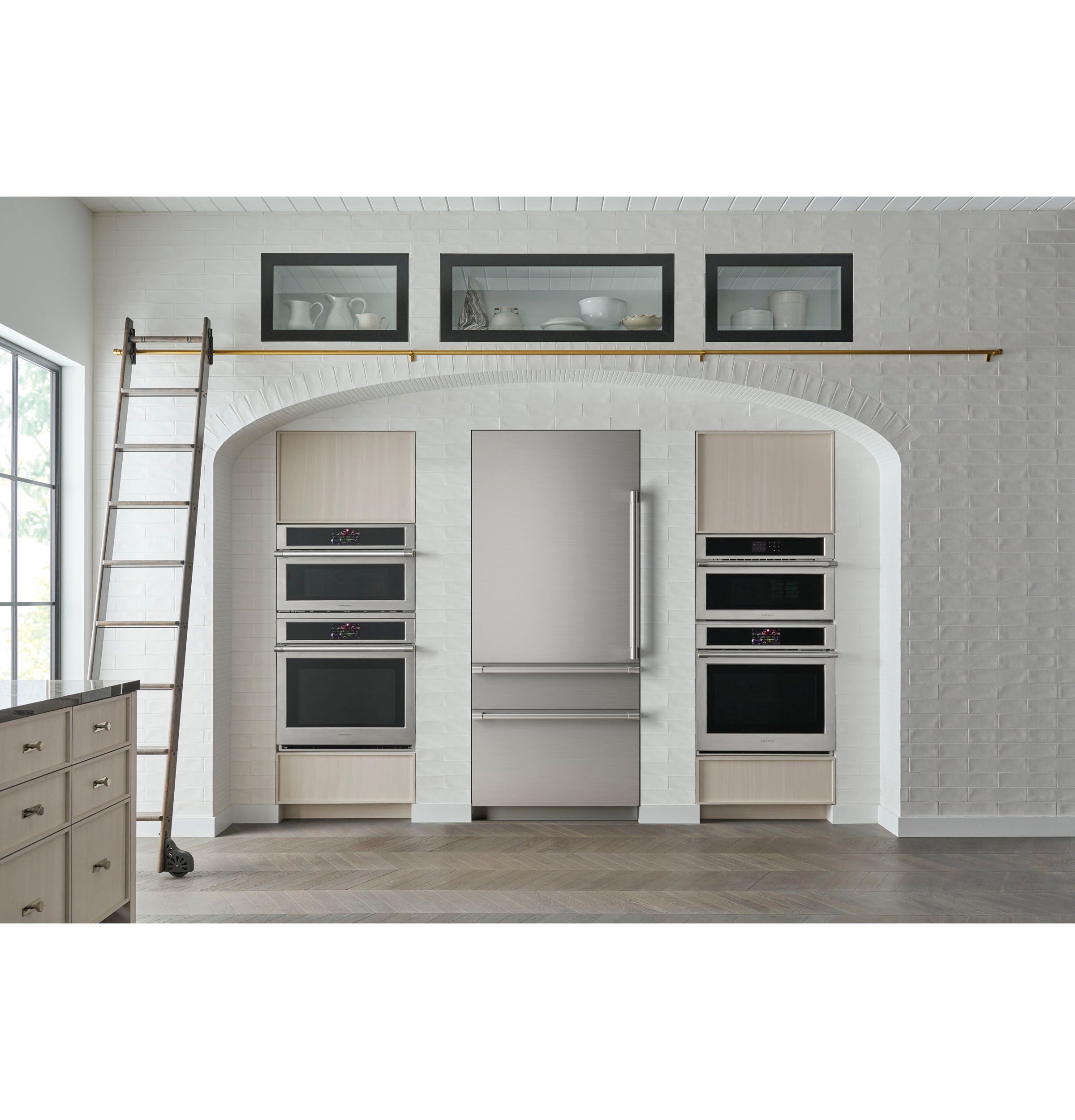

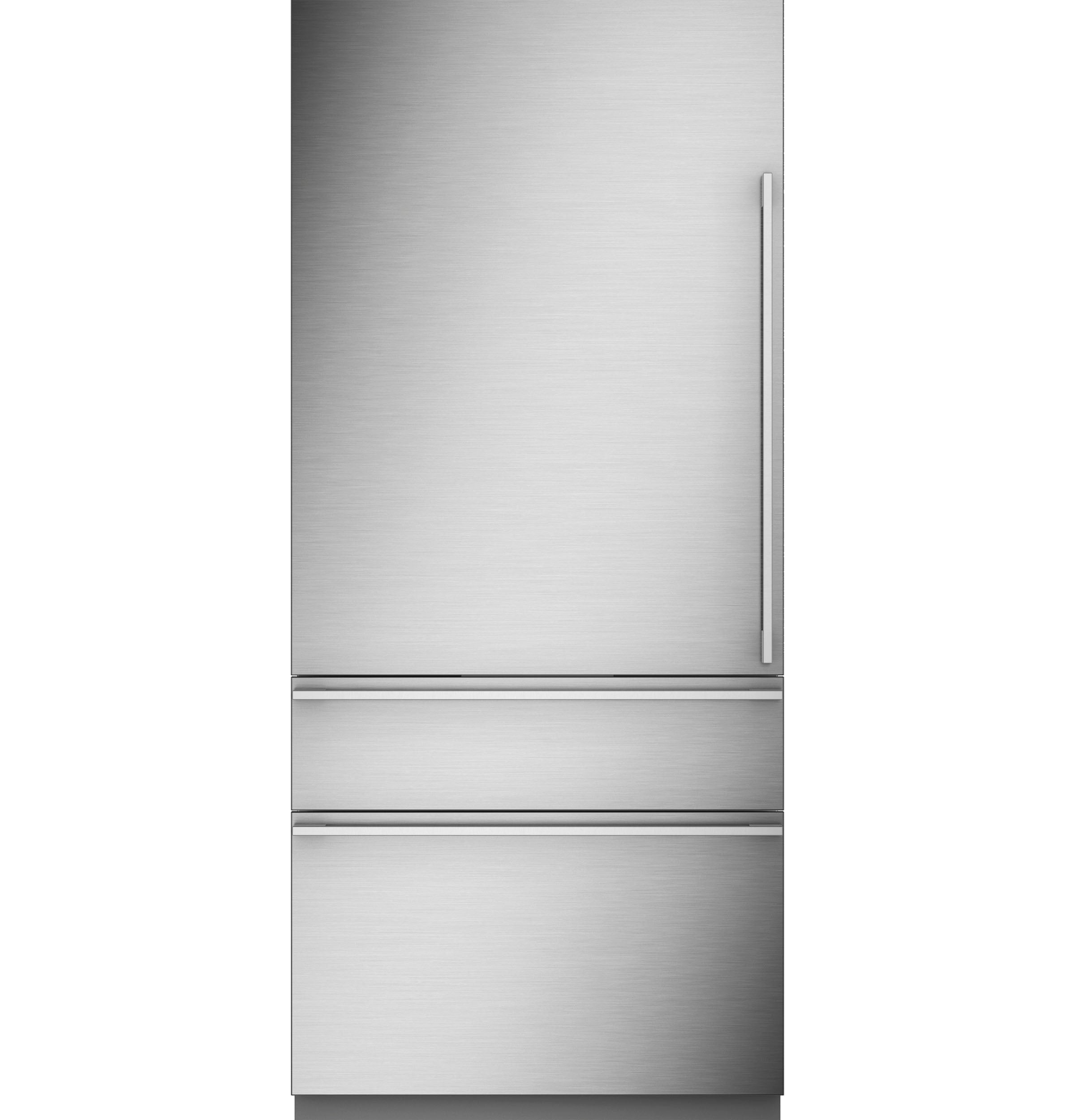

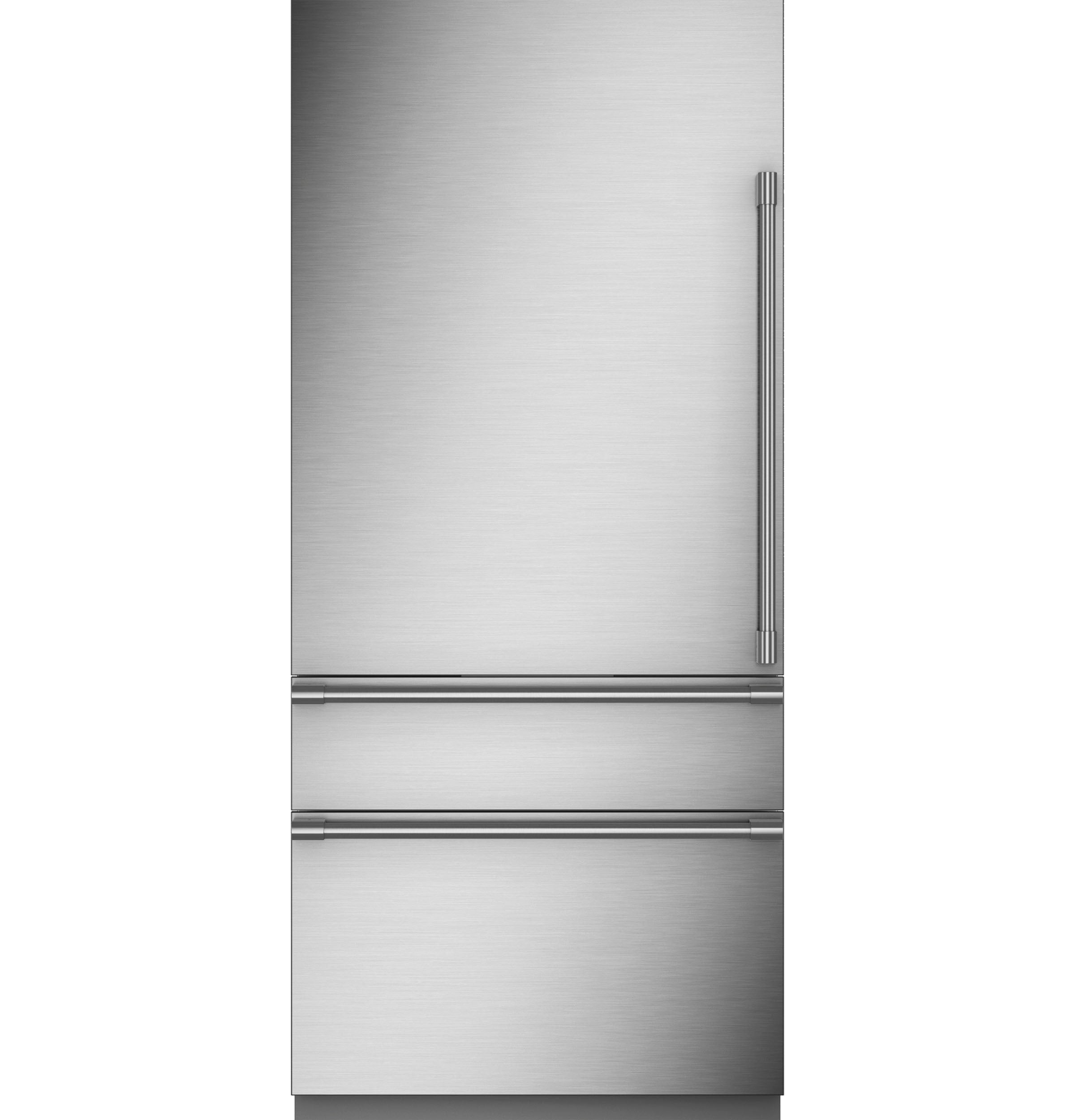

Bottom Freezer with Flush Inset Installation
Sleek design allows the refrigerator to be installed flush with adjacent cabinetry

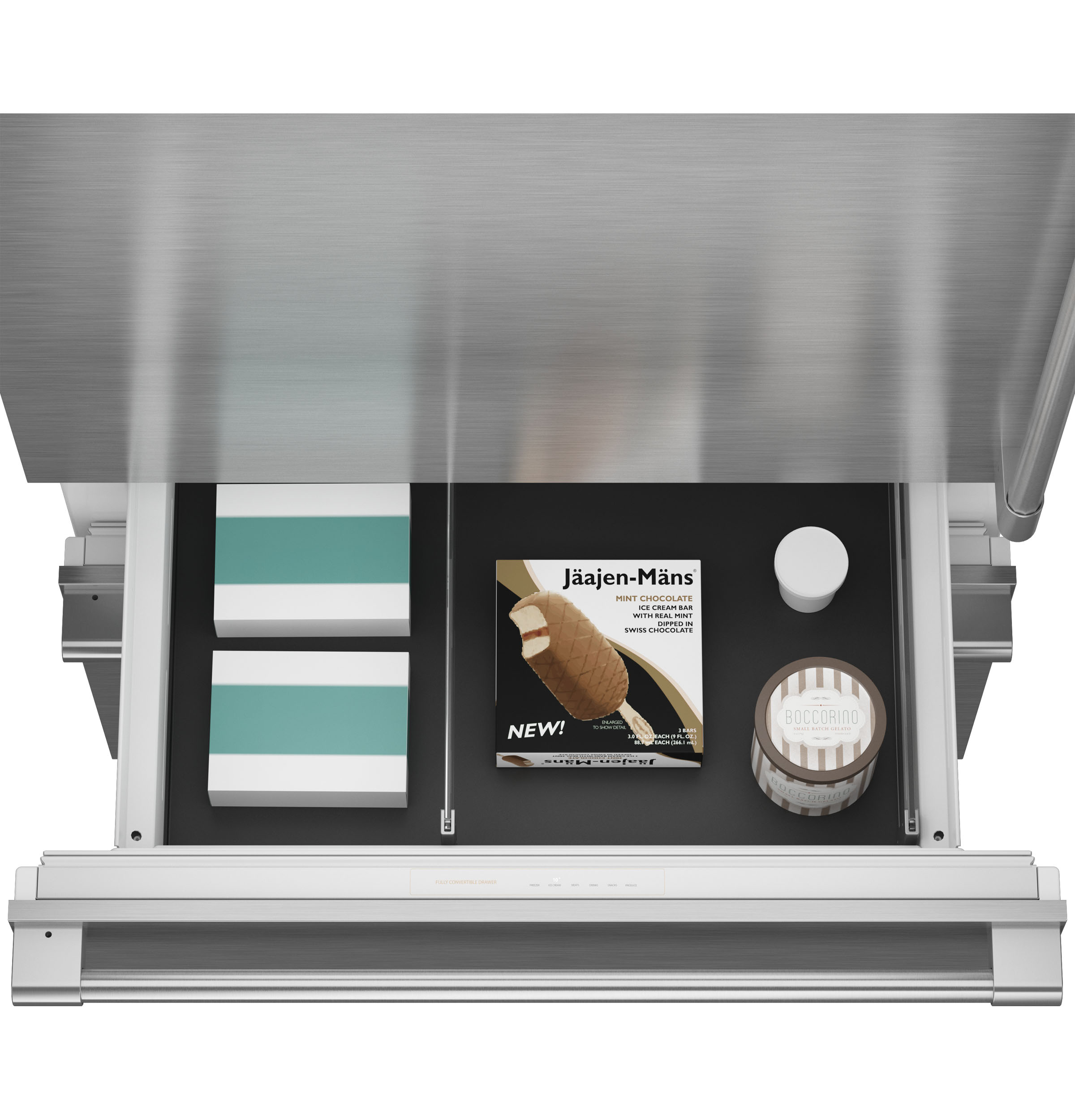

6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items
WiFi Connected Refrigerator
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app
2 Humidity-Controlled Vegetable Drawers
Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness

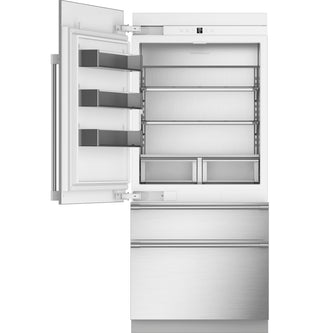

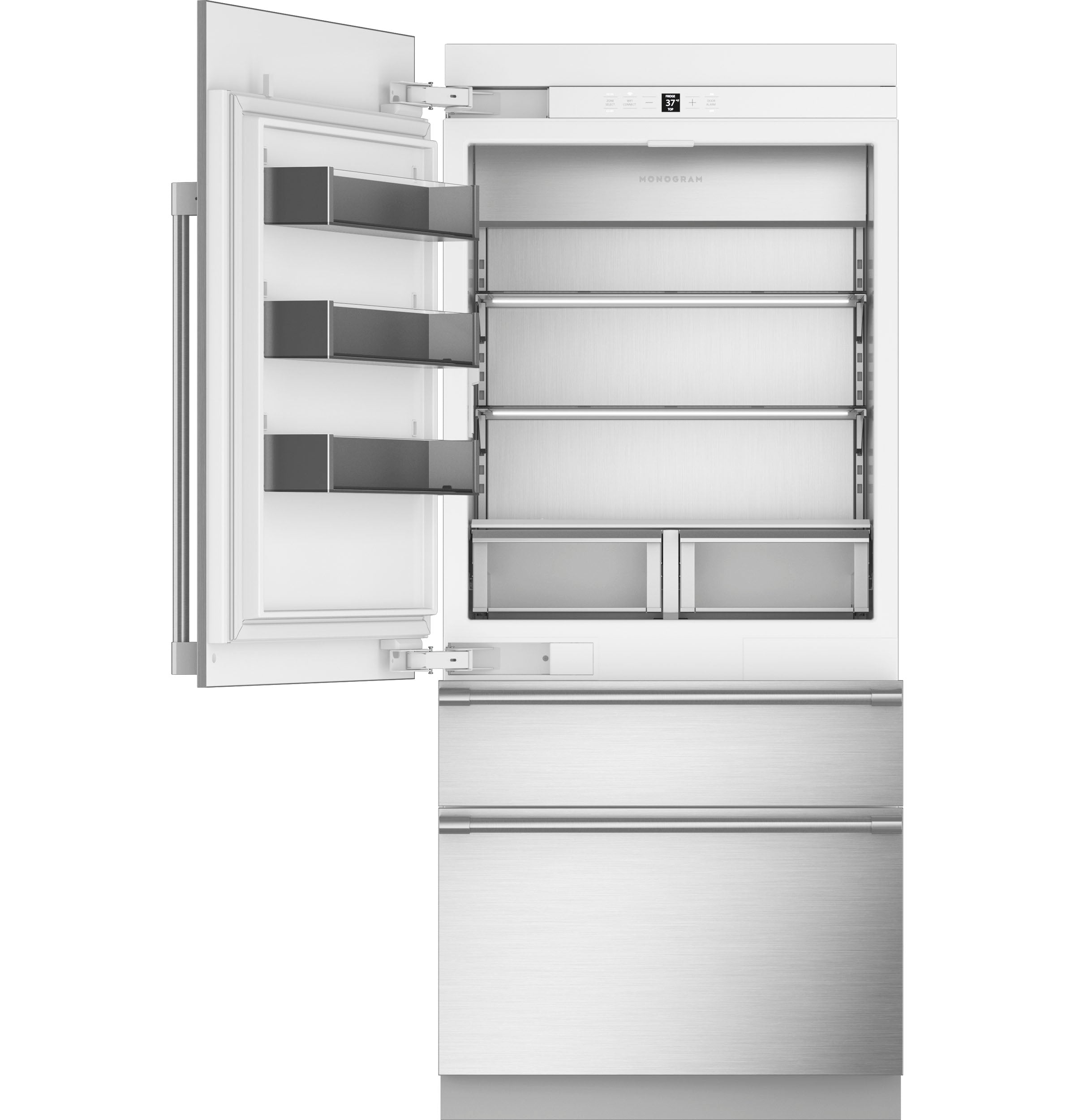

Glass Front Refrigerator Door Bins
The clear design makes it easy to see and access quick-grab items from refrigerator bins

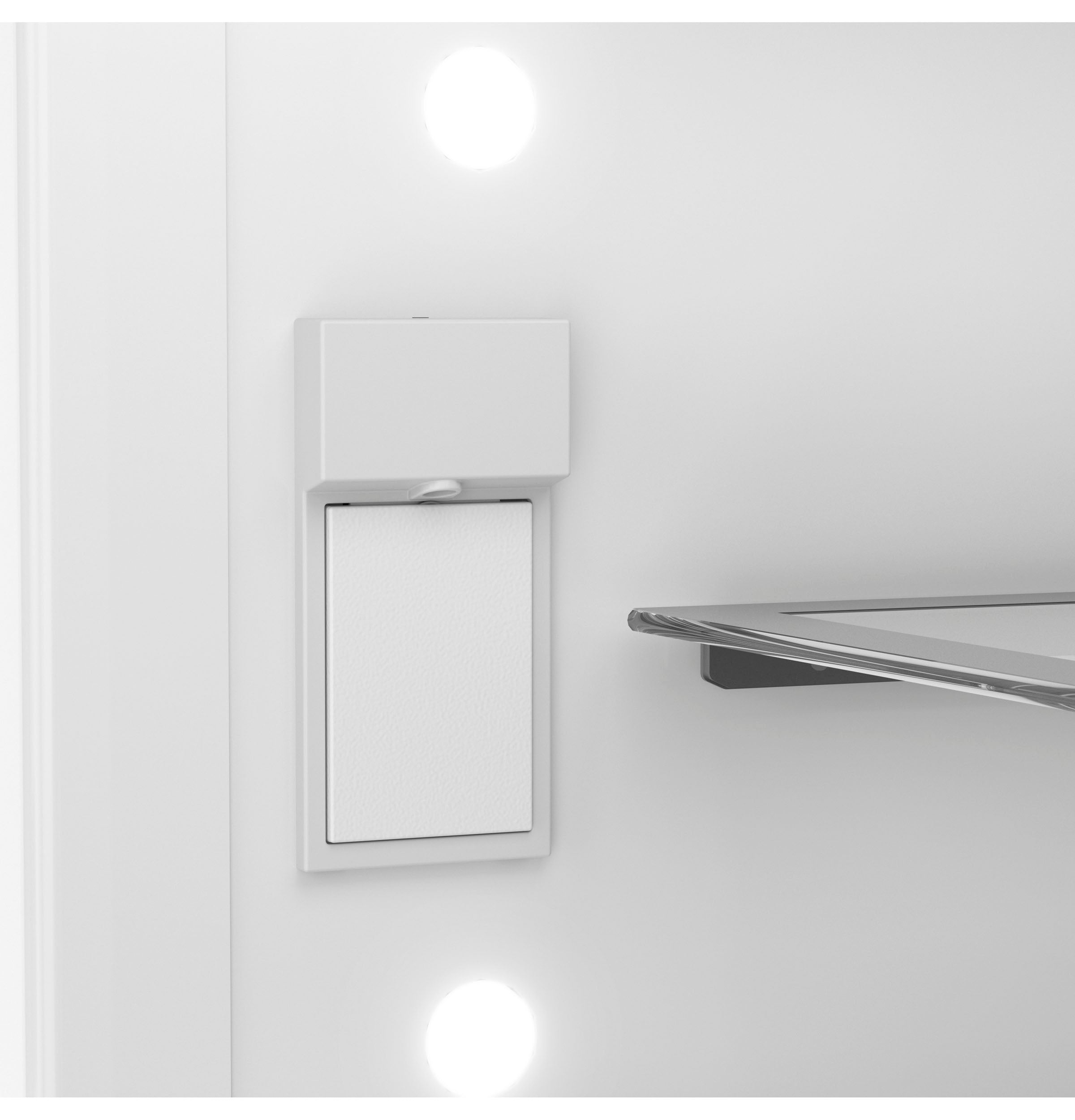

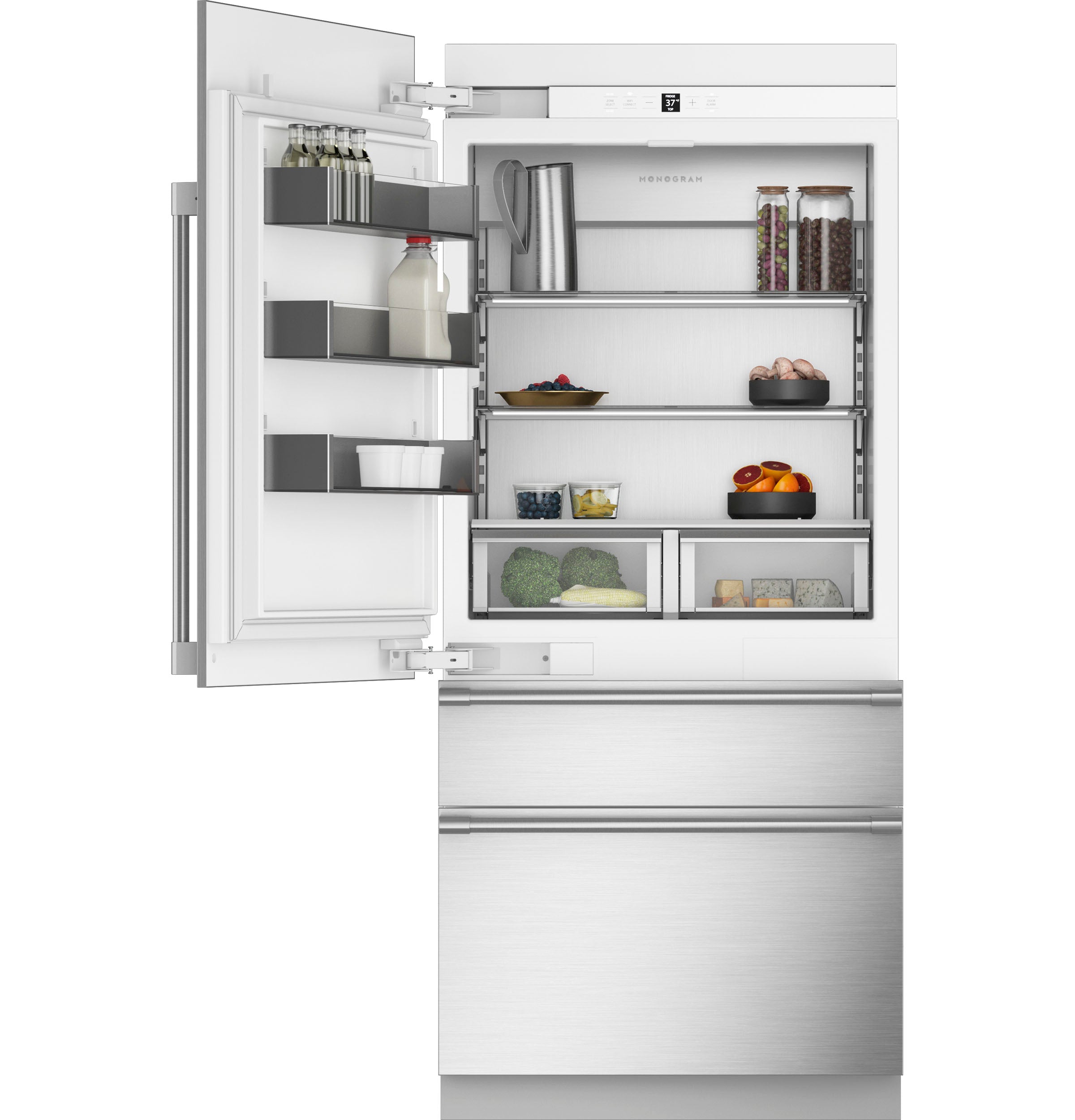

Refrigerator with Ramp-Up LED Interior Shelves
Exceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contents
| Feature | Description |
|---|---|
| Bottom Drawer | Metal Interior with Mat, One Adjustable Divider, Yes, Freezer w/IM |
| Configuration | Full Door and Double Drawer |

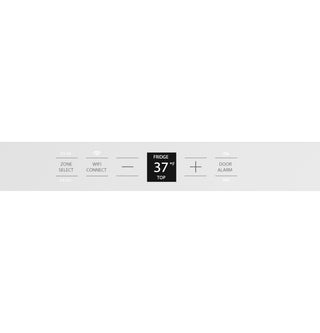

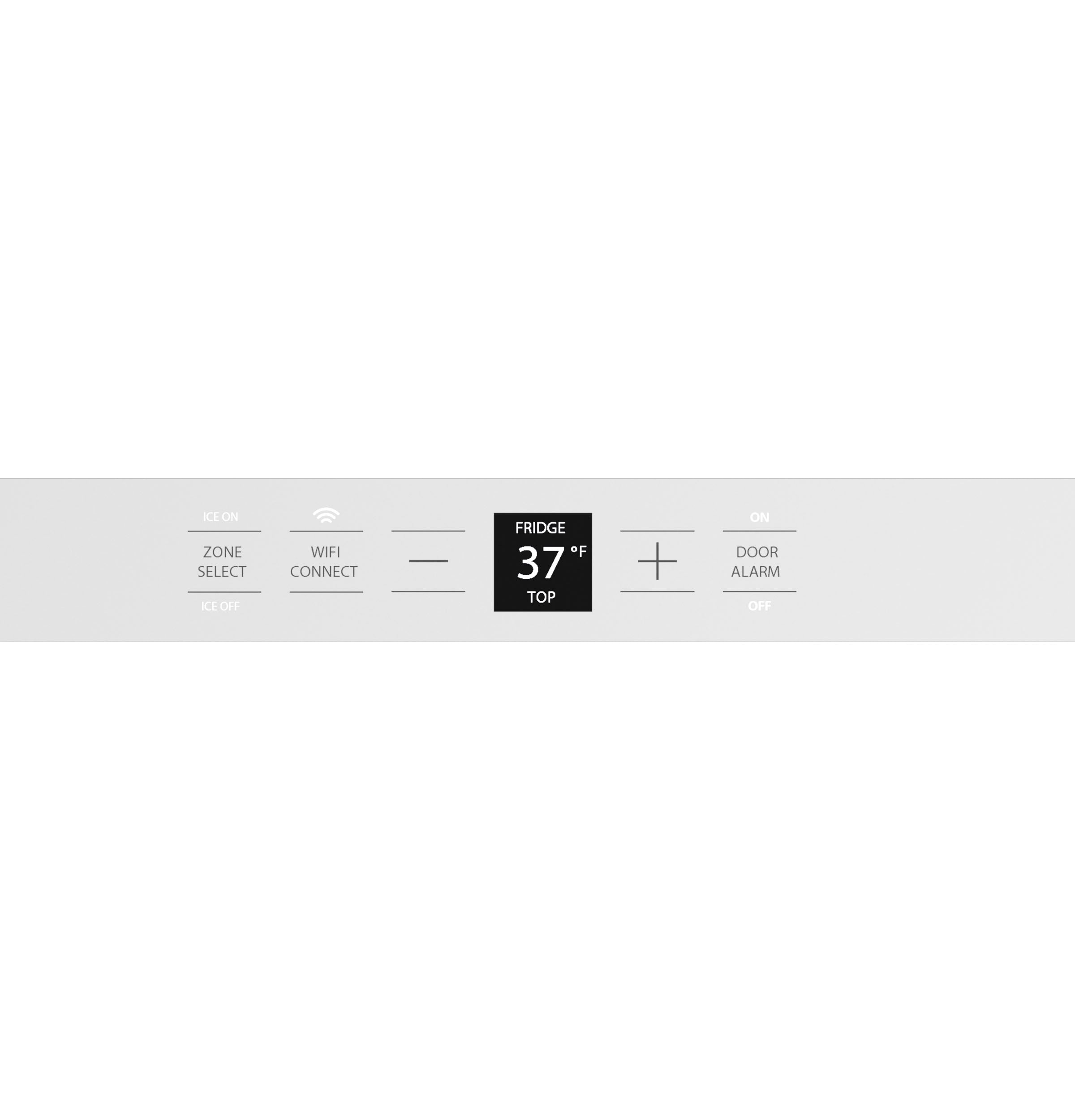

| Control Type | Integrated, Upfront Capacitance Touch Controls |
| Custom Panel Ready | Integrated Panels |
| Defrost Type | Automatic Defrost |
| Dispenser | Internal Water |
| Door Alarm | Yes |
| Exterior Style | Built-In |
| Filter Change Indicator | Display water filter status @ 90% usage |

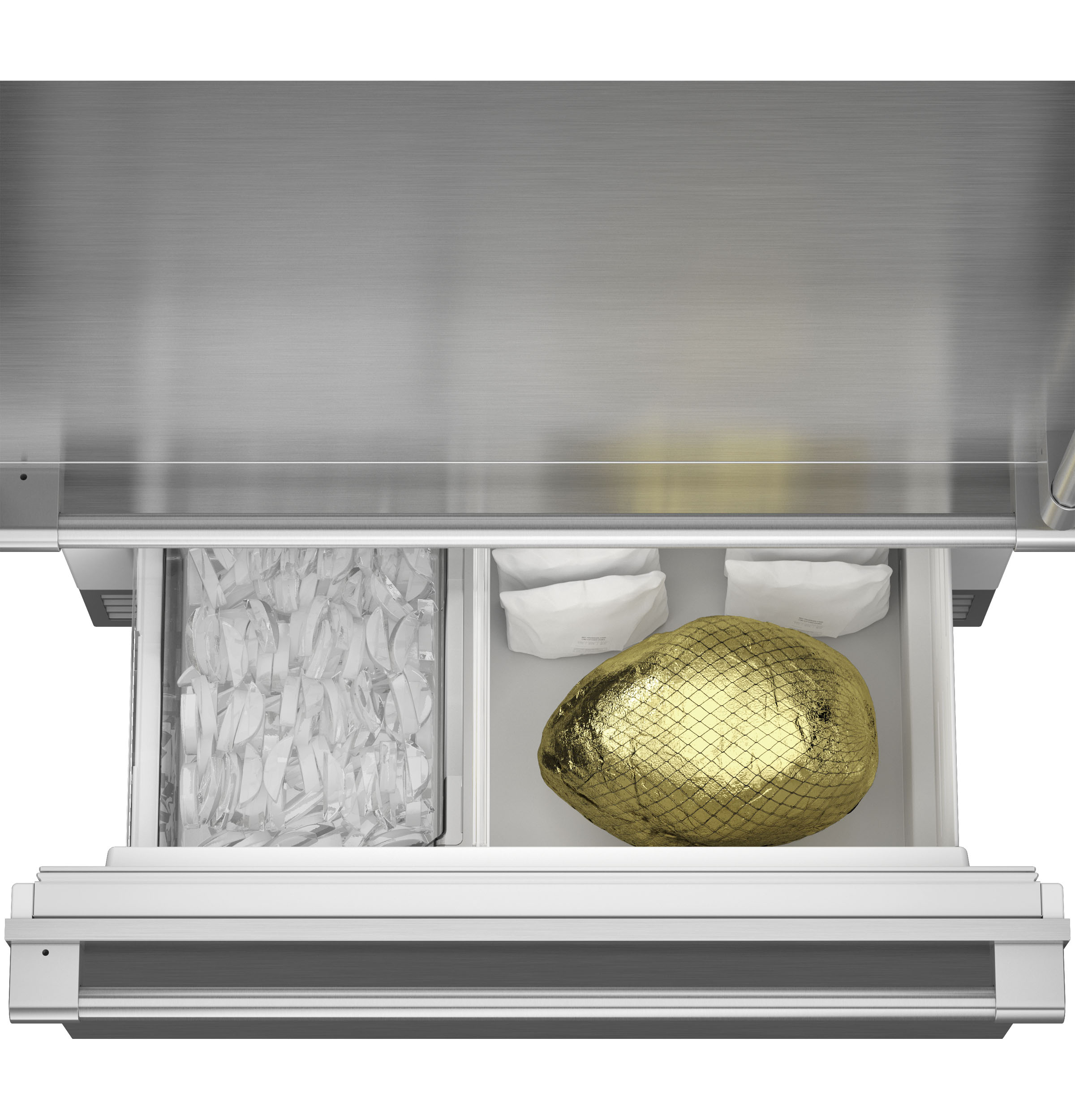

| Freezer Features | Freezer Drawer with Full Extension Slides, Soft-Close |
| Fresh Food Cabinet Drawers | 2 Half-Width Adjustable Humidity Drawers, Full-Extension Soft-Close Slides |
| Fresh Food Cabinet Shelf Features | Lighted Glass Shelves |
| Fresh Food Cabinet Shelves | 2 Full-Width, Spill-Resistant |
| Fresh Food Door Bins | 3 Full-Width |
| Fresh Food Door Features | 3 Adjustable Bins, Full-Width |
| Icemaker | Factory-Installed |
| Interior Lighting | LED |
| Leveling System | 4 Point (2 adjustable back rollers, 2 adjustable front legs) |
| Middle Drawer | 6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce, Yes, Convertible; Metal Interior with Mat |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
| Product Type | Bottom Freezer Refrigerator, Built-In Refrigerator |
| Refrigerant Type | R600a |
| Sabbath Mode | Yes |
| Temperature Management Features | Dual Evaporator, Independent Temperature Controls, Multi-Shelf Air Management Tower |

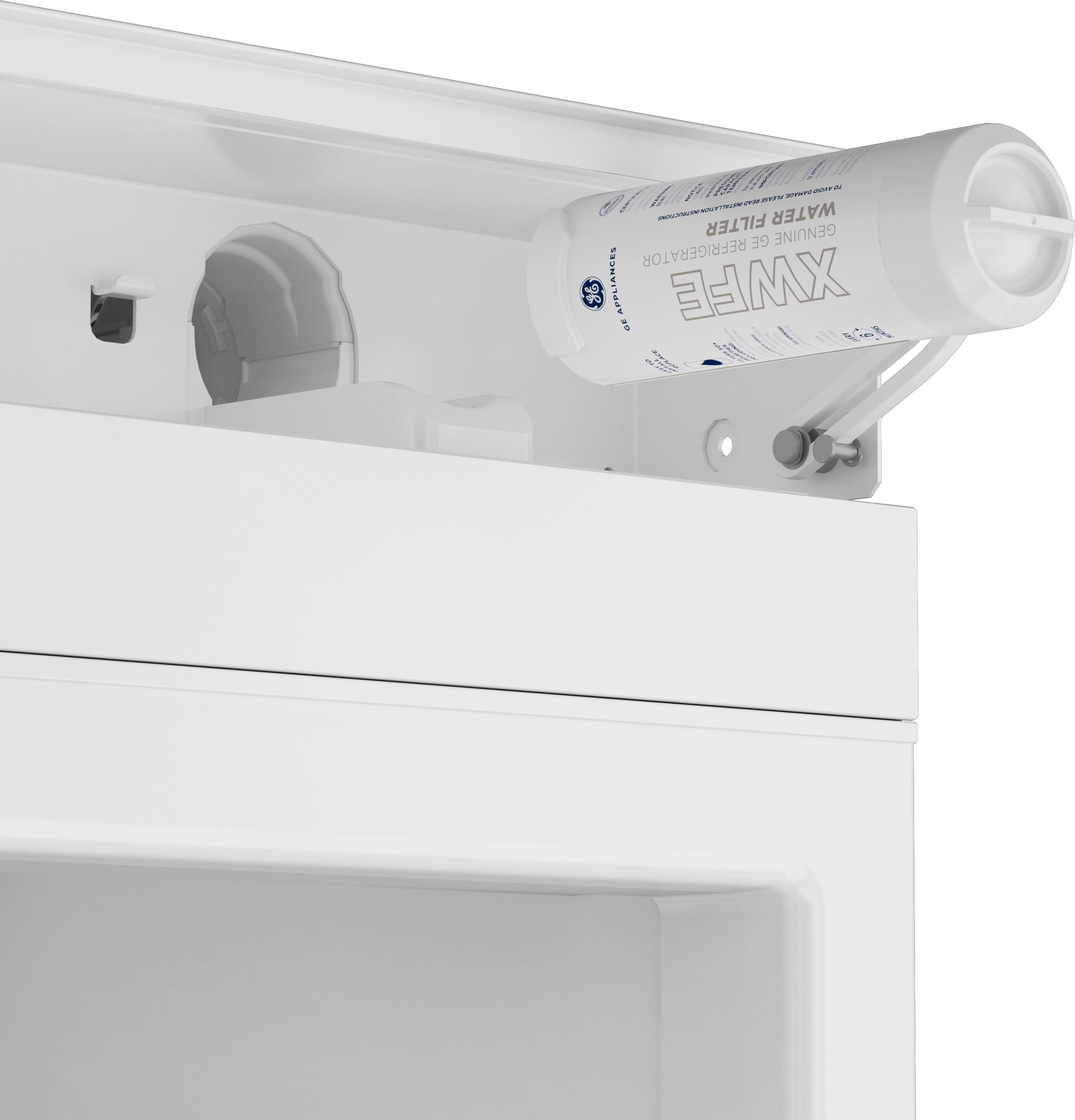

| Water Filtration | GE Water Filtration (XWFE Filter) |
| WiFi Connect | Built-In |
| Feature | Description |
|---|---|
| Adjustable Rollers | 2 |
| Coil-Free Back | Yes |
| Color Appearance | Custom Panel and Handle Required |
| Design Style | Custom Panel & Handles |
| Door Stops | 90 Degree and 115 Degree |
| Door Style | Solid Door |
| Door Swing | Hinges on Left |
| Handle Purchased Separately | Requires Statement Handle Kit (ZKSB3H3PVSS) or Minimalist Handle Kit (ZKSB3H3CVSS) |
| Hidden Door Hinge(s) | Yes |
| Installation | Fully Integrated Installation |
| Panel Capability | SS Door Panel Kit ZK3SN369VLH, ZK3SN364VRH |
| Feature | Description |
|---|---|
| Convertible Drawer Capacity | 2.91 |
| Freezer Capacity | 3.45 |
| Fresh Food Capacity | 13.71 |
| Total Capacity (cubic feet) | 20.100000 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 621 inches |
| Net Weight | 586 inches |
| Overall Depth | 24.75 inches |
| Overall Height | 83.5 inches |
| Overall Width | 35.75 inches |
| Feature | Description |
|---|---|
| Volts/Hertz/Amps | 115V; 60Hz; 20A |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 2-year entire appliance, Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 12-year sealed refrigerating system parts, Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
