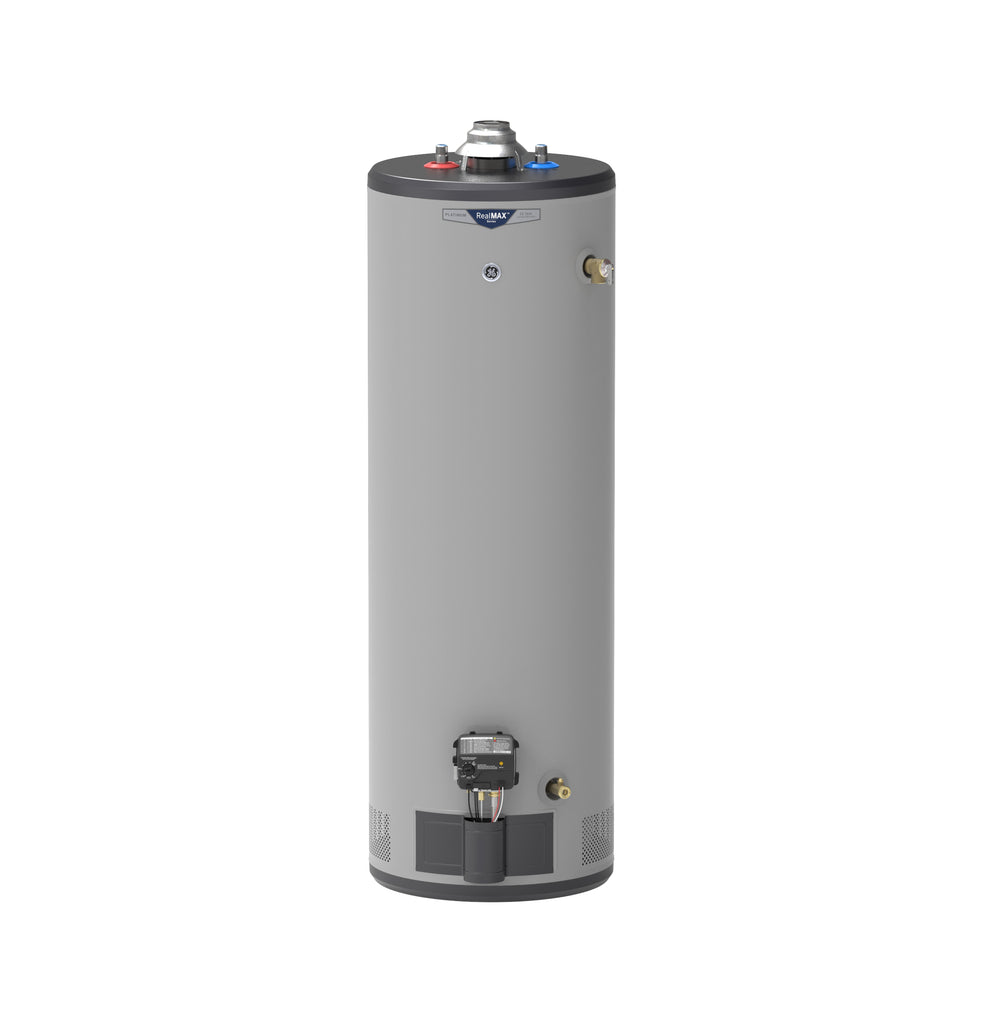

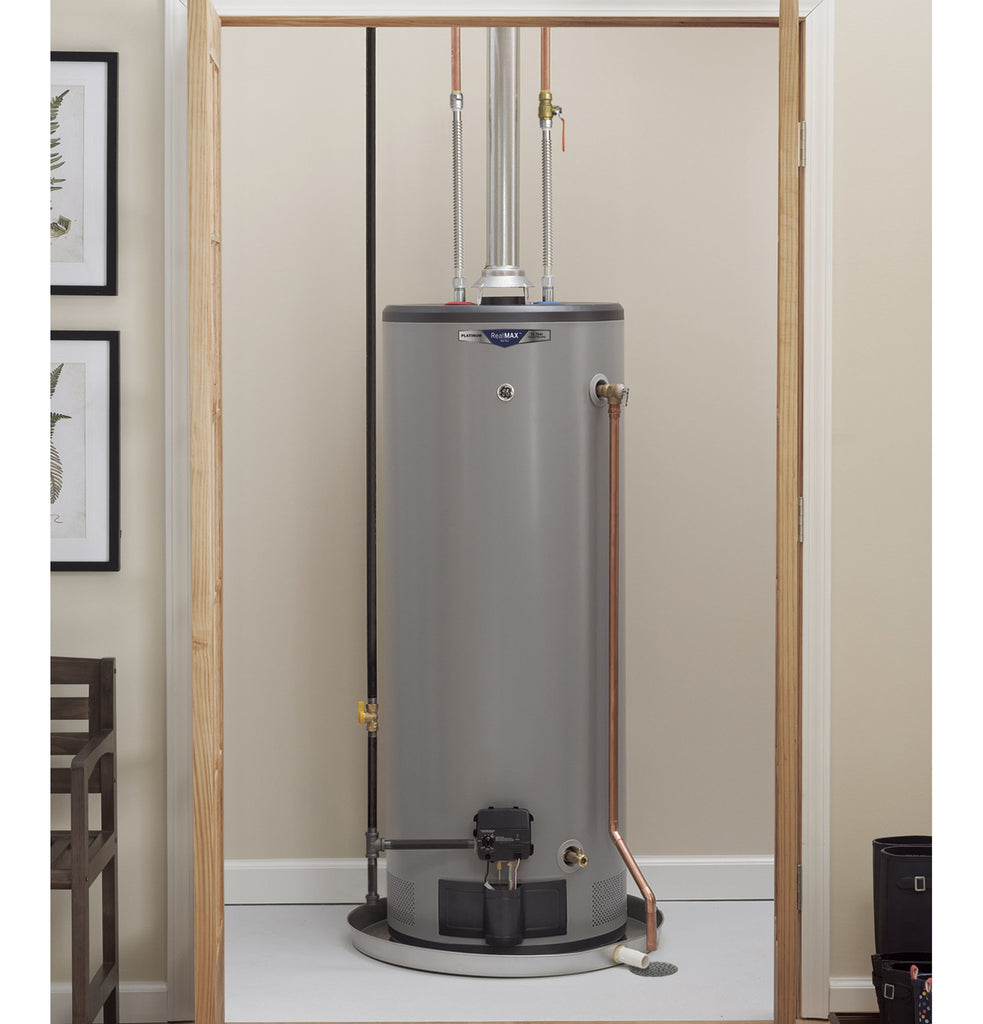

GE RealMAX Platinum 40-Gallon Tall Natural Gas Atmospheric Water Heater
Out of stock : 0
GG40T12BXR
$1,249.00
FEATURES FVIR Safety System Prevents accidental ignition of flammable vapors Vent Atmospheric Controls LED Indicator UEF .64 Temp & Pressure Relief Valve Yes Height Description Tall Fuel Type Natural Gas (factory set) Pilot Light Window / Button Yes Configuration Tall Drain Valve Type Brass Product Type Gas Family Size 2-5...
• Own this product? See Maintenance & Care
Household Size
Provide hot water for the whole family of 2 to 4 persons

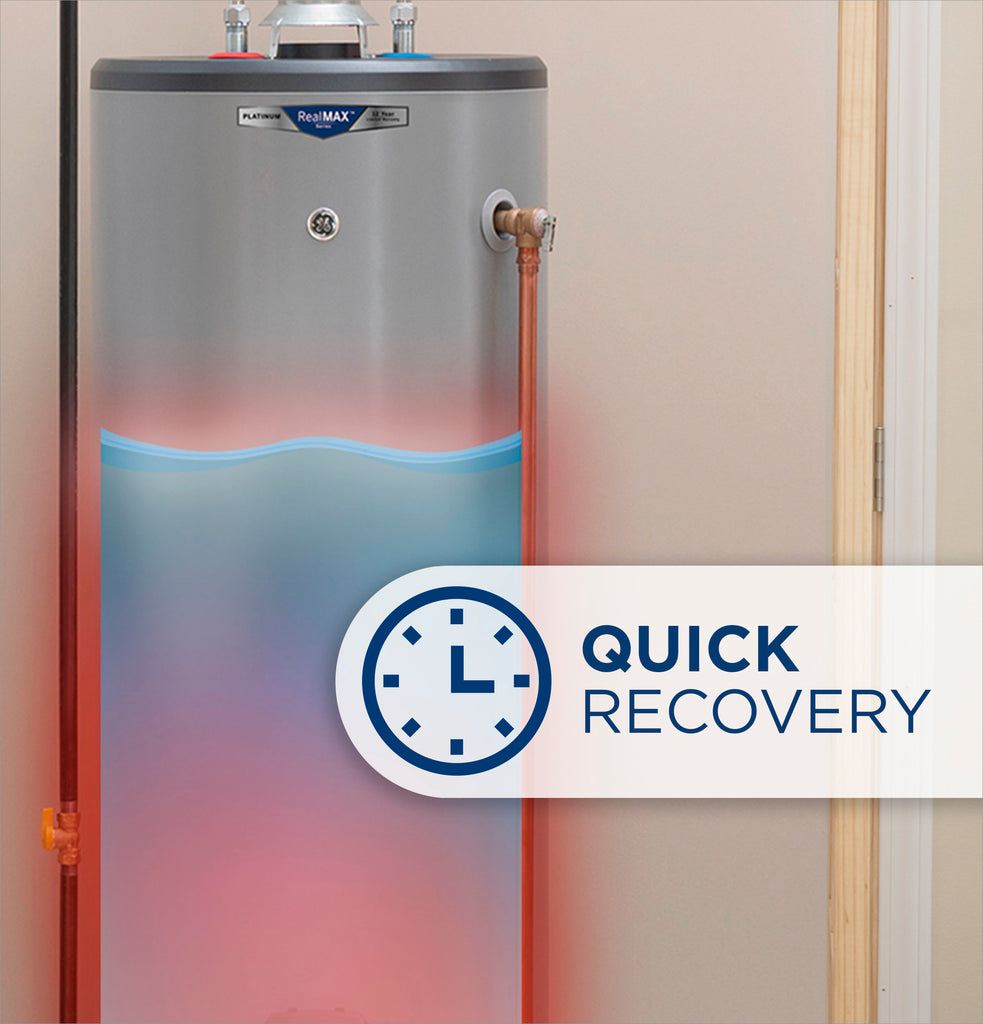

Quick Recovery
Quickly replenish hot water with a max-performance 40K burner

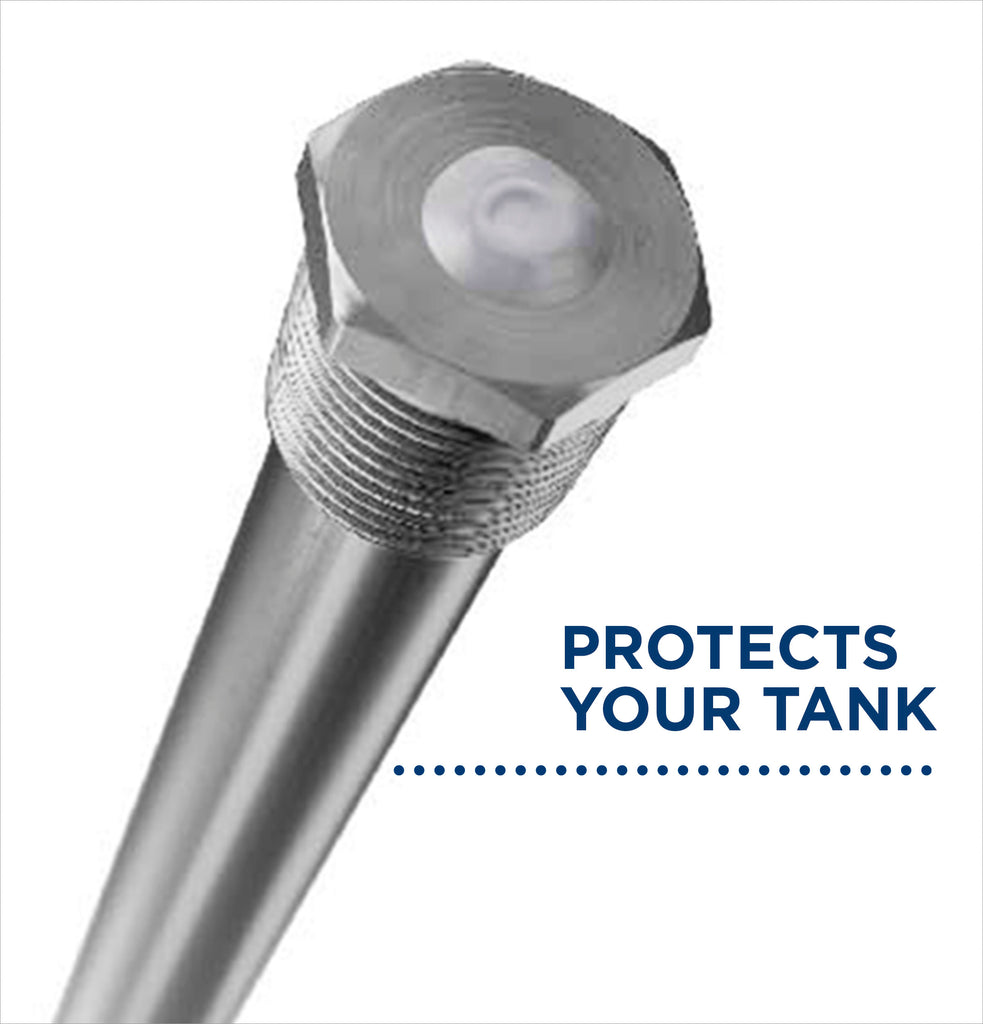

Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank
SmartShield a,,C/ Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected

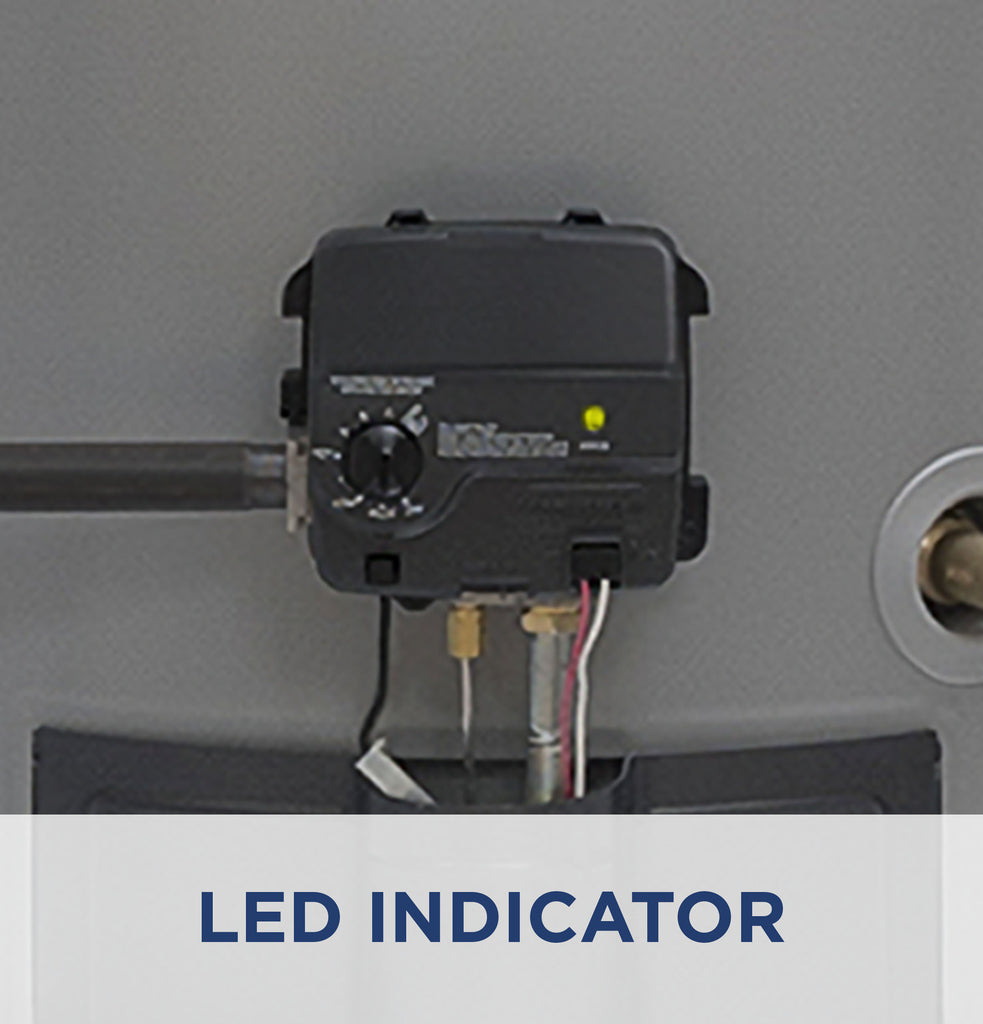

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator

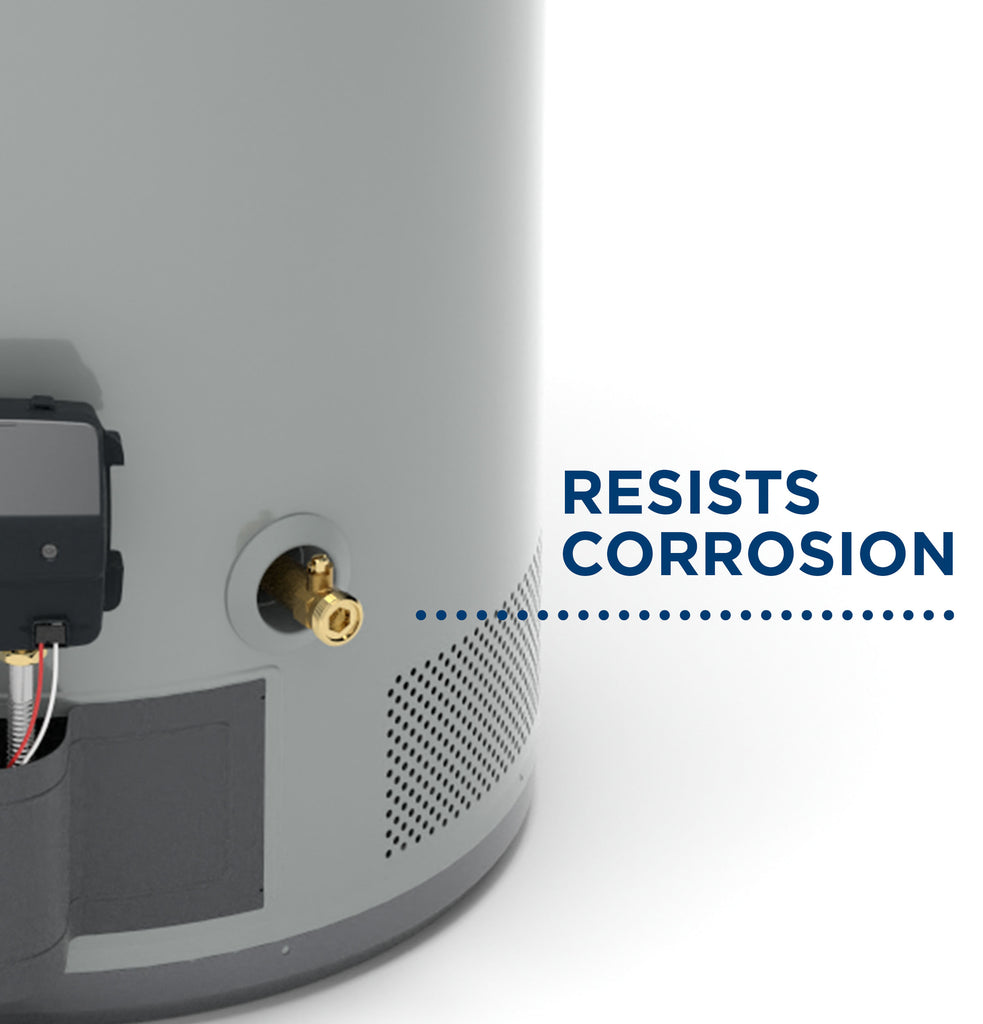

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
| Feature | Description |
|---|---|
| Altitude Rating | 10100 |
| Anode Rod | Magnesium |
| Bin Testing | High |
| Configuration | Tall |
| Controls | LED Indicator |
| Drain Valve Type | Brass |
| Family Size | 2-5 People |
| Fuel Type | Natural Gas (factory set) |
| FVIR Safety System | Prevents accidental ignition of flammable vapors |
| Gas Valve | Self Powered |
| Height Description | Tall |
| Overheat Protection | Dry Burning Protection |
| Pilot Light Window / Button | Yes |
| Product Type | Gas |
| Temp & Pressure Relief Valve | Yes |
| Temperature Setting | 45-160Adeg F Range |
| UEF | .64 |
| Vent | Atmospheric |
| Water Connection Location | Top |
| Feature | Description |
|---|---|
| Color Appearance | Gray |
| Feature | Description |
|---|---|

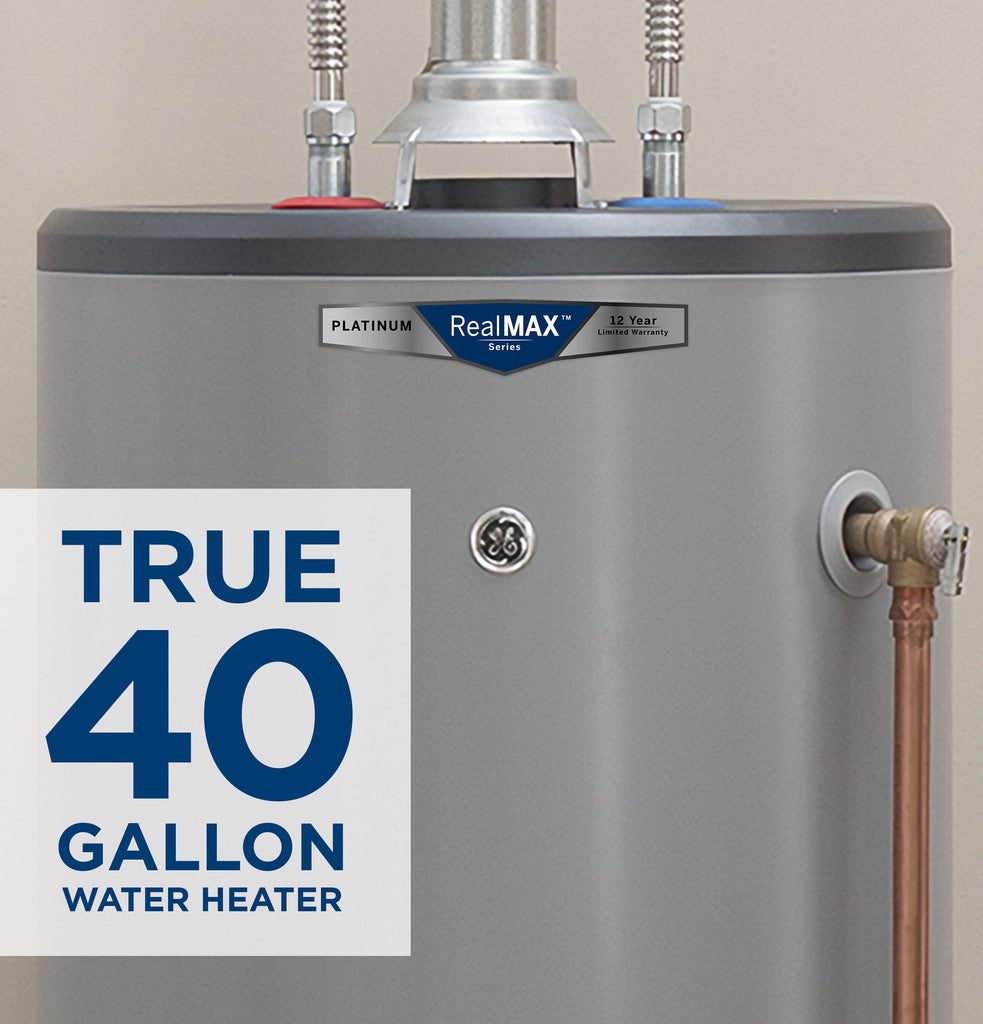

| Unit Capacity | 40 Gallons |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 147 pounds |
| Connection Sizes - Hot Water Outlet (MNPT) | 3 inches |
| Connection Sizes - Water Inlet (MNPT) | 3 inches |
| Height to Gas Control | 11.25 inches |
| Net Weight | 140 pounds |
| Overall Depth | 20.0 inches |
| Overall Height | 61.88 inches |
| Overall Width | 20.0 inches |
| Product Diameter | 20 inches |
| Product Height (to top of unit) | 58.5 inches |
| Product Height (to top of water inlet/outlet connections) | 60 inches |
| Vent Size | 3 inches |
| Feature | Description |
|---|---|
| Burner BTU Size (k) | 40 |
| First Hour Delivery GPH | 83 |
| Feature | Description |
|---|---|
| Labor Warranty | 1-year limited |
| Parts Warranty | 12-year limited |
| Warranty Notes | See written warranty for full details |
