GE Profile™ GEOSPRING™ Smart Hybrid Heat Pump Water Heater 50-gallon - 120V - FlexCapacity
• Own this product? See Maintenance & Care
Up to 4.7x More Energy Efficiency
Connected CapabilitiesAmazon Alexa, Google Home
FlexCAPACITY
Connection Sizes - Water Inlet (MNPT)3/4"
Homeowner Savings
Qualify for up to $2,000 in Inflation Reduction Act (IRA) tax credits, $1,750 in instant rebates, and $550 in annual energy savings. Plus, local utility rebates may be available. Start today and save on electric bill costs.
Total Control with SmartHQa,,C/

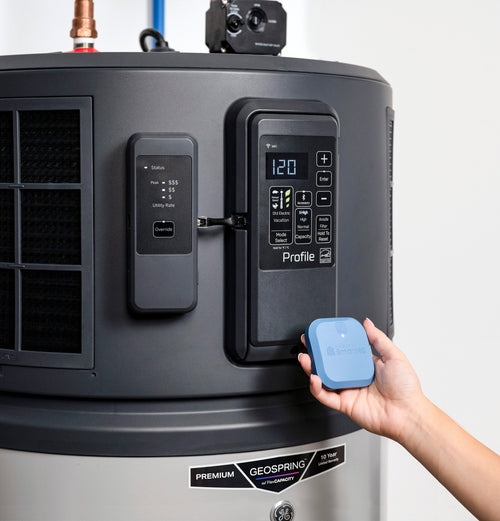

Wireless Leak Detection with Automatic Water Shutoff

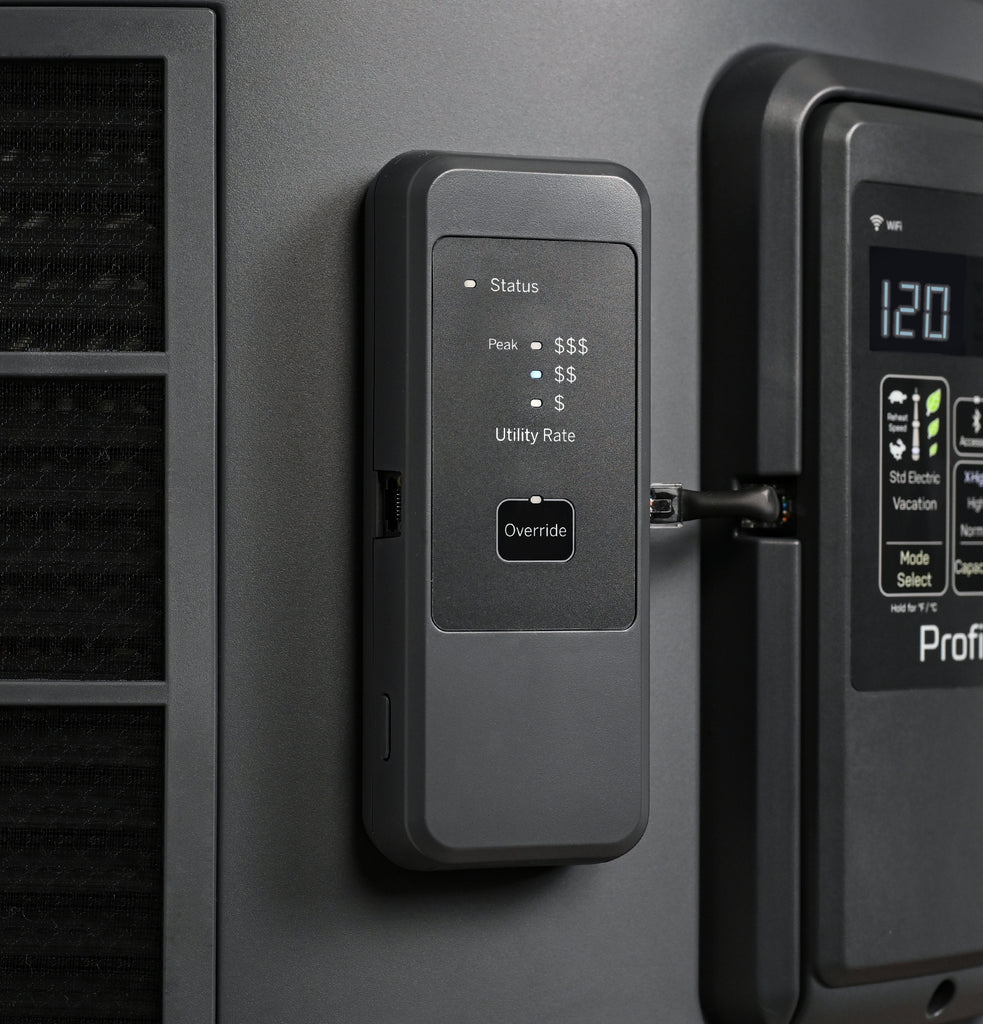

Dynamic Demand Response
Lower energy bills made simple. GEOSPRINGa,,C/ water heaters with built-in EcoPort demand response capabilities adjust energy use during high-demand periods, helping you save when rates are lower. Stay ahead of fluctuating energy costs automatically.
| Feature | Description |
|---|---|
| Anode Rod | Magnesium, Sensing |
| Communication | Yes |
| Connected Capabilities | Amazon Alexa, Google Home |
| Control Type | Electronic, LED, Service Diagnostics Integrated |
| Demand Response Capable | Yes |
| Diagnostic Feedback | Filter, Lock, Standard Electric |
| Drain Valve | Left Side |
| Drain Valve Type | Brass |
| Electronic, Integrated Mixing Valve | Yes |
| Fuel Type | Electric |
| Operating Modes | Heat Pump, High Demand/Boost, Hybrid (Default Mode), Standard Electric |
| Power Cord Length | 6'' 3-prong |
| Product Type | Electric |
| Renewable Air Filter | Top of Unit |
| Sensor | Leak Sensor Included (SPLK10N01A) |
| Temp & Pressure Relief Valve | Right Side |
| Temperature Setting | 100-140Adeg F Range |
| Temperature Setting Factory Default | 120Adeg F |
| UEF | 3.1 |
| Water Connection Location | Top |
| WiFi Connect | Built-In |
| Feature | Description |
|---|---|
| Color Appearance | Gray |
| Installation | Free-Standing |
| Feature | Description |
|---|---|
| Unit Capacity | 50 Gallons |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 195 inches |
| Connection Sizes - Hot Water Outlet (MNPT) | 3 inches |
| Connection Sizes - Water Inlet (MNPT) | 3 inches |
| Net Weight | 179 inches |
| Overall Depth | 24.0 inches |
| Overall Height | 68.25 inches |
| Overall Width | 24.0 inches |
| Product Diameter | 24 inches |
| Product Height (to top of unit) | 66.5 inches |
| Product Height (to top of water inlet/outlet connections) | 68.25 inches |
| Feature | Description |
|---|---|
| Electrical Circuit Required | 120/110VAC 15A, 60HZ or 240/208VAC 20A, 60Hz |
| Electrical Consumption - Lower Element | 3600W at 240VAC, 900W at 120VAC |
| Electrical Consumption - Upper Element | 3600W at 240VAC, 900W at 120VAC |
| First Hour Rate (FHR) | 51 Gallons |
| Operating Water Pressure | 20-125 PSI (30-80 PSI recommended) |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 10 year entire appliance |
| Warranty Notes | See written warranty for full details |
