GE Profile™ GEOSPRING™ Smart Hybrid Heat Pump Water Heater 40-gallon - 240V - FlexCapacity
• Own this product? See Maintenance & Care
Up to 4.7x More Energy Efficiency
Connected CapabilitiesAmazon Alexa, Google Home
FlexCAPACITY
FlexCAPACITYaEURtms electronic mixing valve delivers precise temperature control by blending hot and cold water at the point of exit. Get up to 60% more hot water. Discover how to get more hot water. (*vs comparable water heaters without mixing valve at 120AdegF set and 58AdegF water temperature).
Homeowner Savings
Qualify for up to $2,000 in Inflation Reduction Act (IRA) tax credits, $1,750 in instant rebates, and $550 in annual energy savings. Plus, local utility rebates may be available. Start today and save on electric bill costs.
Total Control with SmartHQa,,C/

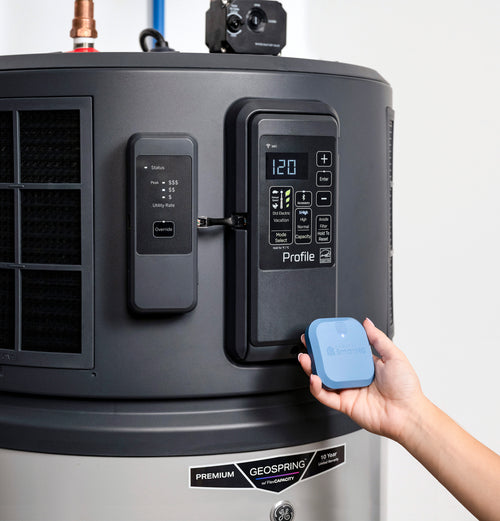

Wireless Leak Detection with Automatic Water Shutoff
Dynamic Demand Response
Lower energy bills made simple. GEOSPRINGa,,C/ water heaters with built-in EcoPort demand response capabilities adjust energy use during high-demand periods, helping you save when rates are lower. Stay ahead of fluctuating energy costs automatically.
| Feature | Description |
|---|---|
| Anode Rod | Magnesium, Sensing |
| Communication | yes |
| Connected Capabilities | Amazon Alexa, Google Home |
| Control Type | Electronic, LED, Service Diagnostics Integrated |
| Demand Response Capable | Yes |
| Diagnostic Feedback | Filter, Lock, Standard Electric |
| Drain Valve | Left Side |
| Drain Valve Type | Brass |
| Electronic, Integrated Mixing Valve | Yes |
| Fuel Type | Electric |
| Operating Modes | Heat Pump, High Demand/Boost, Hybrid (Default Mode), Standard Electric |
| Product Type | Electric |
| Renewable Air Filter | Top of Unit |
| Sensor | Leak Sensor Included (SPLK10N01A) |
| Temp & Pressure Relief Valve | Right Side |
| Temperature Setting | 100-140Adeg F Range |
| Temperature Setting Factory Default | 120Adeg F |
| UEF | 3.8 |
| Water Connection Location | Top |
| WiFi Connect | Built-In |
| Feature | Description |
|---|---|
| Color Appearance | Gray |
| Installation | Free-Standing |
| Feature | Description |
|---|---|
| Unit Capacity | 40 Gallons |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 194 inches |
| Connection Sizes - Hot Water Outlet (MNPT) | 3 inches |
| Connection Sizes - Water Inlet (MNPT) | 3 inches |
| Net Weight | 165 inches |
| Overall Depth | 24.0 inches |
| Overall Height | 59.5 inches |
| Overall Width | 24.0 inches |
| Product Diameter | 24 inches |
| Product Height (to top of unit) | 57.75 inches |
| Product Height (to top of water inlet/outlet connections) | 59.5 inches |
| Feature | Description |
|---|---|
| Electrical Circuit Required | 240/208VAC 30A, 60Hz |
| Electrical Consumption - Lower Element | 3600W |
| Electrical Consumption - Upper Element | 5500W |
| First Hour Rate (FHR) | 67 Gallons |
| Operating Water Pressure | 20-125 PSI (30-80 PSI recommended) |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 10 year entire appliance |
| Warranty Notes | See written warranty for full details |
