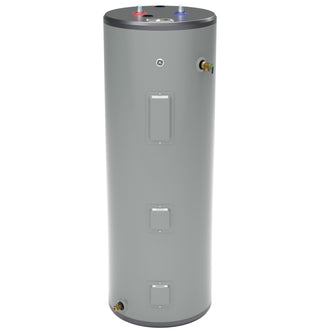

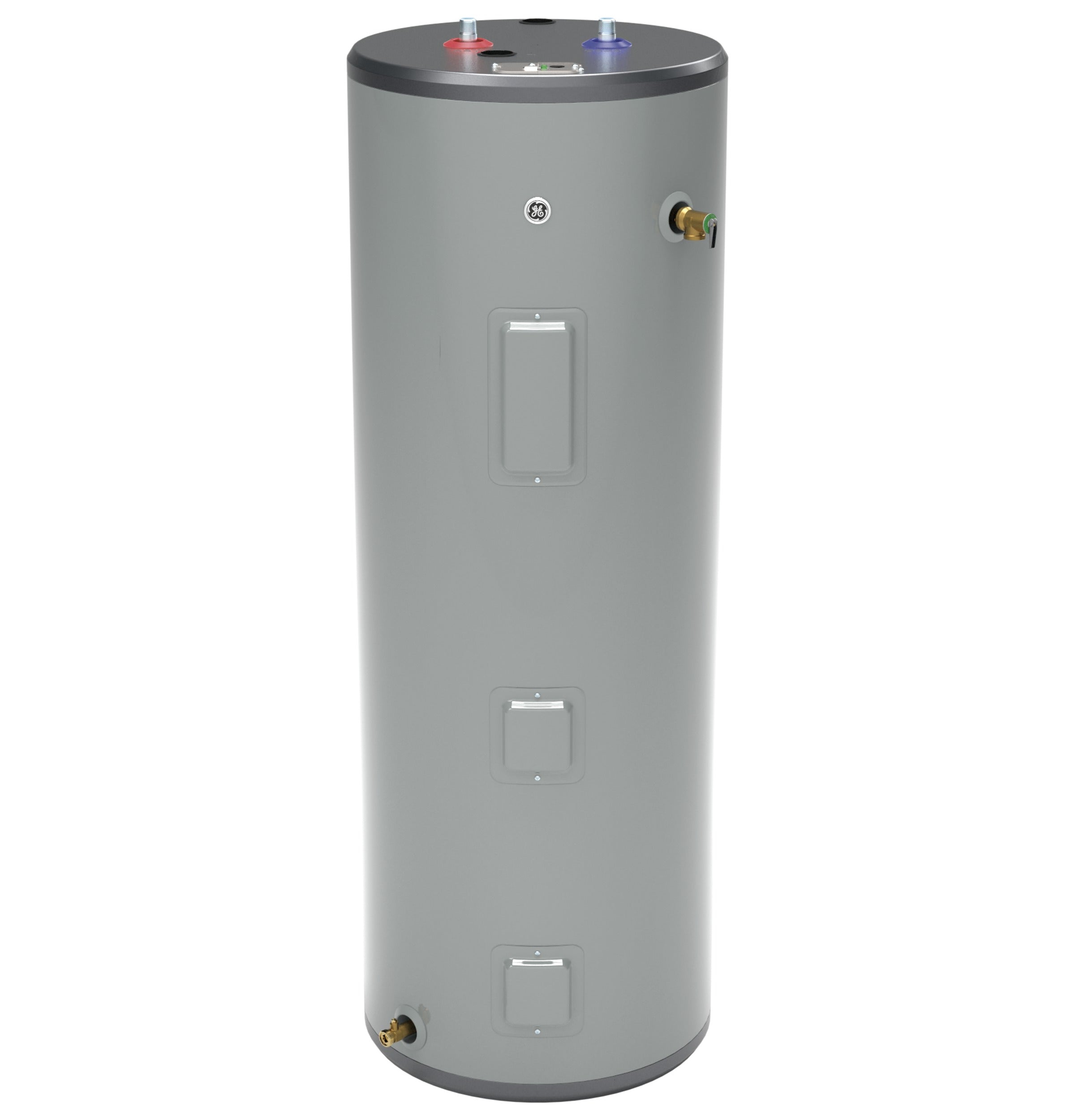

GE® 50 Gallon Tall Electric Water Heater
• Own this product? See Maintenance & Care
![](https://products-salsify.geappliances.com/image/upload/s--G6tIMtIP--/923f280c66f2d17137e3f40c055663af4d97c1c6.jpg)

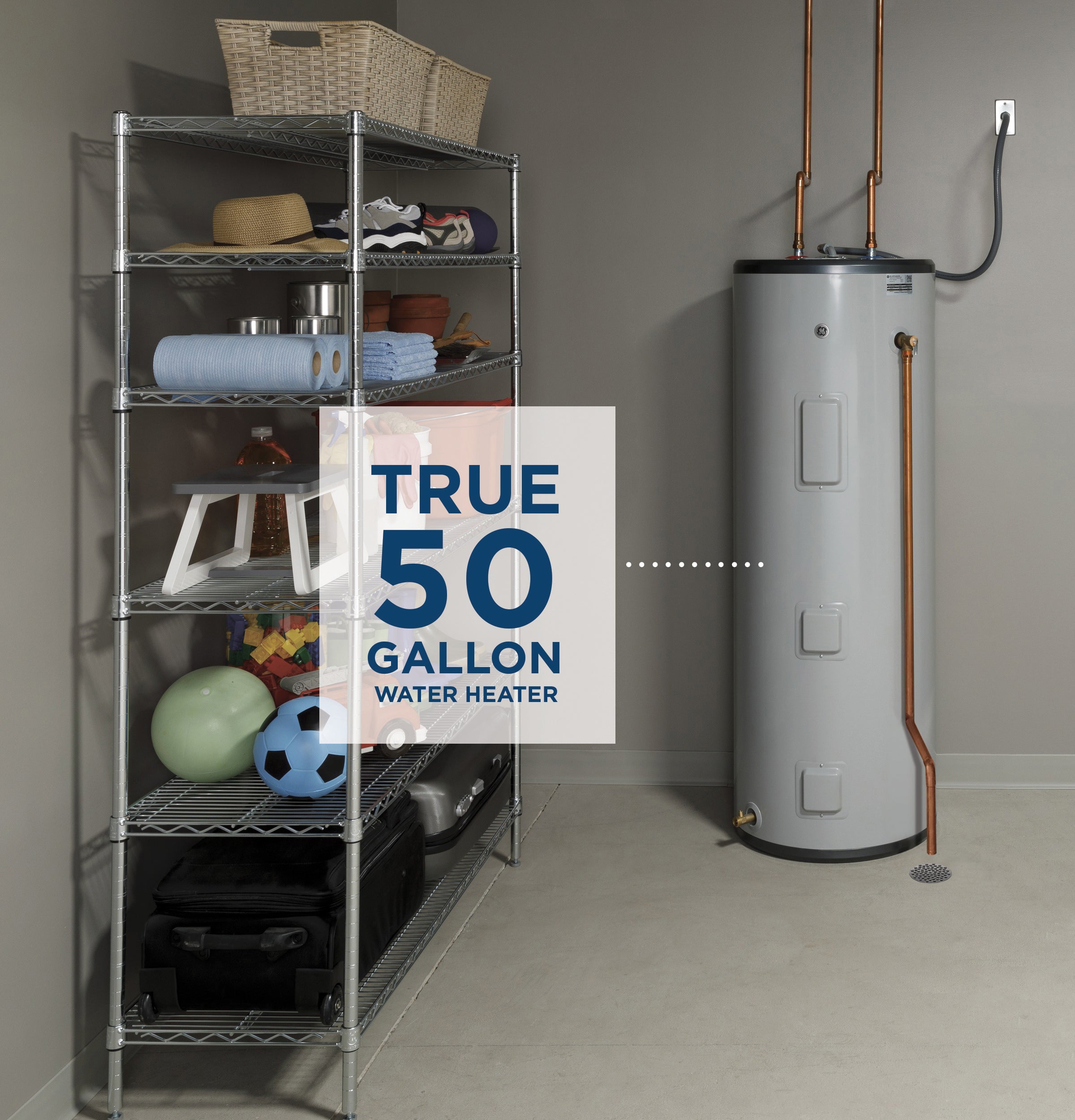

Real Capacity
Get the most hot showers from the only water heater that holds a true 50 gallons of water (Compared to 50 gallon electric steel tank water heaters per DOE rated gallon capacity)
![](https://products-salsify.geappliances.com/image/upload/s--r0mXF1ym--/12107bce53fccdf1a14db3571c1ff499f55adfb4.jpg)
Leading Performance
Live comfortably with this best in class unit that delivers 76 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
![](https://products-salsify.geappliances.com/image/upload/s--ZM8n3PG6--/b08949937805bfc2bc66282d54687c412377ab8e.jpg)
Household Size
Provide hot water for the whole family of 3 to 5 persons
![](https://products-salsify.geappliances.com/image/upload/s--j4EP7fSf--/a9f8733294ec57a338db2005be937ffbc949647e.jpg)
Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
![](https://products-salsify.geappliances.com/image/upload/s---4_xTyYj--/1256cc307e6483e1ef7187ea5f341039d692151f.jpg)
Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion
![](https://products-salsify.geappliances.com/image/upload/s--PHZzKqF8--/ff6abecc094b3fb69f659854a9203343146aff64.jpg)

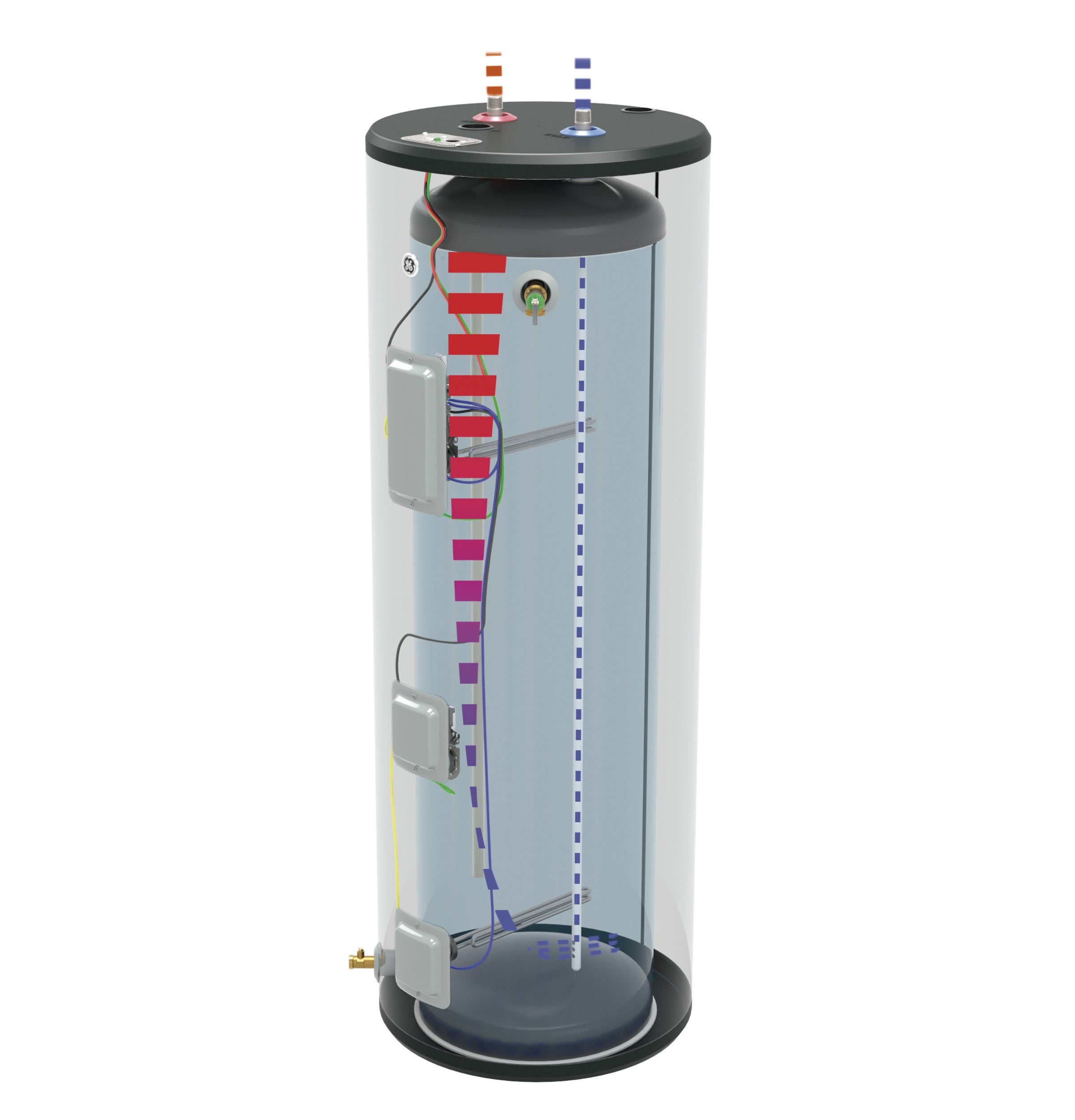

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Feature | Description |
---|---|
Configuration | Tall |
Control Type | Thermostat |

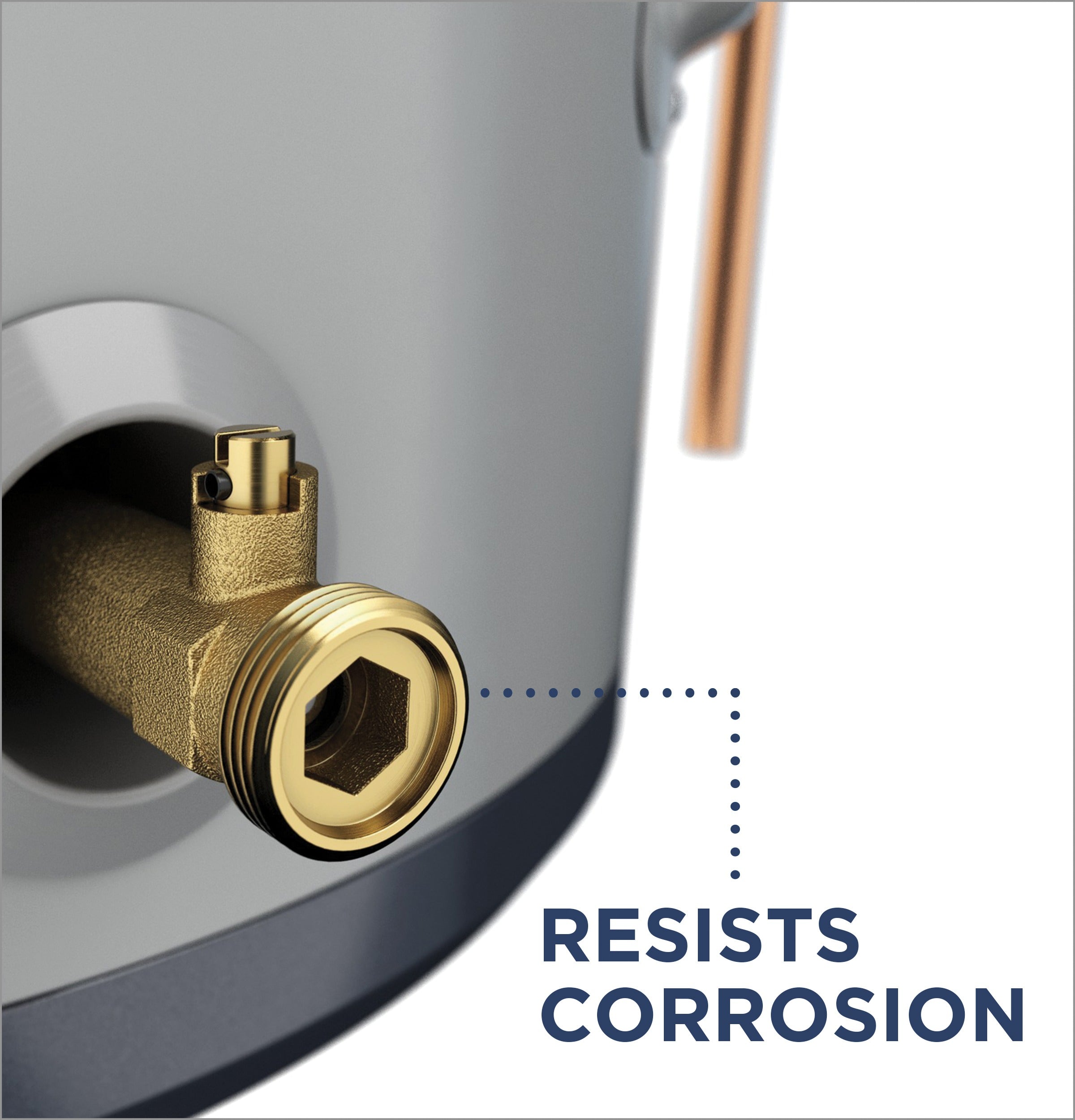

Drain Valve Type | Brass |
Family Size | 3-5 People |
Foam Insulation | Yes |
Fuel Type | Electric |
GPH Recovery @ 90 Degrees F | 25.1 |
Heating Element | Stainless steel |
Height Description | Tall |
Installation Location | Indoor |
Insulation Thickness | 2.75 |
Mobile Home Compatible | No |
Operating Modes | Standard Electric |
Point of Use | No |
Product Type | Electric Thermostat |
Rated Storage Capacity | 50 |
Temp & Pressure Relief Valve | Yes |
Temperature Setting | 90-150Adeg F Range |
Temperature Setting Factory Default | 120Adeg F |

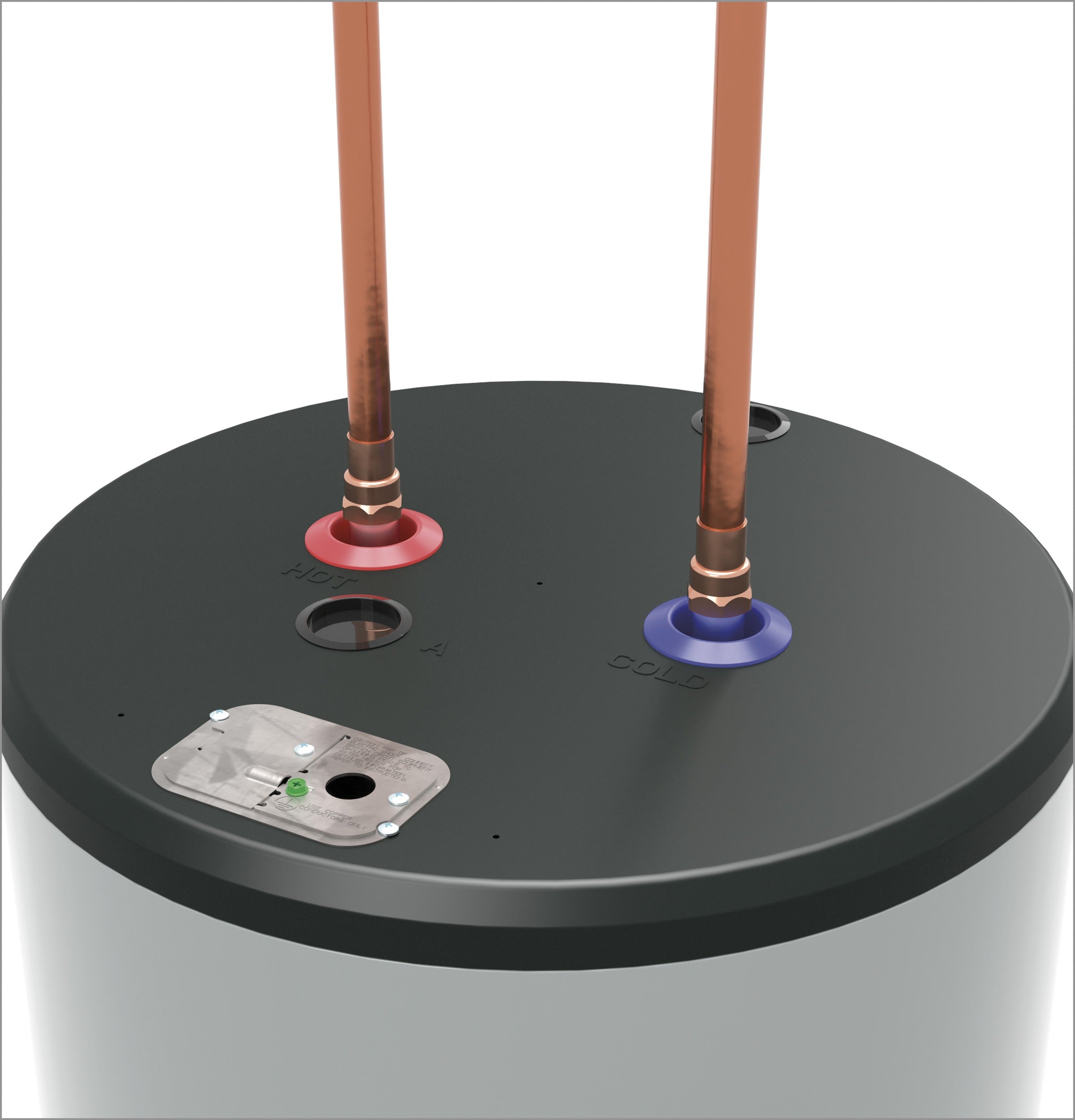

Water Connection Location | Top |
Feature | Description |
---|---|
Color Appearance | Gray |
Feature | Description |
---|---|
Unit Capacity | 50 Gallons |
Feature | Description |
---|---|
Approximate Shipping Weight | 154 inches |
Connection Sizes - Hot Water Outlet (MNPT) | 3 inches |
Connection Sizes - Water Inlet (MNPT) | 3 inches |
Net Weight | 142 inches |
Overall Height | 63.75 inches |
Overall Width | 22.0 inches |
Product Diameter | 22 inches |
Product Height (to top of unit) | 62.25 inches |
Product Height (to top of water inlet/outlet connections) | 63.75 inches |
Feature | Description |
---|---|
Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
Electrical Connection | Direct-Wire |
First Hour Rate (FHR) | 76 Gallons |
Heating - Electric - Heater Watts | 5500/5500 |
Integrated Energy Factor | 0.93 |
Operating Water Pressure | 20-125 PSI |
Voltage (MAX) | 240 |
Volts/Hertz | 240V; 60Hz |
Feature | Description |
---|---|
Labor Warranty | 1-year limited |
Parts Warranty | 10-year limited |
Warranty Notes | See written warranty for full details |
