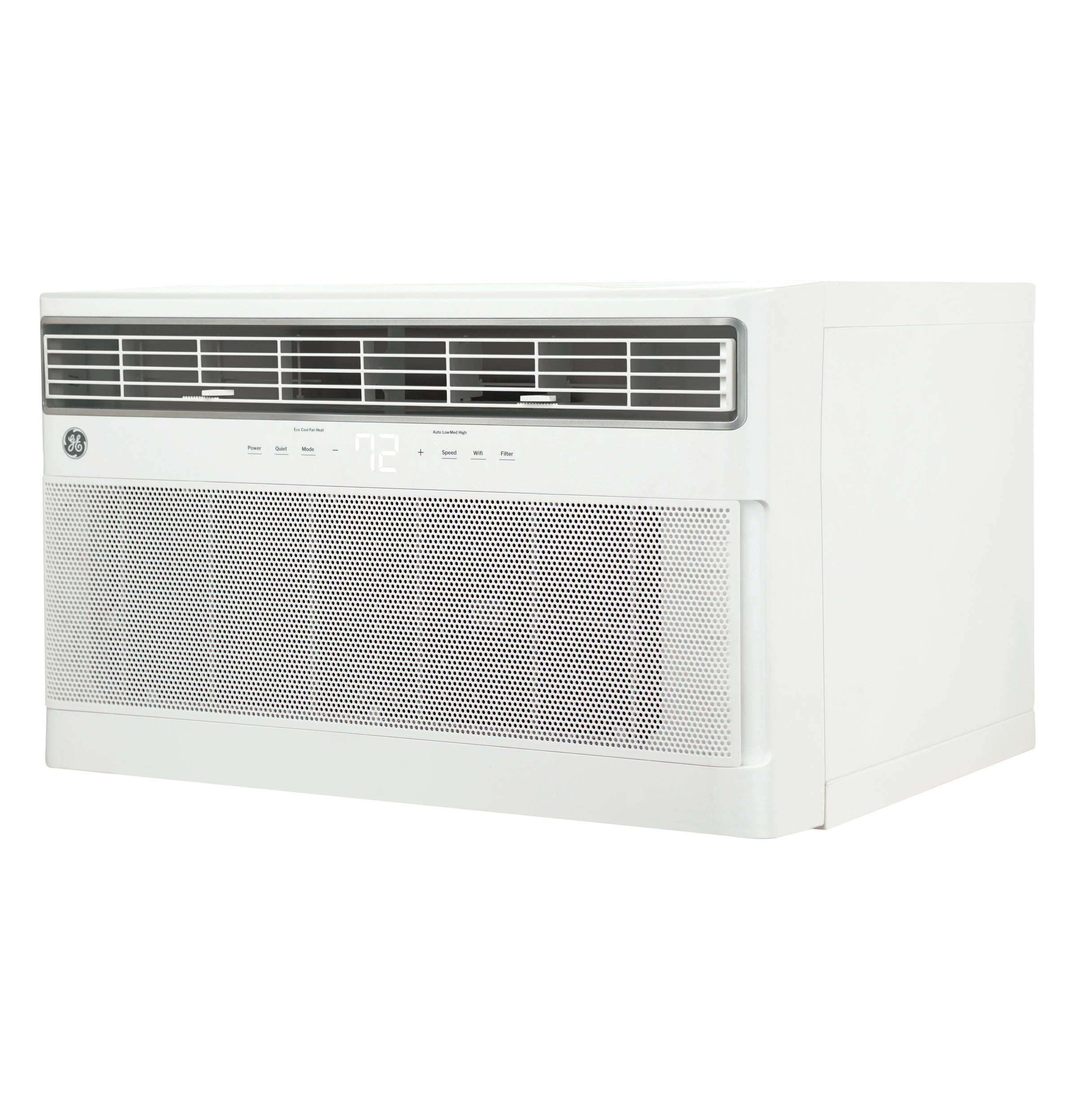

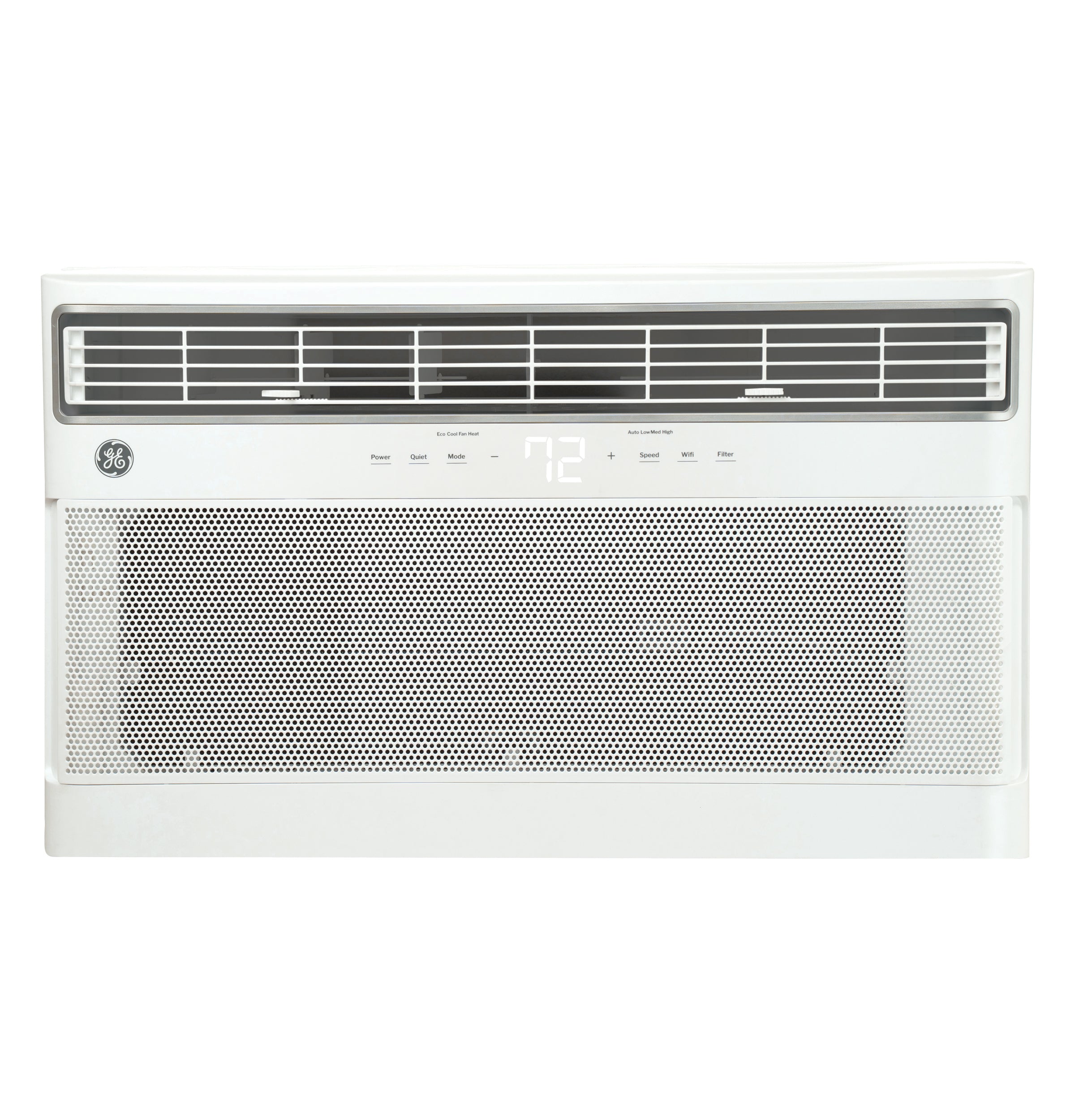

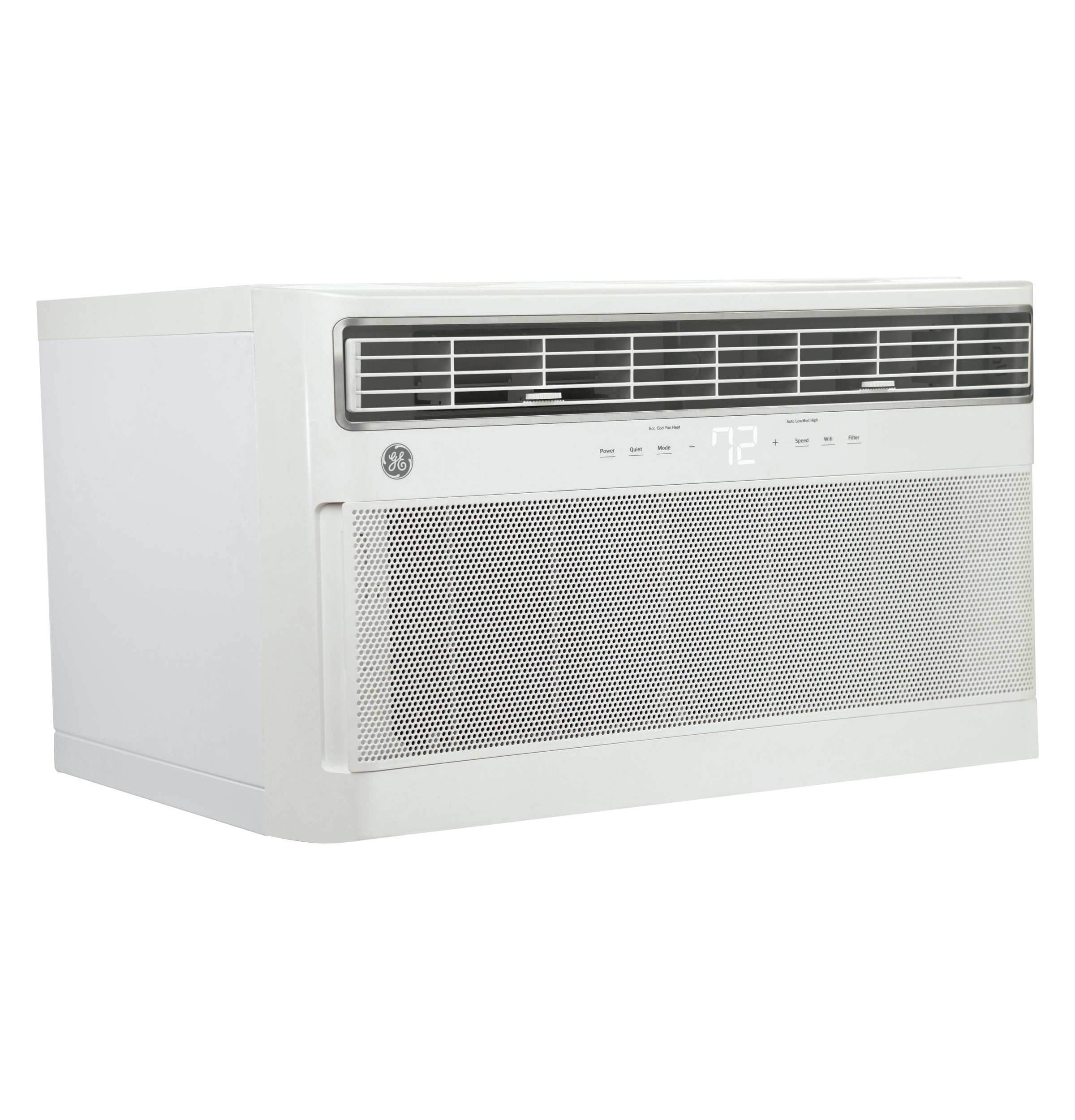

GE® 230/208V Through The Wall AC, Cool Only, Variable Speed
Model: AKCQ12DXXXA
True Universal Fit
Simple slide-in installation is built in for a precise fit into a variety of different wall sleeves. Quickly fit and retrofit with confidence. Trim kit and installation kit included
Sleek Appearance
Cutout Height (in)15.625
Large LCD Display
Intuitive & easy-to-read LCD display controls room air comfort at a single touch
ECO Mode
Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
Dry Mode
Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
6-Way Directional Airflow
Warranty NotesSee written warranty for full details
| Feature | Description |
|---|---|
| Air Discharge | Over / Under |
| Annual Operating Cost | 124 |
| Area to Cool | 450-550 |
| Chassis Type | Fixed |
| Control Type | Electronic |
| Cooling Capacity Range BTU/Hr | TBD |
| Cord Length | 48" |
| Digital Time Temp Display | Yes |
| EER | 9.5 |
| Fan Speed Selections | 3 Cooling, 3 Fan Only, Variable |
| Filter Type | Easy Access, Permanent Mesh, Rigid, Tilt-Out, Washable |
| LCDI / AFCI power cord | LCDI |
| Louver Style | 6-Way |
| Optional Grill | RAG13/RAG13A/RAG14E |
| Plug Type | B / 6-15P |
| Power Cord Length | 6 ft |
| Product Type | Built-In |
| Refrigerant Type | R32 |
| Remote Control | Yes |
| Room Air Conditioner Features | Auto Fan, Batteries Included, Dehumidify Function, Energy Saver, Filter Indicator, Infrared Remote Control, On/Off Timer, Sleep Mode |
| Rotary Compressor | Yes |
| Thermostat Type | Thermistor |
| Vent/Air Exchange Exhaust | Top |
| Feature | Description |
|---|---|
| Color Appearance | White |
| Feature | Description |
|---|---|
| Cooling EER (BTUH / Watt) | 10.5 |
| Dehumidification (pts./hr.) | 3.6 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 94 pounds |
| Cutout Depth (in) | 16.38 inches |
| Cutout Height (in) | 15.63 inches |
| Cutout Width (in) | 26 inches |
| Depth to Louvers | 20.63 inches |
| Net Weight | 92.2 pounds |
| Overall Depth | 19.0 inches |
| Overall Height | 14.56 inches |
| Overall Width | 24.06 inches |
| Feature | Description |
|---|---|
| CEER | 9.5 |
| Cooling - Rated Cooling Amps AHAM | 5.4 |
| Cooling - Watts | 1120 / 1190 |
| Cooling Rated Capacity BTU/Hr | 12,000 Btu |
| Electrical Consumpton Standby | 6 ( kWh/year) |
| Voltage (MAX) | 230.000000 |
| Voltage (MIN) | 208 |
| Voltage/Hertz/Phase | 230-208/60/1 |
| Volts/Hertz | 230V-208V/60Hz |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance, Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
