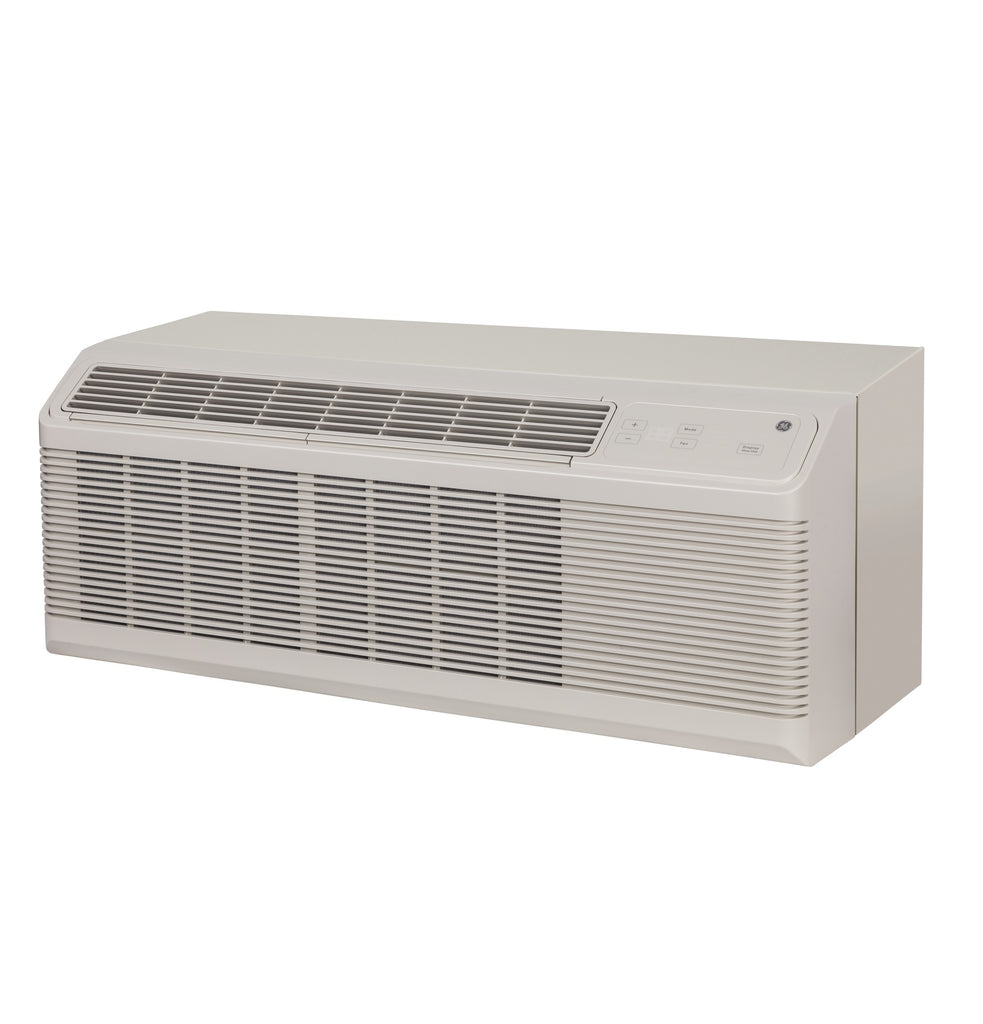

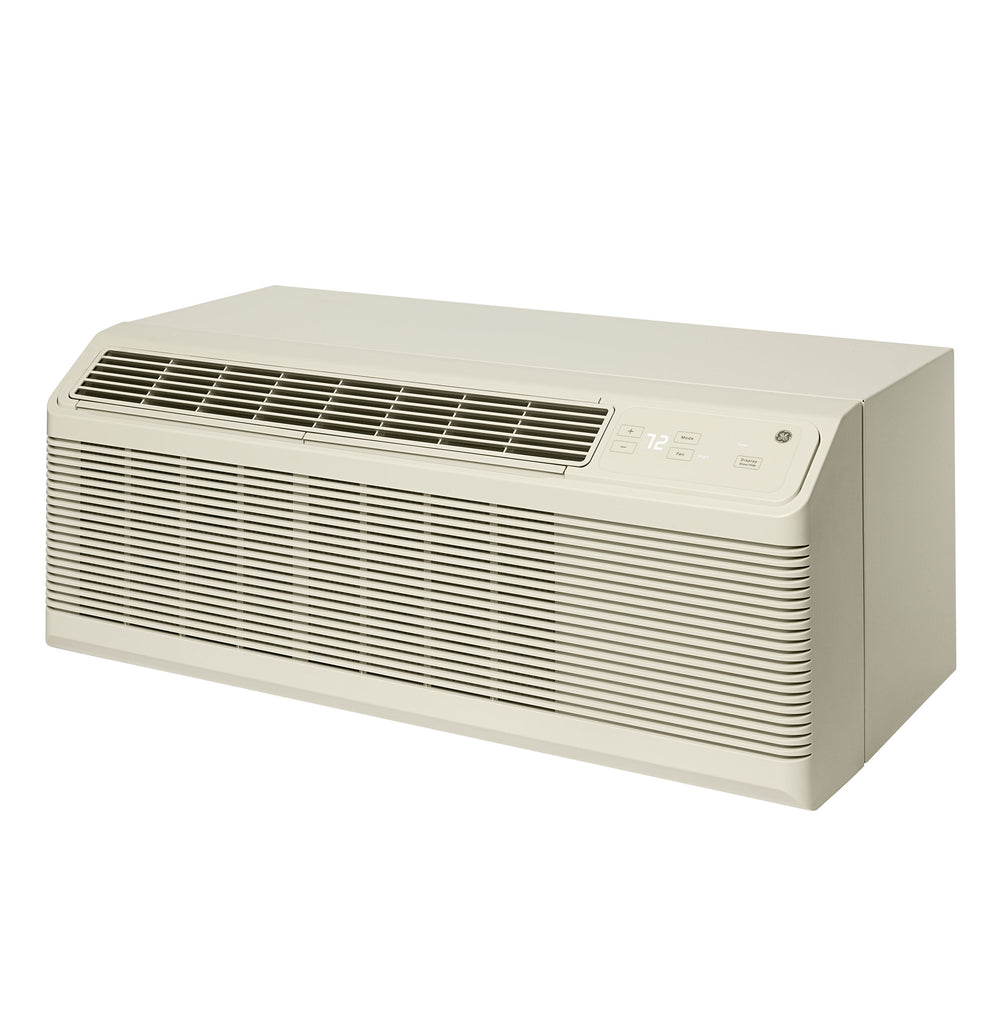

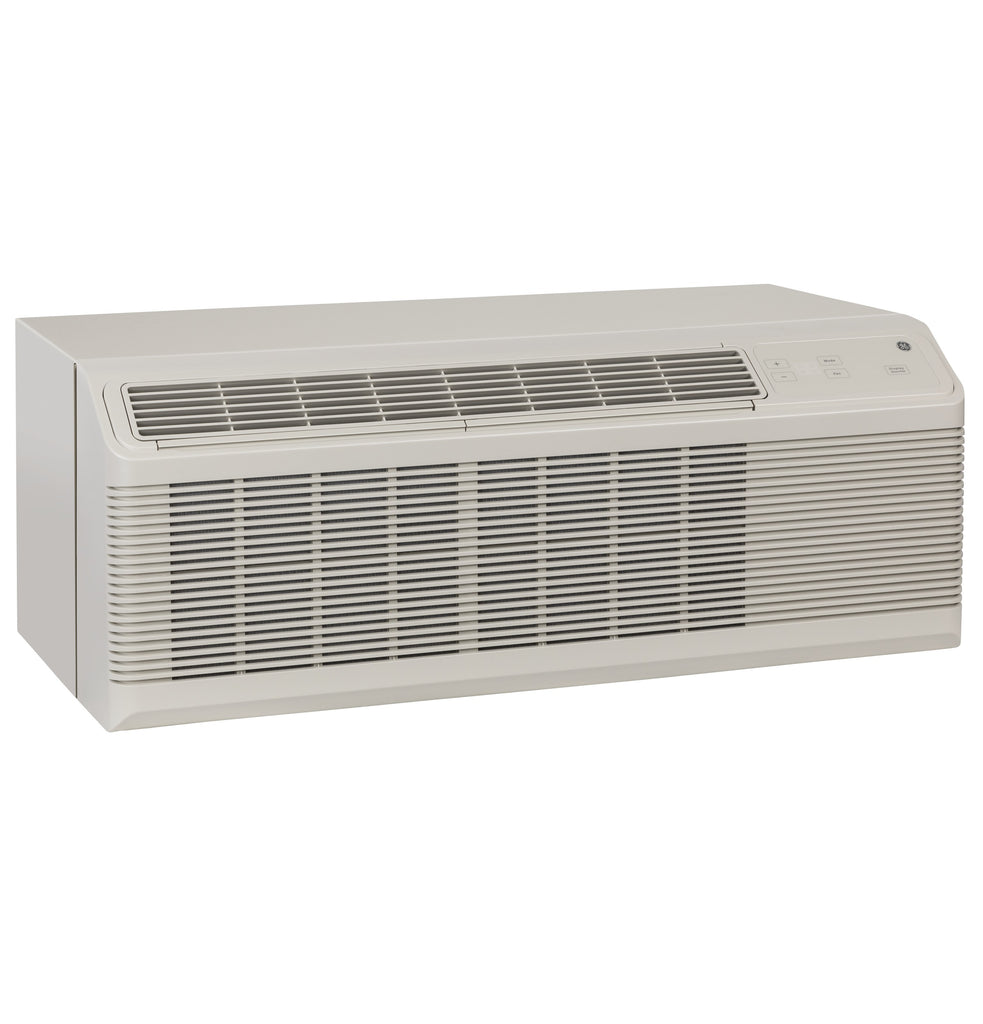

GE Zoneline® Cooling and Electric Heat Unit with Makeup Air, 230/208 Volt
In stock : 4
AZ45E12DBM
$2,143.00
FEATURES Zoneline Features "Sleep" Mode, "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel, Proportional - Integral ID Airflow, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters, Weather Protected Electrical Components Louver Style Reversible Control Type Coverless...
• Own this product? See Maintenance & Care
Product built to order, lead times may vary
Discharge Grille2-position
Makeup air
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
Energy efficiency
When paired with occupancy sensing hardware, ventilation can be halted during vacancy
Dehumidification
Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room
| Feature | Description |
|---|---|
| Chassis Type | Slide-In |

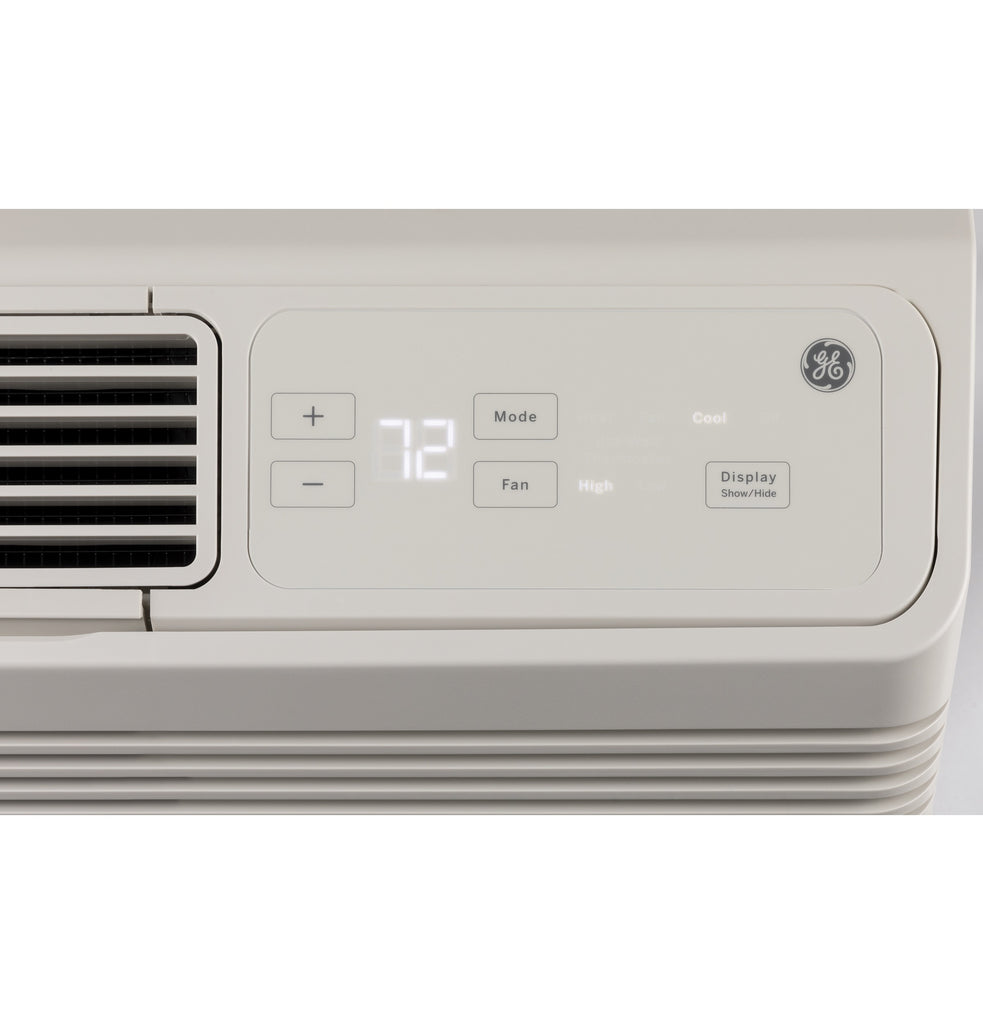

| Control Type | Coverless Backlit White LED Touch Controls |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating |
| Filter Type | Rigid Frame, Slide-Out |
| Heat - Cool | Yes |
| Heating System | Electric Resistance |
| Louver Style | Reversible |
| Makeup Air | Yes |
| Power Factor | 98 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Rotary Compressor | Yes |
| Sensible Heat Ratio | 66% |
| Temperature Limiting | Electronic 7-Step |
| Temperature Range | 60 - 85 F |
| Zoneline Features | "Sleep" Mode, "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel, Proportional - Integral ID Airflow, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters, Weather Protected Electrical Components |
| Feature | Description |
|---|---|
| Color Appearance | Gray |
| Feature | Description |
|---|---|
| CFM Indoor Fan High | 449 |
| CFM Indoor Fan Low | 270 |
| Cooling BTUH (MAX) | 11700.000000 |
| Cooling BTUH (MIN) | 11500 |
| Cooling EER (BTUH / Watt) | 11.7/11.7 |
| Dehumidification (pts./hr.) | 3.9 |
| Vent CFM (high fan at zero ESP) | 25-50 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 135 pounds |
| Net Weight | 135 pounds |
| Overall Depth | 20.81 inches |
| Overall Height | 16.0 inches |
| Overall Width | 42.0 inches |
| Feature | Description |
|---|---|
| Cooling - Amperes | 5.7/6.0 |
| Cooling - Amperes; F.L. - Cooling | 5.7/6.0 |
| Cooling - Amperes; L.R. | 29.5 |
| Cooling - Watts | 1000/990 |
| Voltage (MAX) | 230.000000 |
| Voltage (MIN) | 208 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
