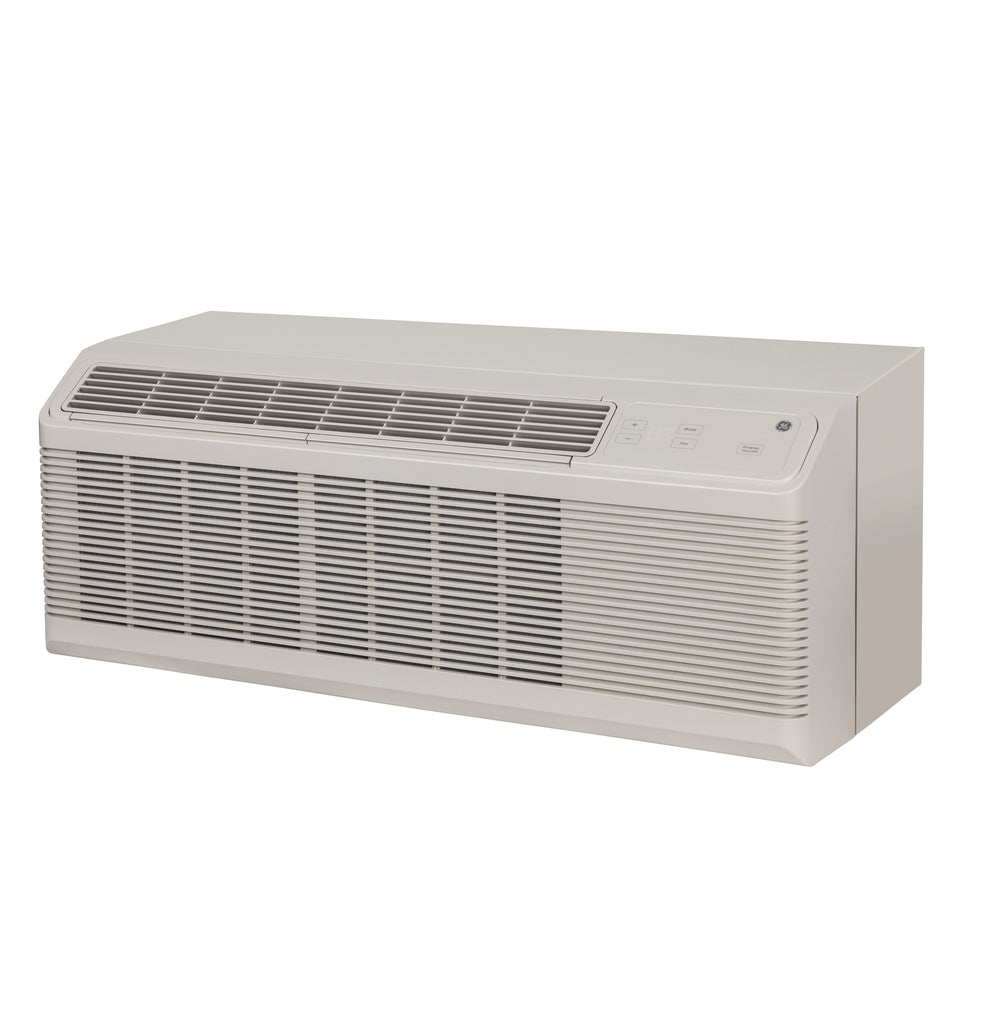

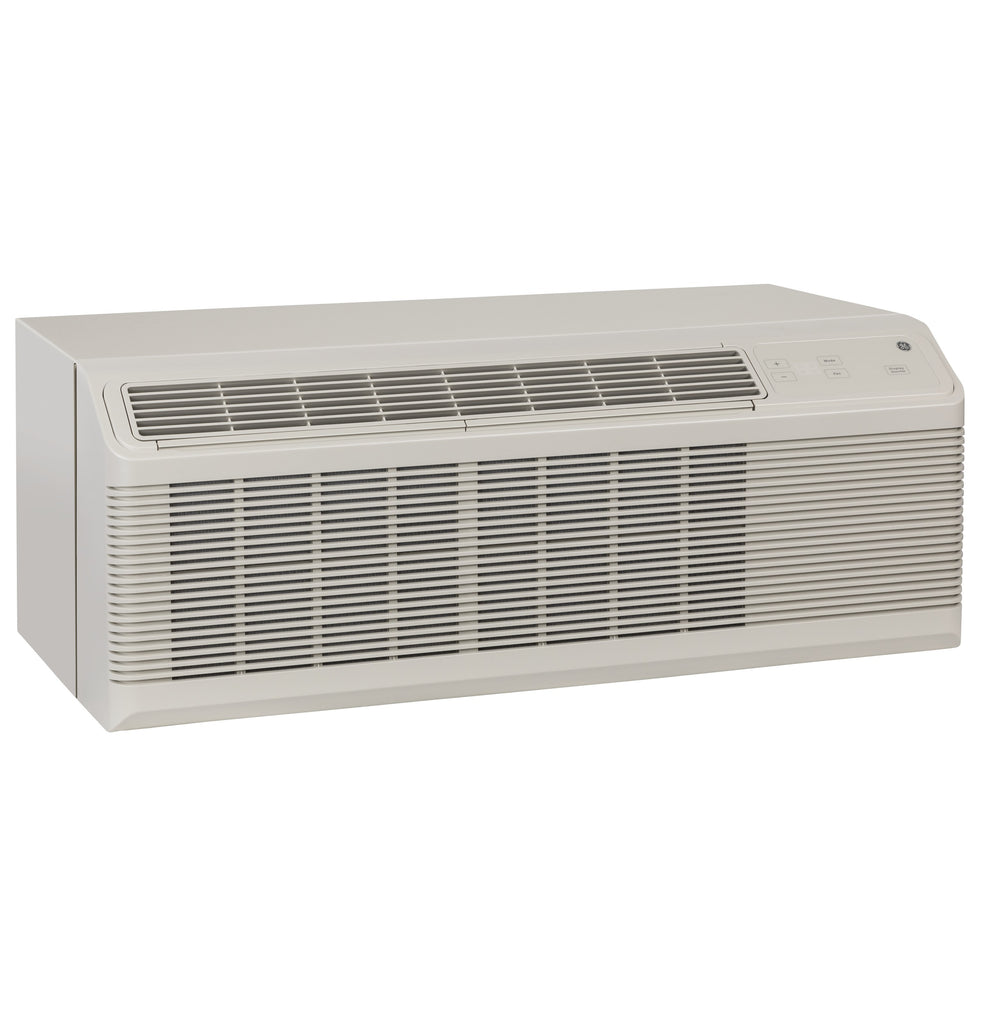

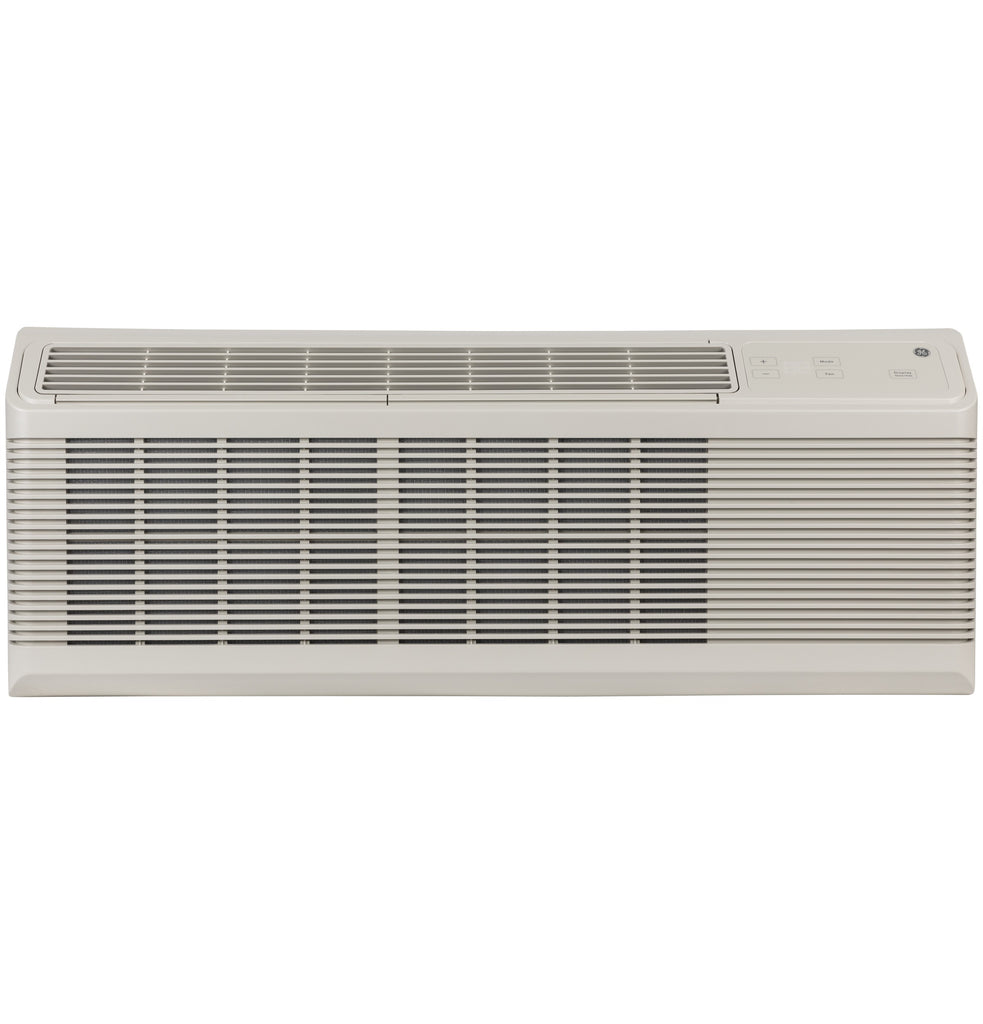

GE Zoneline® Cooling and Electric Heat Unit 7,000 BTU, 230/208 Volt
Out of stock : 0
AZ45E07DAB
$1,239.00
FEATURES Zoneline Features "Sleep" Mode, "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel, Proportional - Integral ID Airflow, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters, Weather Protected Electrical Components Louver Style Reversible Control Type Coverless...
• Own this product? See Maintenance & Care
Cooling capacity
7,200/7,000 BTU
Energy efficiency
13.4 EER
Dehumidification
1.7 pints/hour
Indoor fan CFM (high/low)
409/250
Fresh air vent CFM (fully open high fan)
33
Quiet operation

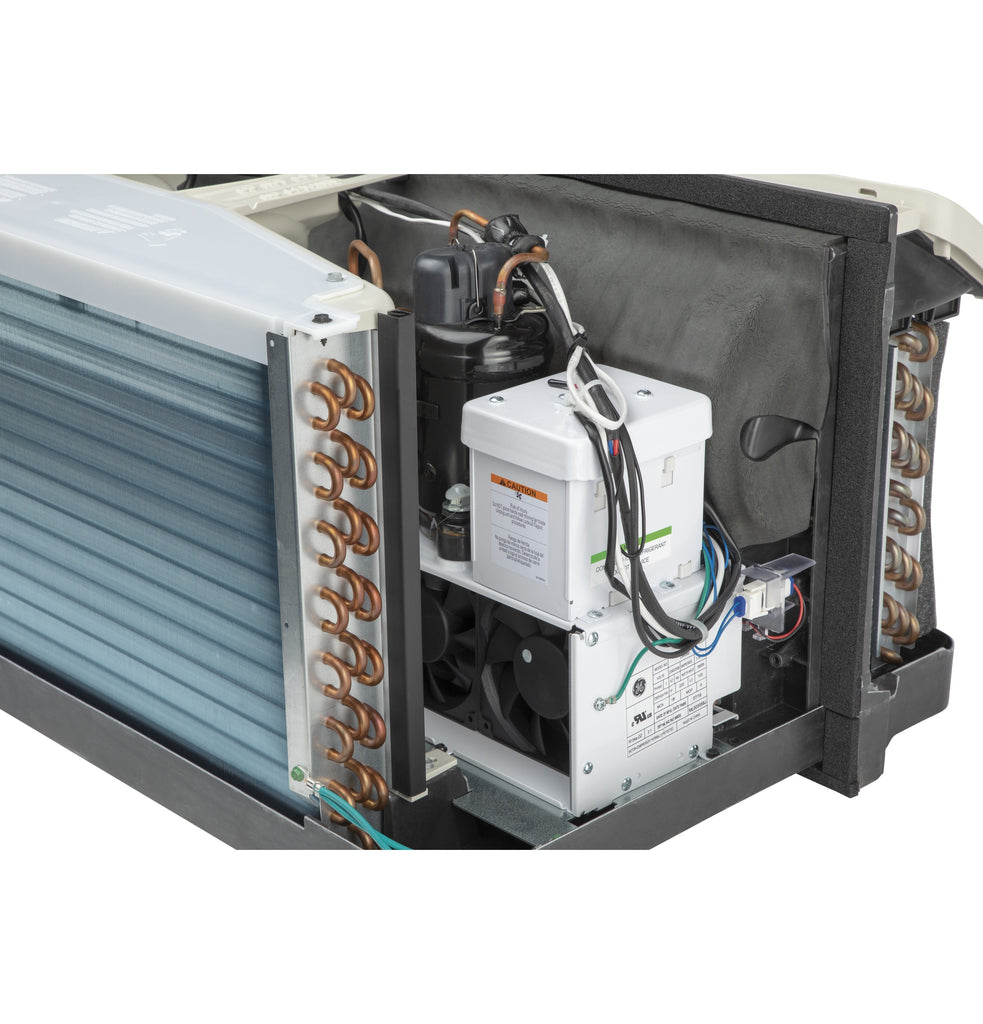

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
| Feature | Description |
|---|---|
| Chassis Type | Slide-In |

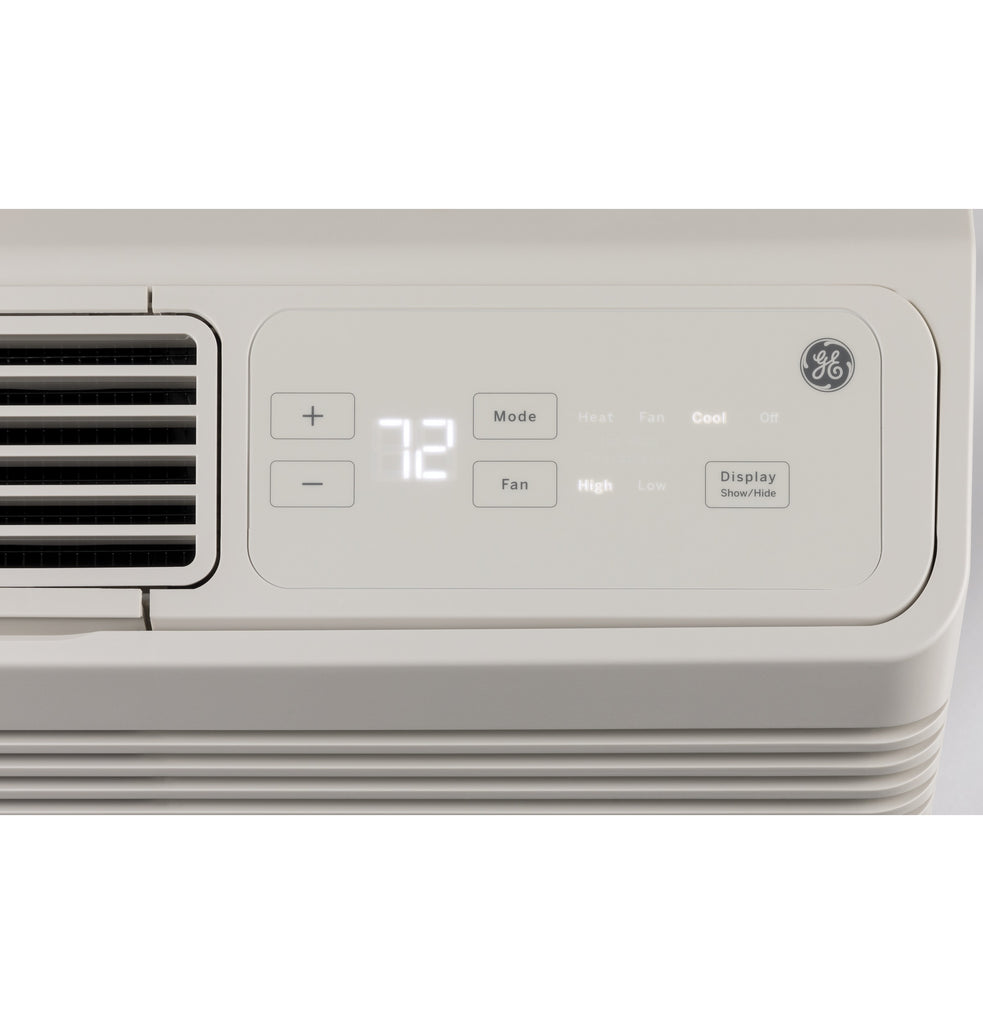

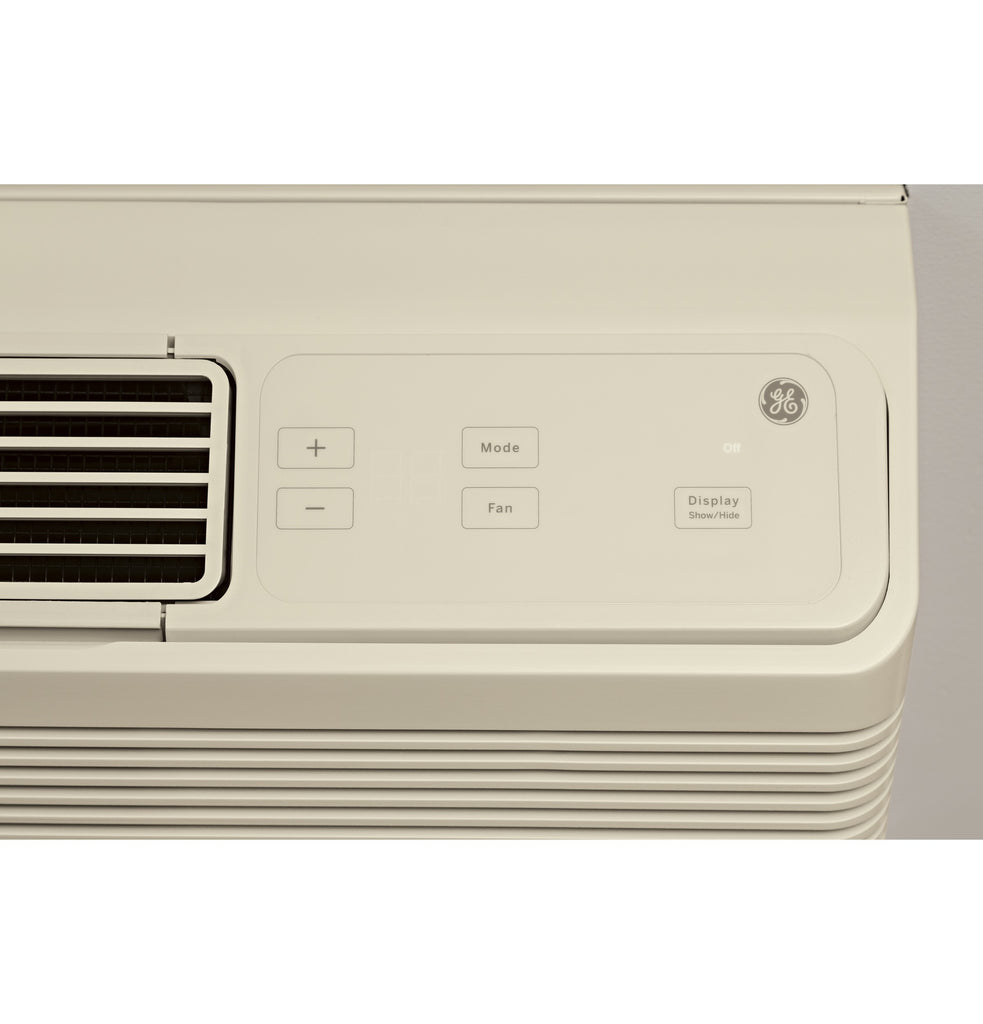

| Control Type | Coverless Backlit White LED Touch Controls |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating |
| Filter Type | Rigid Frame, Slide-Out |
| Heat - Cool | Yes |
| Heating System | Electric Resistance |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Power Factor | 96 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Rotary Compressor | Yes |
| Sensible Heat Ratio | 70% |
| Temperature Limiting | Electronic 7-Step |
| Temperature Range | 60 - 85 F |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent ControlAPVent Air FilterAPOutdoor Vent Control - 3 Positions |
| Zoneline Features | "Sleep" Mode, "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel, Proportional - Integral ID Airflow, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters, Weather Protected Electrical Components |
| Feature | Description |
|---|---|
| Color Appearance | Gray |
| Feature | Description |
|---|---|
| CFM Indoor Fan High | 348 |
| CFM Indoor Fan Low | 233 |
| Cooling BTUH (MAX) | 7200.000000 |
| Cooling BTUH (MIN) | 7000 |
| Cooling EER (BTUH / Watt) | 13.4 |
| Dehumidification (pts./hr.) | 1.7 |
| Vent CFM (high fan at zero ESP) | 33 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 110 pounds |
| Net Weight | 110 pounds |
| Overall Depth | 20.81 inches |
| Overall Height | 16.0 inches |
| Overall Width | 42.0 inches |
| Feature | Description |
|---|---|
| Cooling - Amperes | 2.5/2.6 |
| Cooling - Amperes; F.L. - Cooling | 2.5/2.6 |
| Cooling - Amperes; L.R. | 13.5 |
| Cooling - Watts | 535/520 |
| Voltage (MAX) | 230.000000 |
| Voltage (MIN) | 208 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
