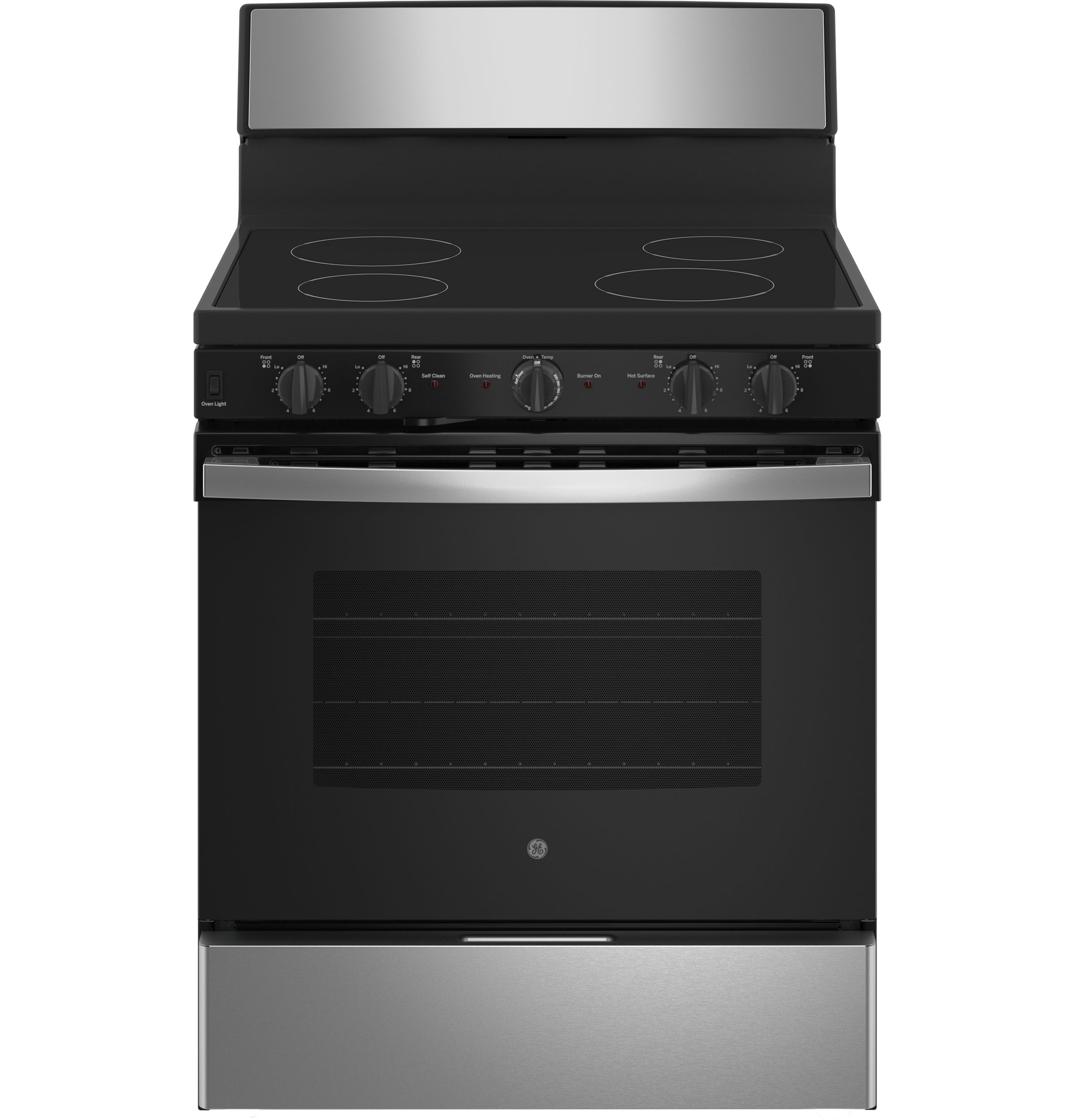

GE® ENERGY STAR® 30” Free-Standing Electric Radiant Smooth Cooktop Range
SKU: JB480SYSS

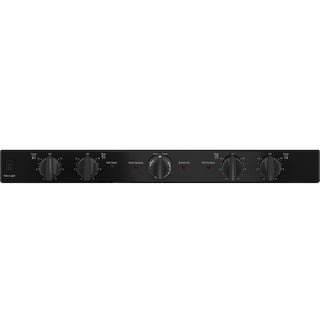

Front controls
Easily-accessible controls make it simple to control the stovetop and oven

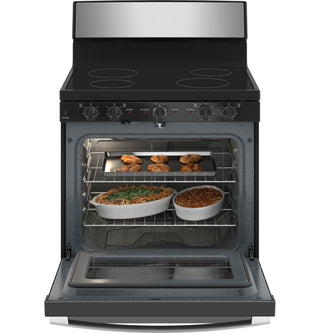

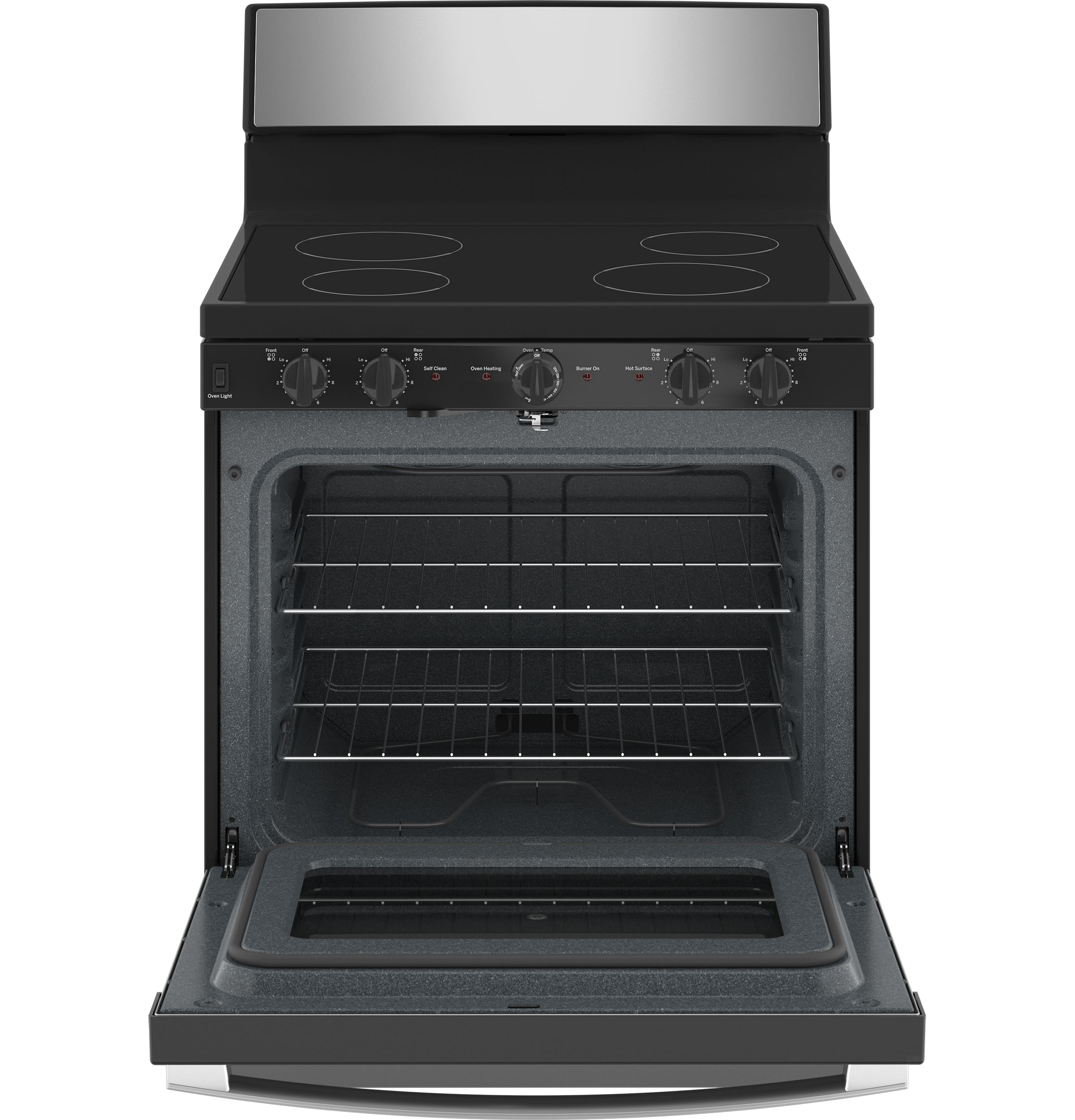

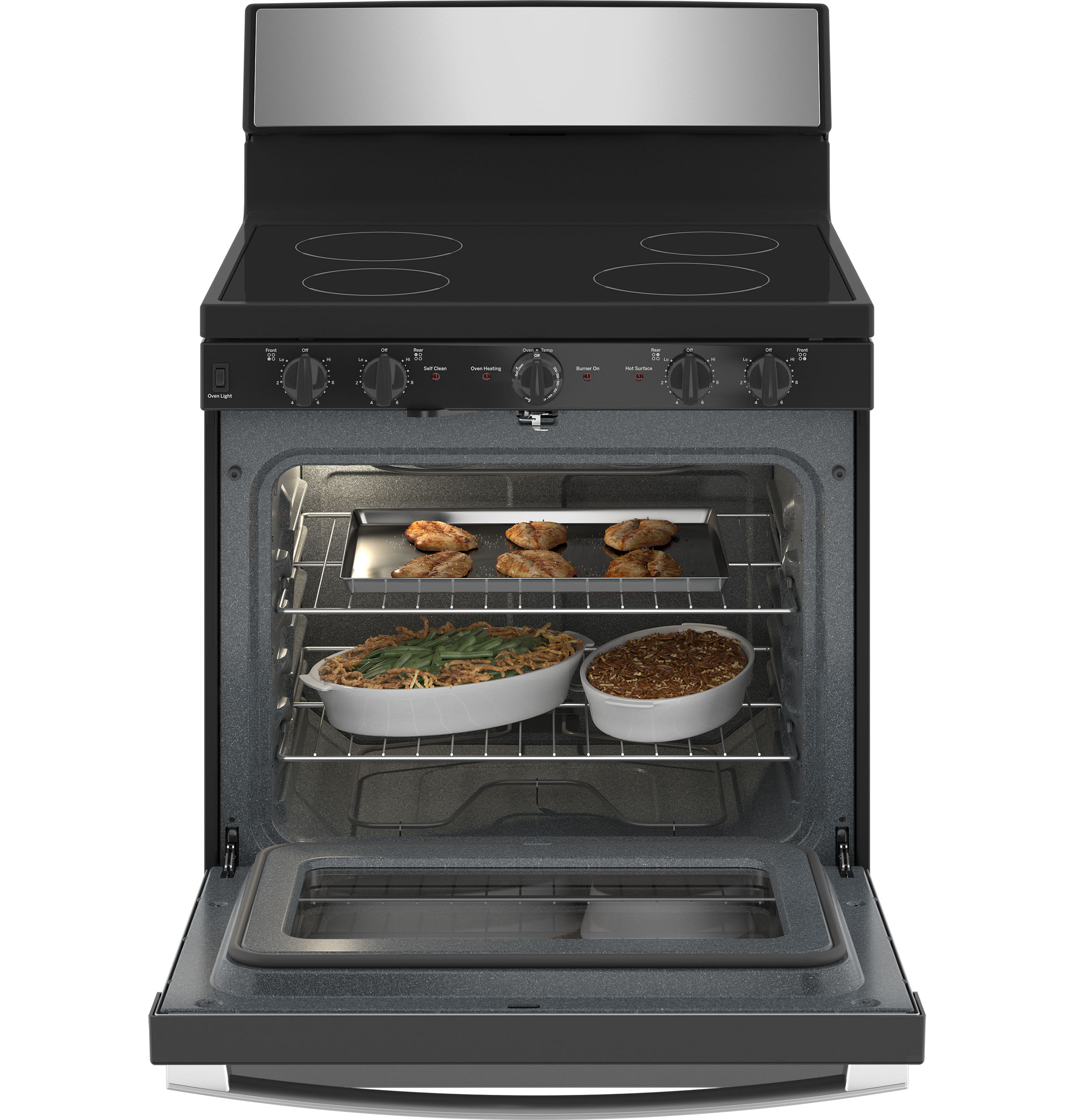

5.0 cu. ft. oven capacity
Cook more dishes at once
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Dual-element Bake
Upper and lower elements produce even heat and great results
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
| Feature | Description |
|---|---|
| Configuration | Range with Storage Drawer |
| Control Location | Front |
| Control Type | Rotary knobs |
| Cooking Technology | Traditional |

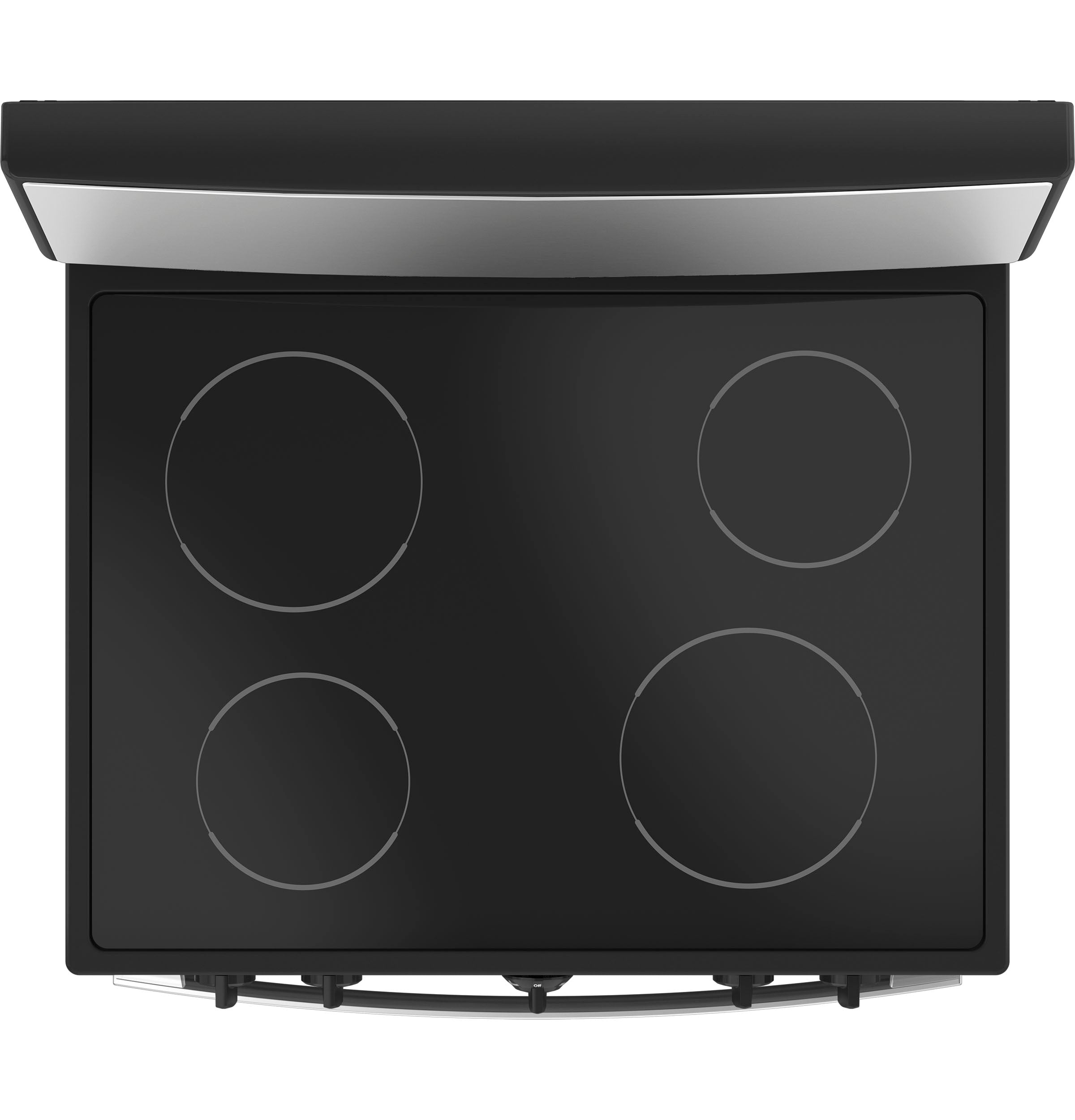

| Cooktop Burner Type | Radiant, Smoothtop |
| Cooktop Surface | Black Ceramic Glass |
| Cooktop Type | Radiant Smoothtop |
| Drawer Type | Storage |
| Element - Left Front | 6" 1500W |
| Element - Left Rear | 8" 2000W |
| Element - Right Front | 8" 2000W |
| Element - Right Rear | 6" 1500W |
| Fuel Type | Electric |
| Hot Surface Indicator Lights | Yes |
| Oven Cleaning Type | Self-Clean |
| Oven Control Features | Oven "ON" Light, Self-Cleaning Cycling Light |
| Oven Features | 4-Pass Bake Element, 6-Pass Broil Element |
| Oven Interior | 1 Incandescent Light |
| Oven Rack Features | 2 Oven Racks |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Product Type | Free-Standing Single Oven |
| Storage Drawer Features | Removable Full-Width |
| Feature | Description |
|---|---|
| Color Appearance | Stainless Steel/Black |
| Control Knobs | Gray |
| Handle | Designer Style |
| Handle Color | Stainless Steel |
| Oven Door Features | Big View Oven Window, Glass Door, Stainless Overlay |
| Textured Steel Side Panels | Yes |
| Feature | Description |
|---|---|
| Total Capacity (cubic feet) | 5.000000 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 161 pounds |
| Cabinet Width | 30.0 inches |
| Depth with Door Open | 46.75 inches |
| Depth Without Handle | 26.25 inches |
| Height to Cooking Surface (in.) | 36 inches |
| Net Weight | 141 pounds |
| Oven Interior Dimensions (W x H x D) (in.) | 23 inches |
| Overall Depth | 29.0 inches |
| Overall Height | 47.0 inches |
| Overall Width | 30.0 inches |
| Feature | Description |
|---|---|
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| Bake Wattage | 2585W |
| Broiler Wattage | 3410W |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| KW Rating at 208V | 7.9 |
| KW Rating at 240V | 10.5 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
