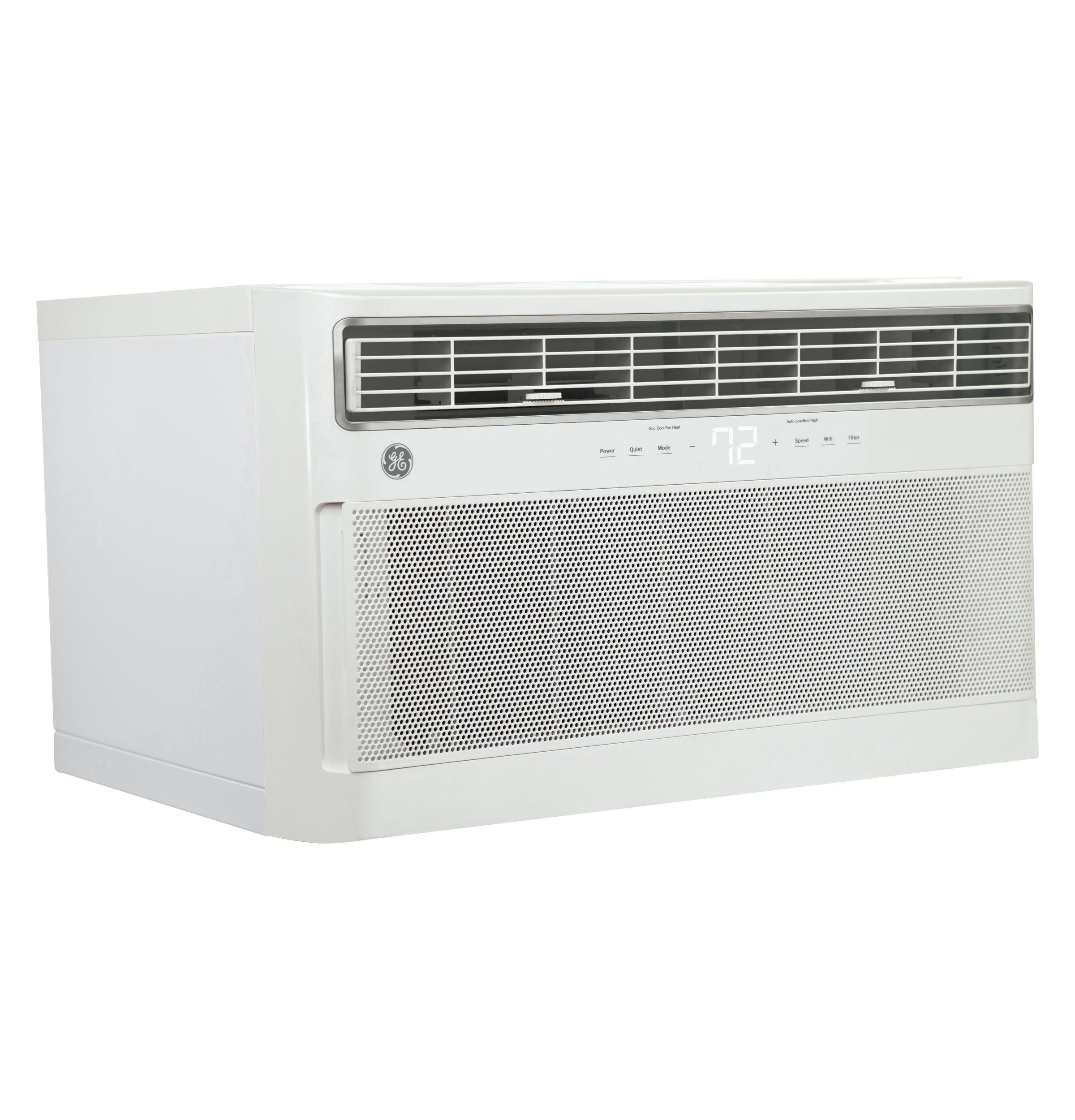

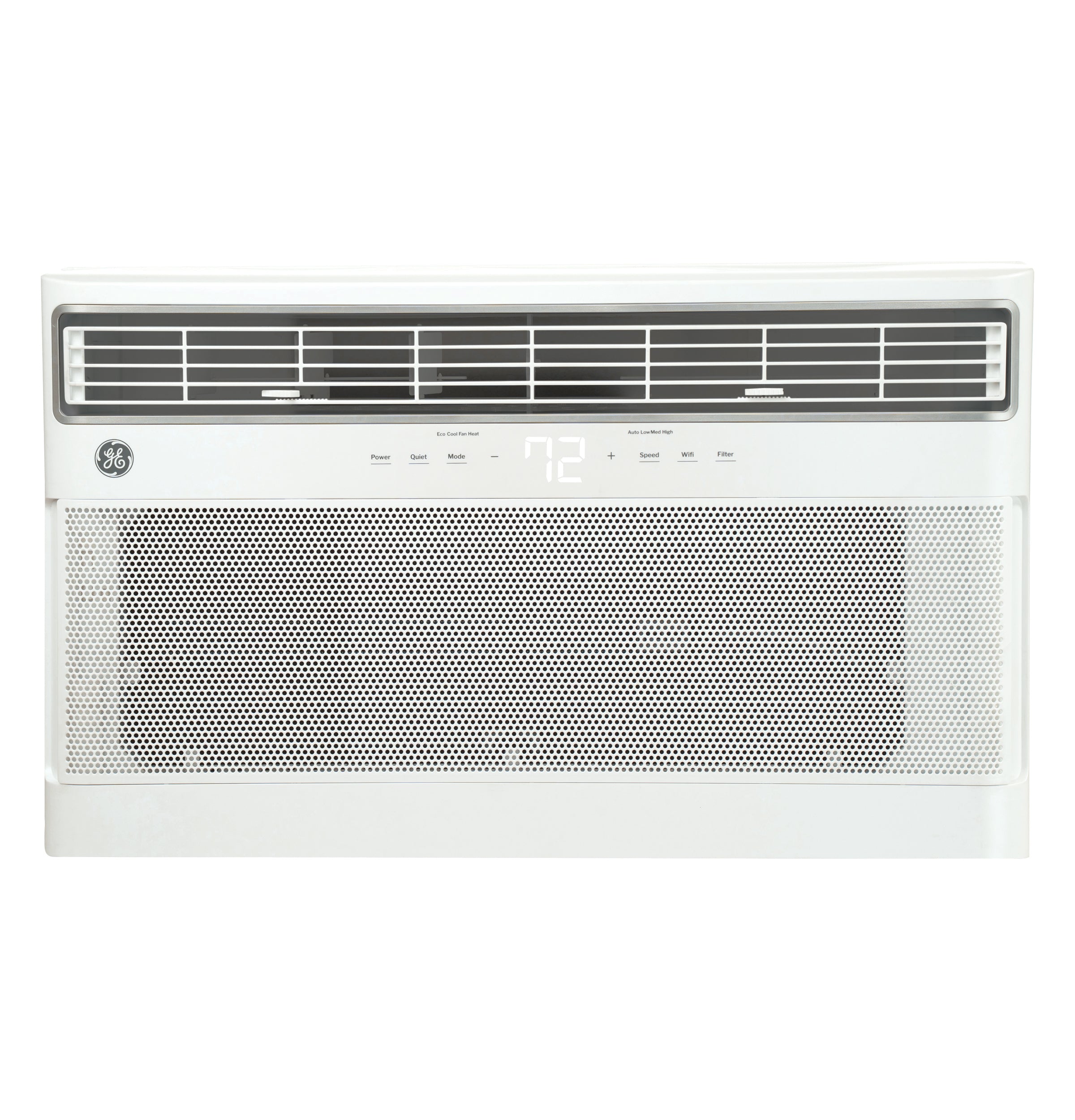

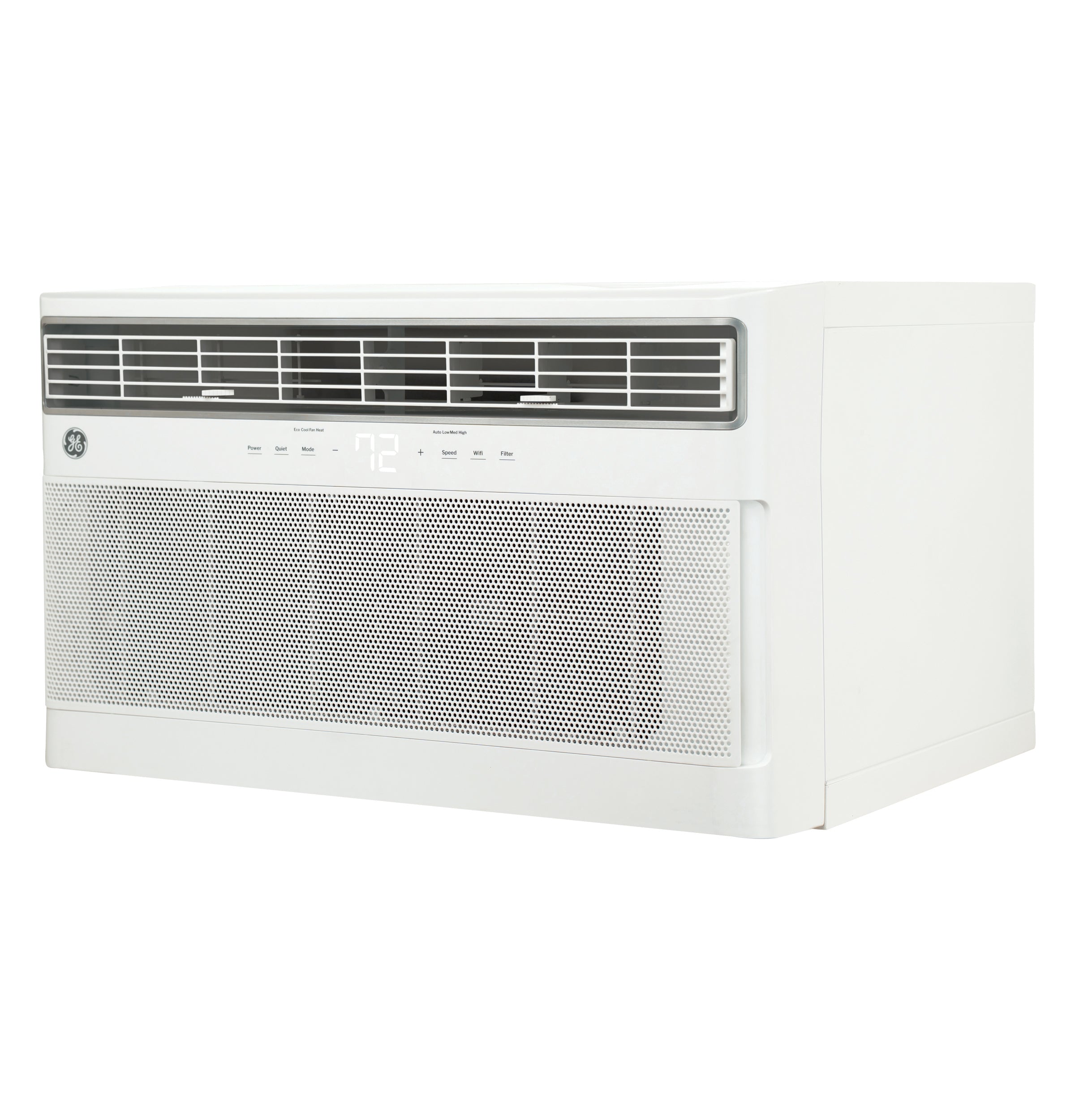

GE® 230/208V Built-In AC, Heat/Cool, Corrosion Protected, Variable Speed with WiFi
Model: AJEQ12DCXWA
Built-in WiFi powered by SmartHQa,,C/
Control TypeElectronic
True Built In Design
The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps
Variable Speed Inverter Technology
Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification
New Upgraded Appearance
Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance
Quiet Mode
Unit operates fan and compressor at lowest speeds to provide best performance
Corrosion Protection
Corrosion protected exterior components
| Feature | Description |
|---|---|
| Air Discharge | Over / Under |
| Chassis Type | Slide-In |
| Control Type | Electronic |
| Cooling Capacity Range BTU/Hr | 6,100 - 12,400 Btu |
| Cord Length | 68" |
| Digital Time Temp Display | Yes |
| Fan Speed Selections | 3 Cooling, 3 Fan Only, Variable |
| Filter Type | Rigid Frame, Tilt-Out, Washable |
| Heating - Electric - Input Watts | 3450/2821 |
| LCDI / AFCI power cord | LCDI |
| Louver Style | 6-Way |
| Optional Grill | RAG13/RAG13A/RAG14E |
| Outdoor Vent / Exhaust | Yes |
| Plug Type | Perpendicular/Right Angle LCDI |
| Product Type | Built-In |
| Refrigerant Type | R32 |
| Remote Control | Yes |
| Room Air Conditioner Features | Batteries Included, Improved Corrosion Package, Remote Control, Smart Fan Switch |
| Rotary Compressor | Yes |
| Style | Thru-Wall |
| Temperature Range | 60->85 F |
| Thermostat Type | Electronic Digital |
| Unit Type | Heat / Cool Unit |
| WiFi Connect | Built-In |
| Feature | Description |
|---|---|
| Color Appearance | Soft Gray |
| Installation | Wall Mounted |
| Feature | Description |
|---|---|
| Dehumidification (pts./hr.) | 3.4/3.4 |
| Heating - Electric - BTUH - AHAM - 1R | 10600/8600 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 94 pounds |
| Depth to Louvers | 5 inches |
| Net Weight | 92.2 pounds |
| Overall Depth | 21.81 inches |
| Overall Depth (Excludes Sleeve) | 19.91 inches |
| Overall Height | 15.63 inches |
| Overall Height (Excludes Sleeve) | 14.88 inches |
| Overall Width | 26.0 inches |
| Overall Width (Excludes Sleeve) | 24.81 inches |
| Feature | Description |
|---|---|
| CEER | 9.5/9.5 |
| Cooling Rated Capacity BTU/Hr | 12,000 Btu |
| Heating - Electric - Heater Amps | 15.0/13.5 |
| Hertz | 60 |
| Voltage (MAX) | 230.000000 |
| Voltage (MIN) | 208 |
| Voltage/Hertz/Phase | 230-208/60/1 |
| Volts/Hertz | 230V-208V/60Hz |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance, Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
