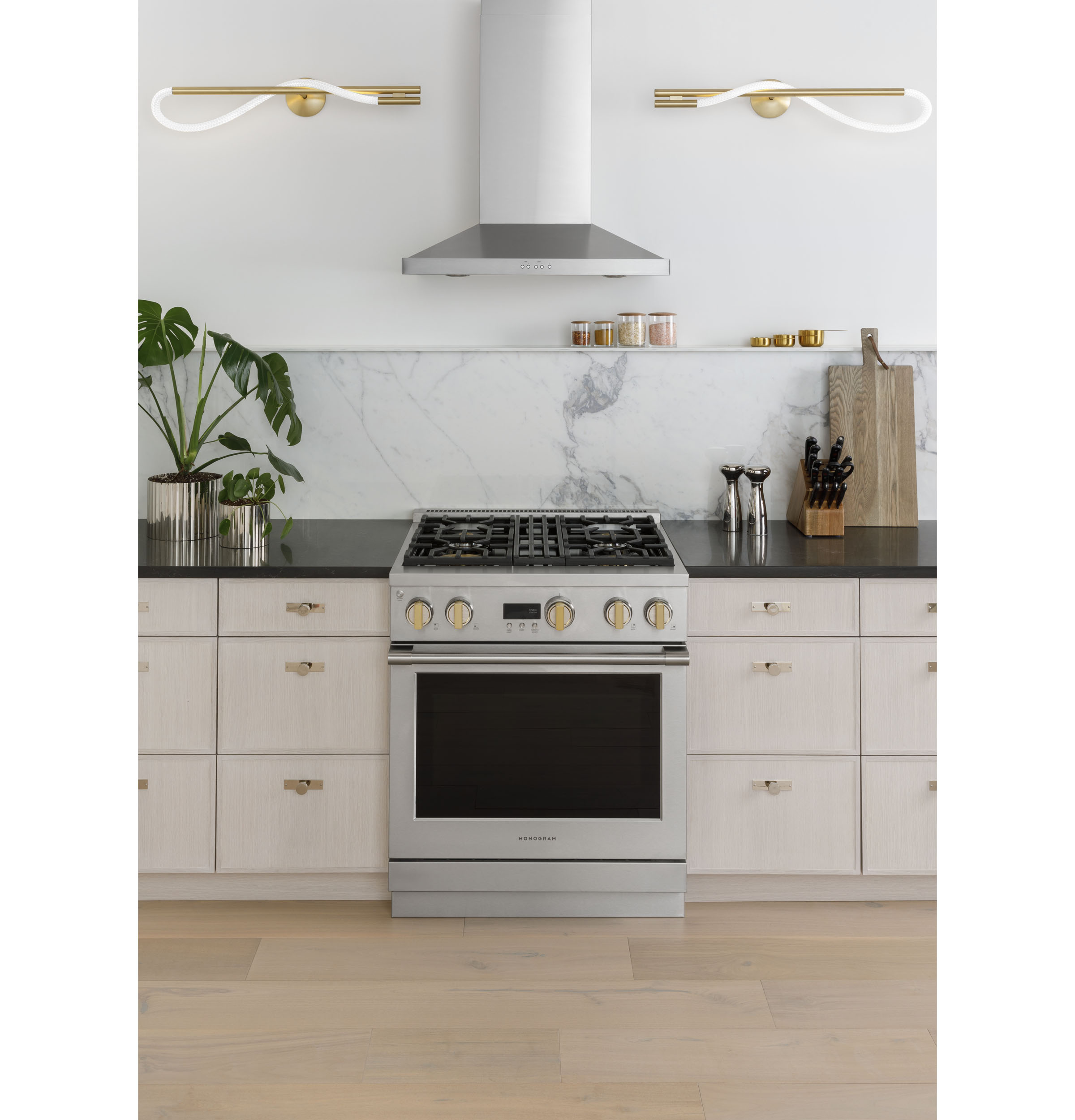

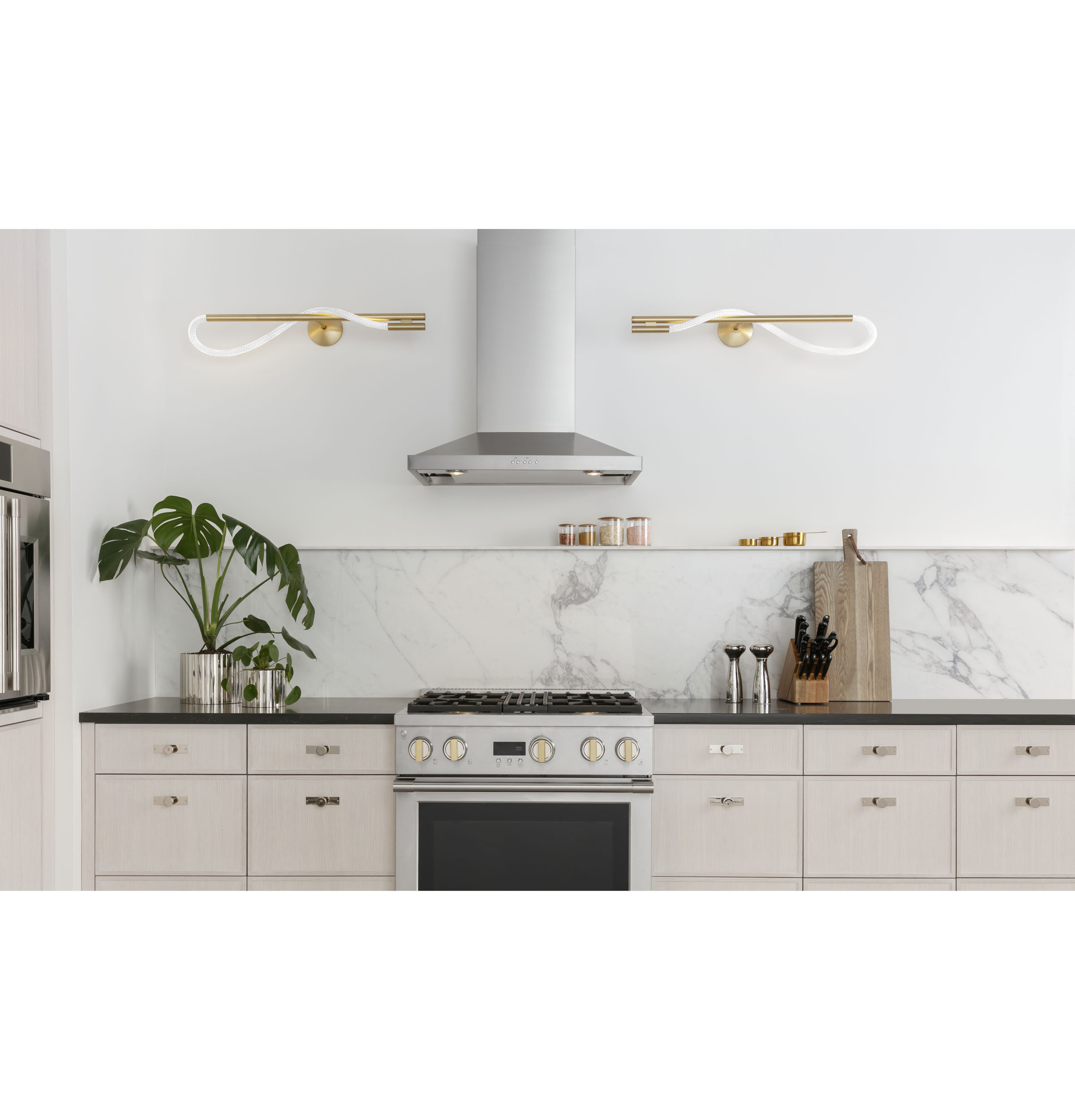

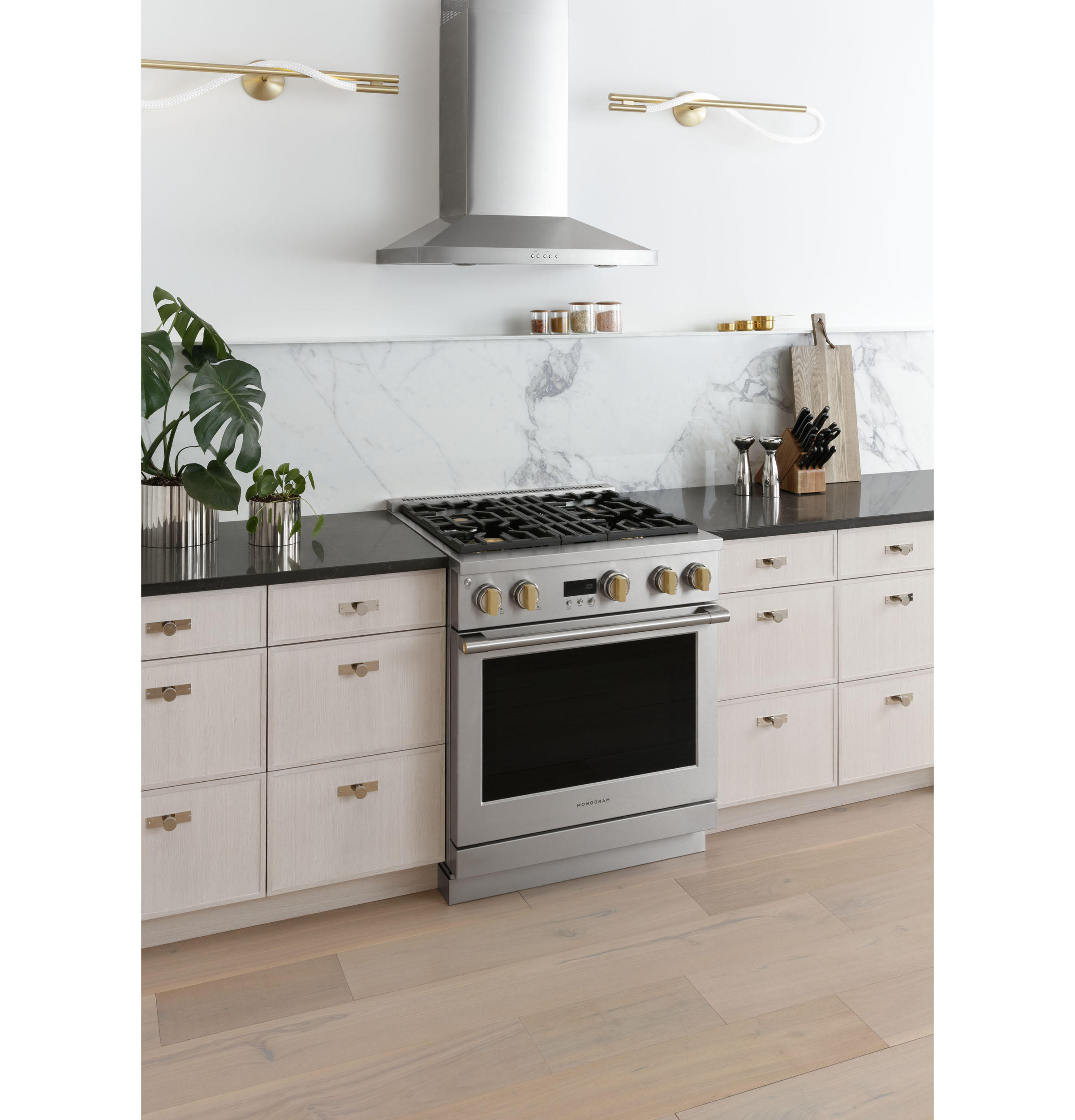

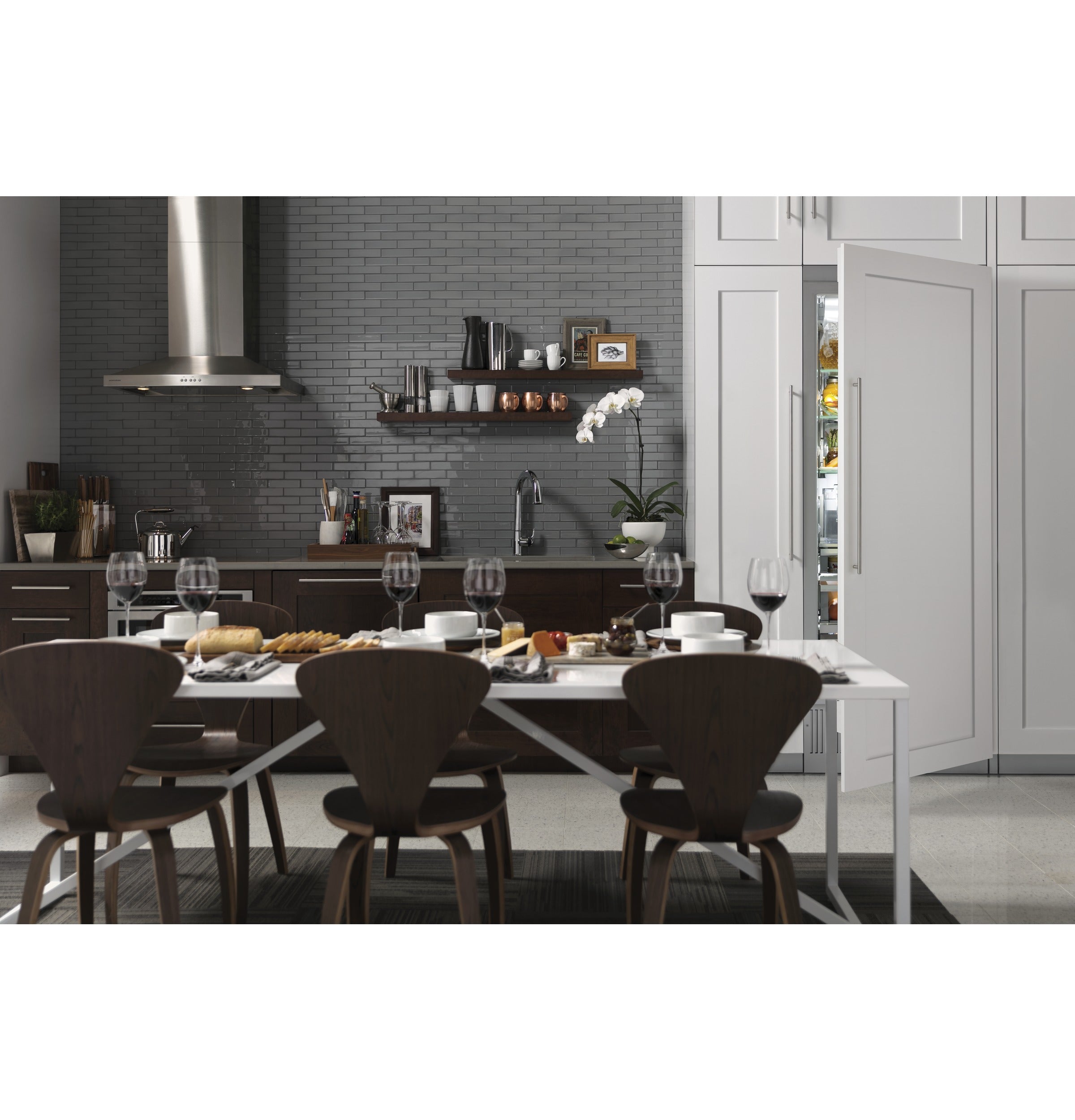

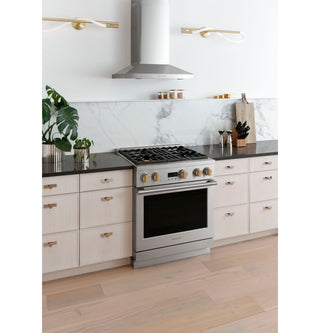

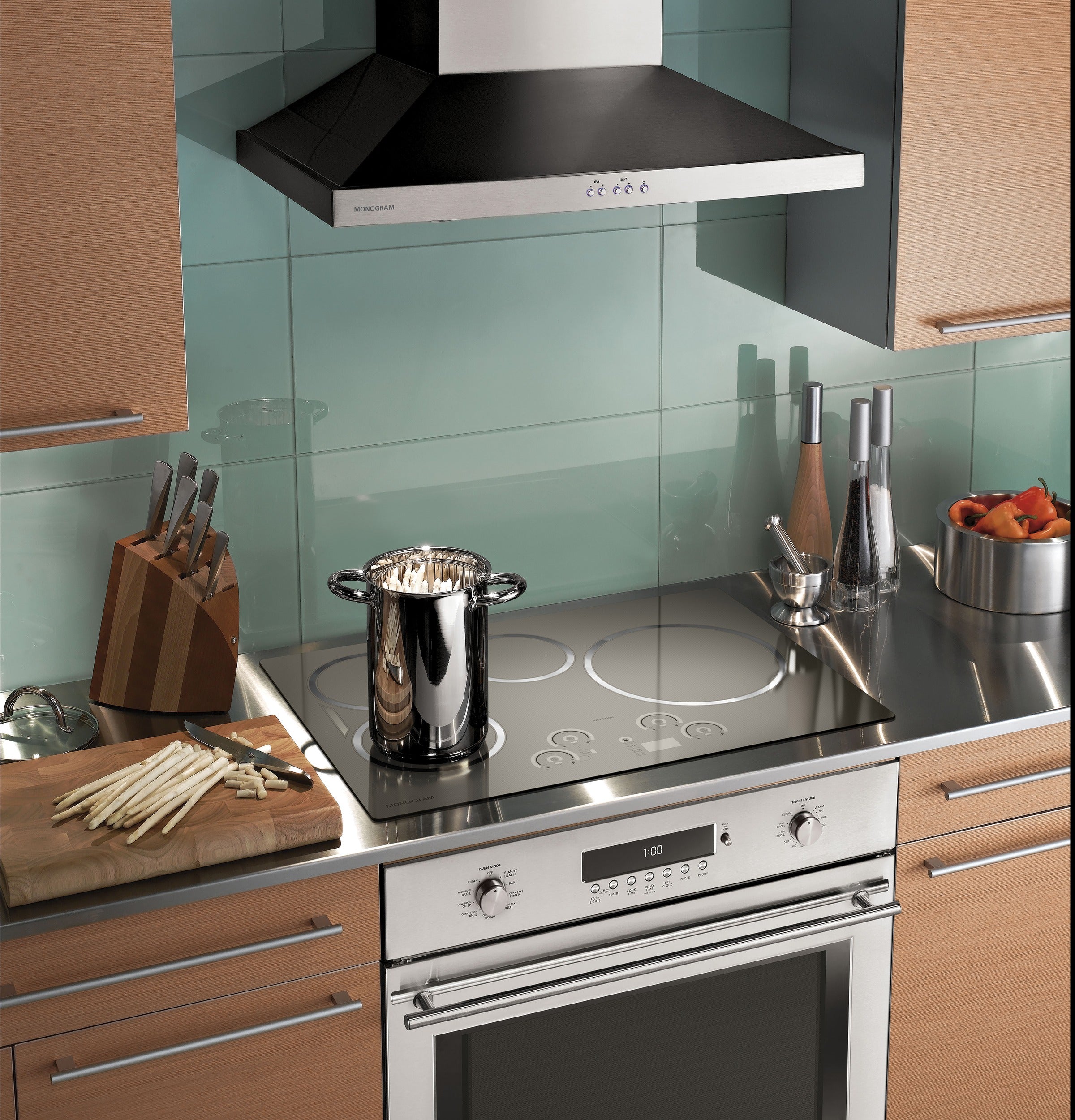

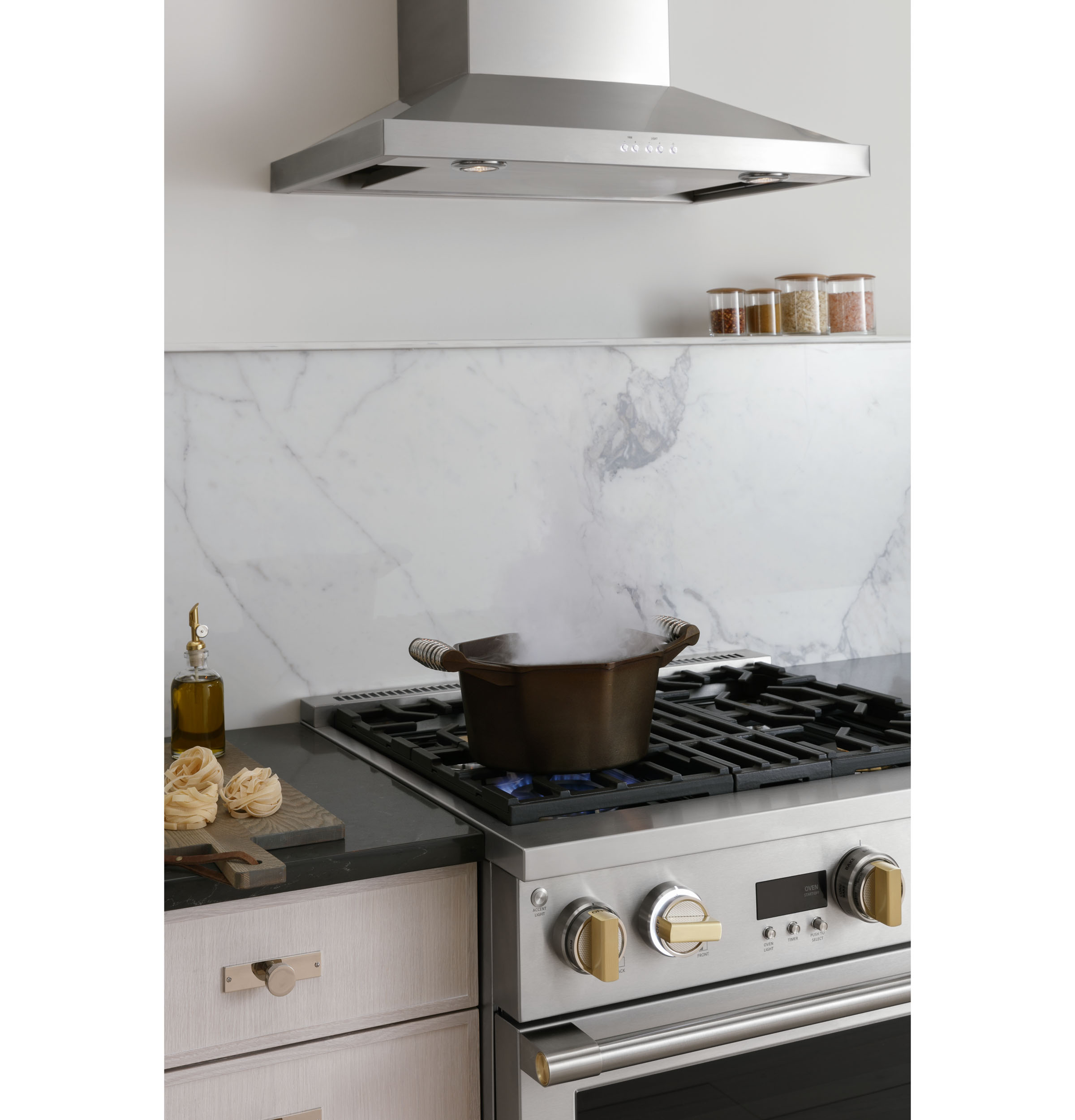

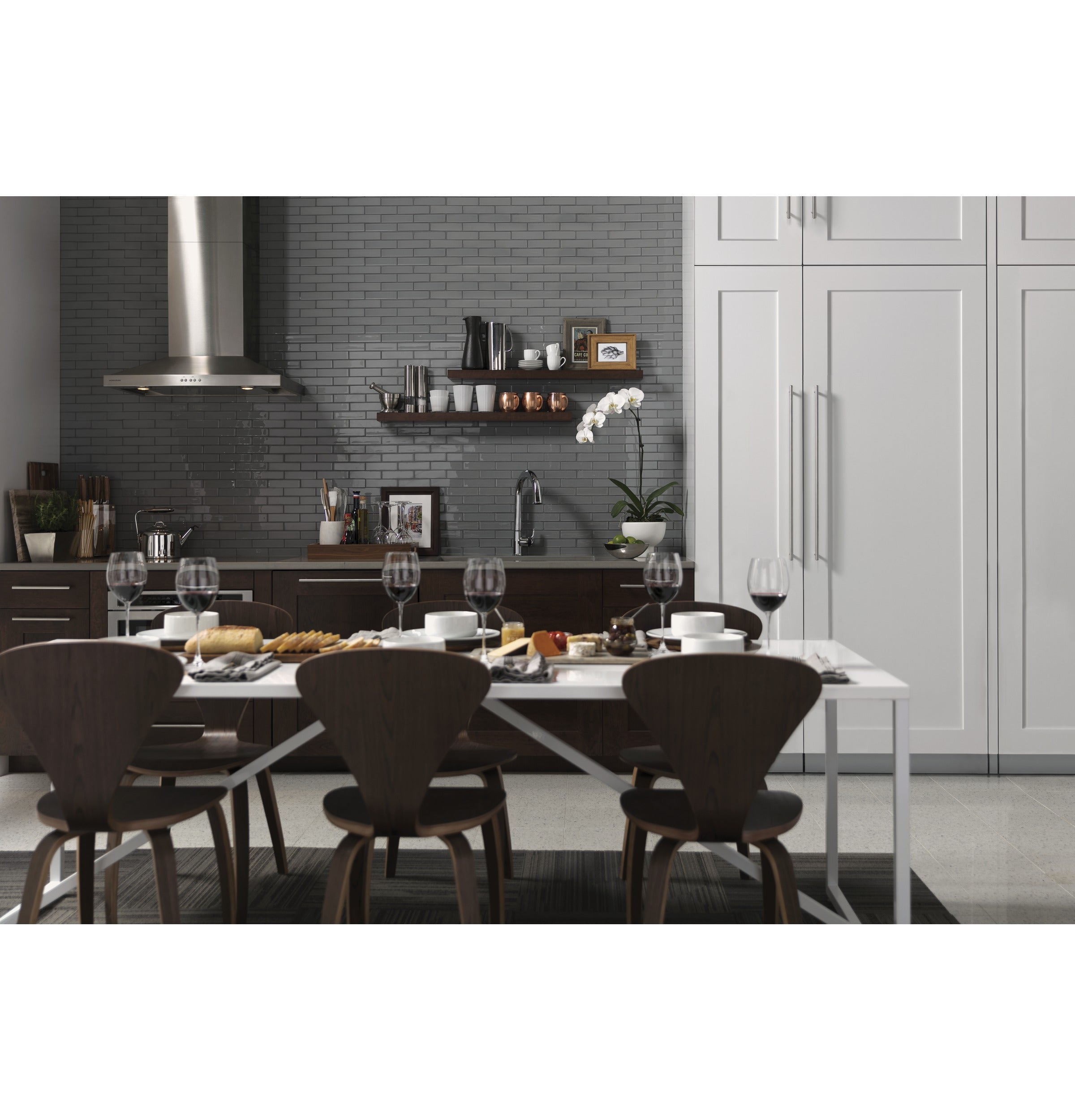

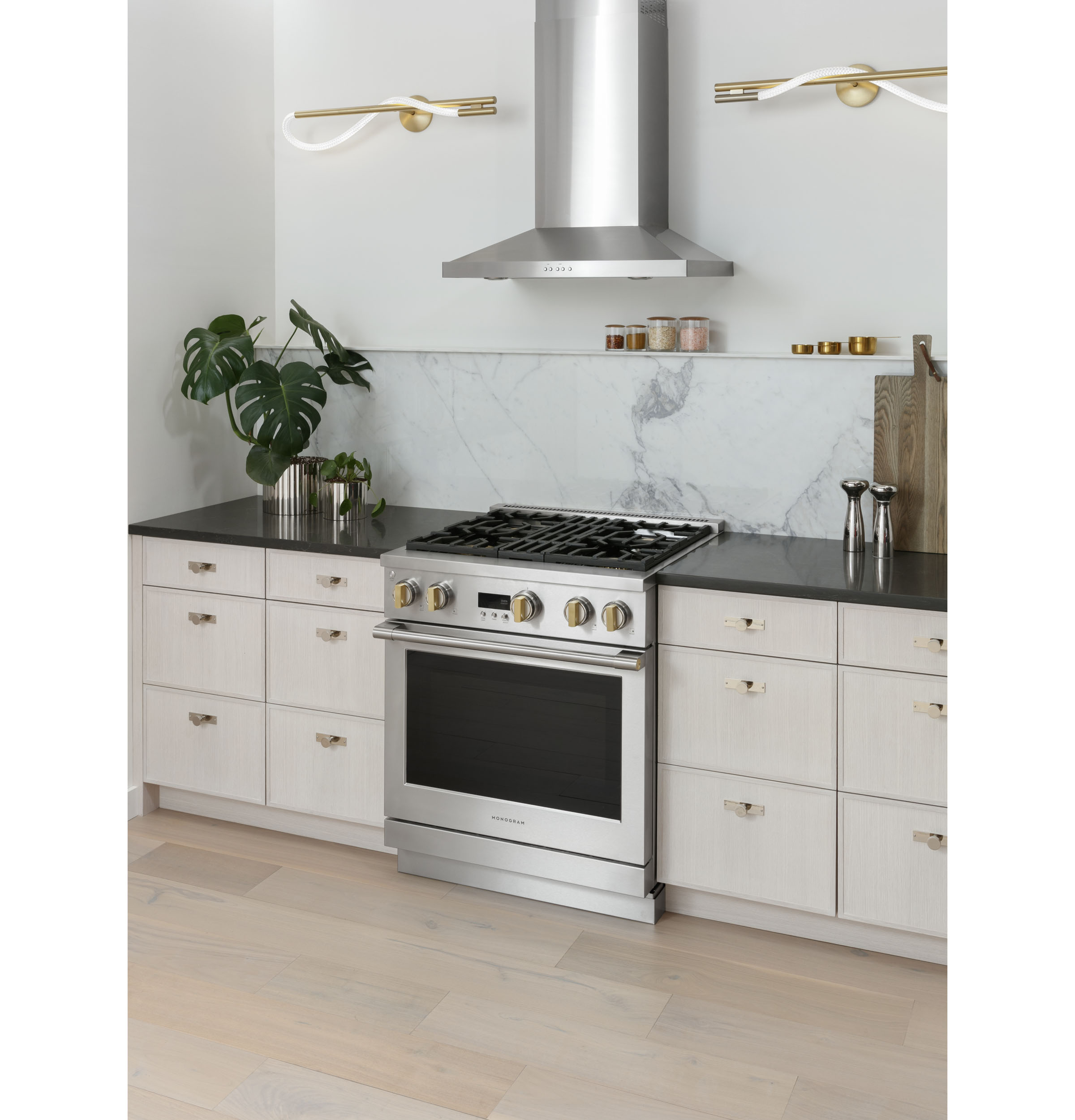

30" Wall-Mounted Vent Hood
SKU: ZVW8301SWSS
Stainless steel design
Creates a striking architectural impression with bold angles and smoothly finished edges
Powerful ventilation
Offers three speeds plus a 400 CFM boost to capture cooking fumes produced by 30" cooktops
Perimeter filter system
Draws fumes and vapors around a stainless steel center panel, which completely and stylishly conceals filters

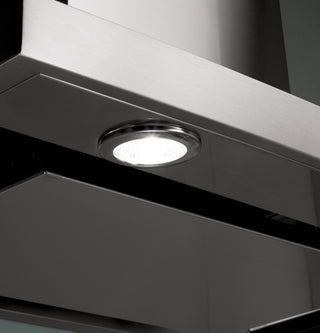

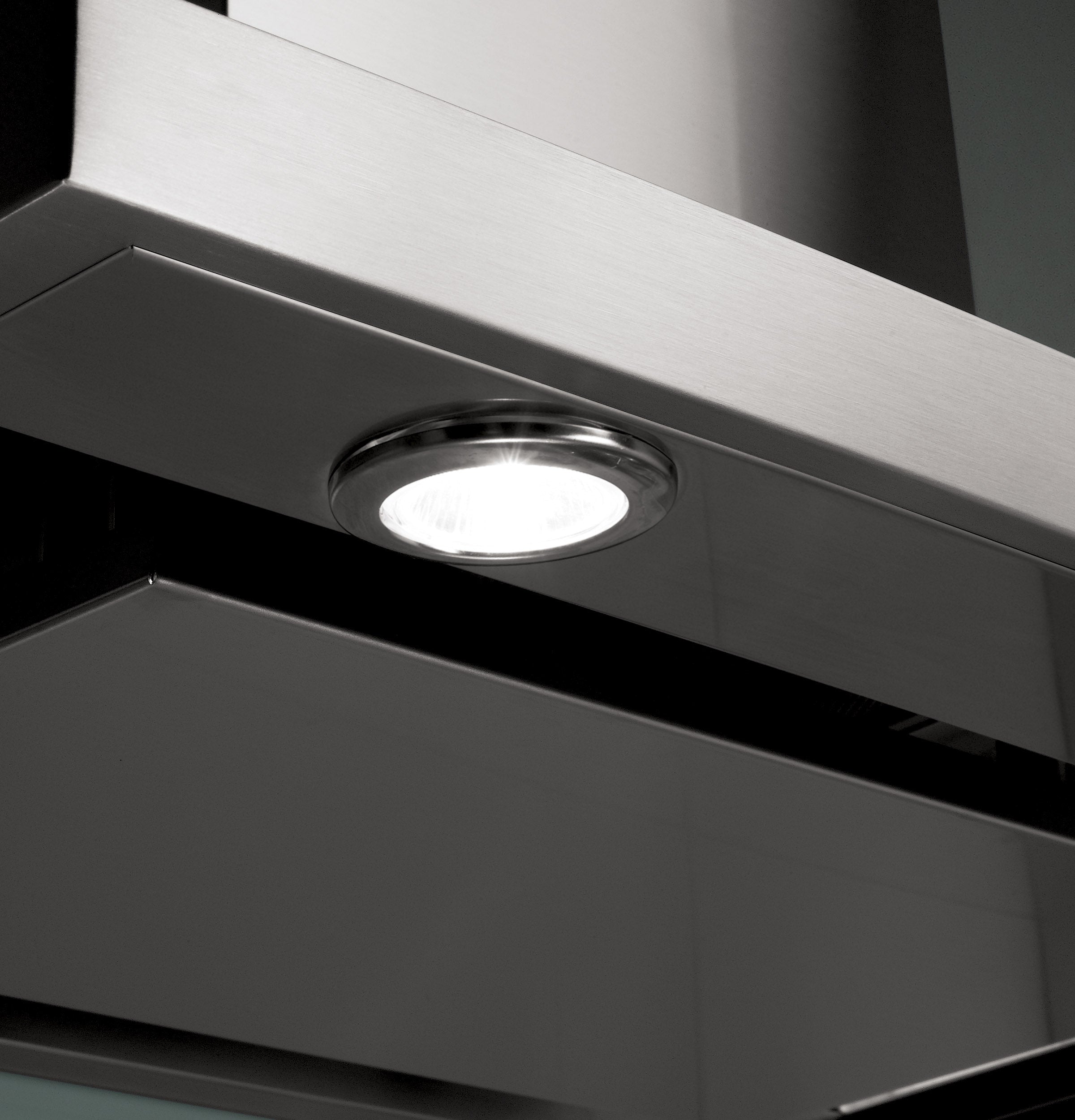

Halogen lighting
Provides four levels of clean, brilliant illumination to suit the cooking task or occasion
Recirculating-ready design
Includes reversible duct covers for non-vented installations, eliminating the need for an optional kit
| Feature | Description |
|---|---|
| Blower Levels | 4 |
| CFM/ Sones Rating | 400/ 8.5 (High Speed) |
| Control Type | Electronic, Pushbutton |
| Cooktop Lighting | 2, Halogen |
| Damper in Transition | Yes |
| Ducting | Vertical Only |
| Exhaust Options | Recirculating, Vented to Outside |
| Fan Speed Control | 4-Speed |
| Filter Cleaning | Dishwasher Safe |
| Light Controls | Off/High/Night |
| Lighting Levels | 4 |
| Max CFM | 400 |
| Recirculating Capable | Yes |
| Removable Filter | Yes |
| Removable Grease Filter(s) | Yes |
| Short Description | 30" Wall-Mounted Vent Hood |
| Vertical Exhaust Blower Rating (CFM) | 400 |
| Welded / Finished Seams | Yes |
| Feature | Description |
|---|---|
| Color Appearance | Stainless Steel |
| Design Style | Chimney |
| Exterior Design | Chimney - Wall-Mount |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 75 pounds |
| Cabinet Width | 30.0 inches |
| Net Weight | 60 pounds |
| Overall Depth | 18.88 inches |
| Overall Height | 5.88 inches |
| Overall Width | 29.88 inches |
| Feature | Description |
|---|---|
| Amp Rating at 120V | 12.0 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
