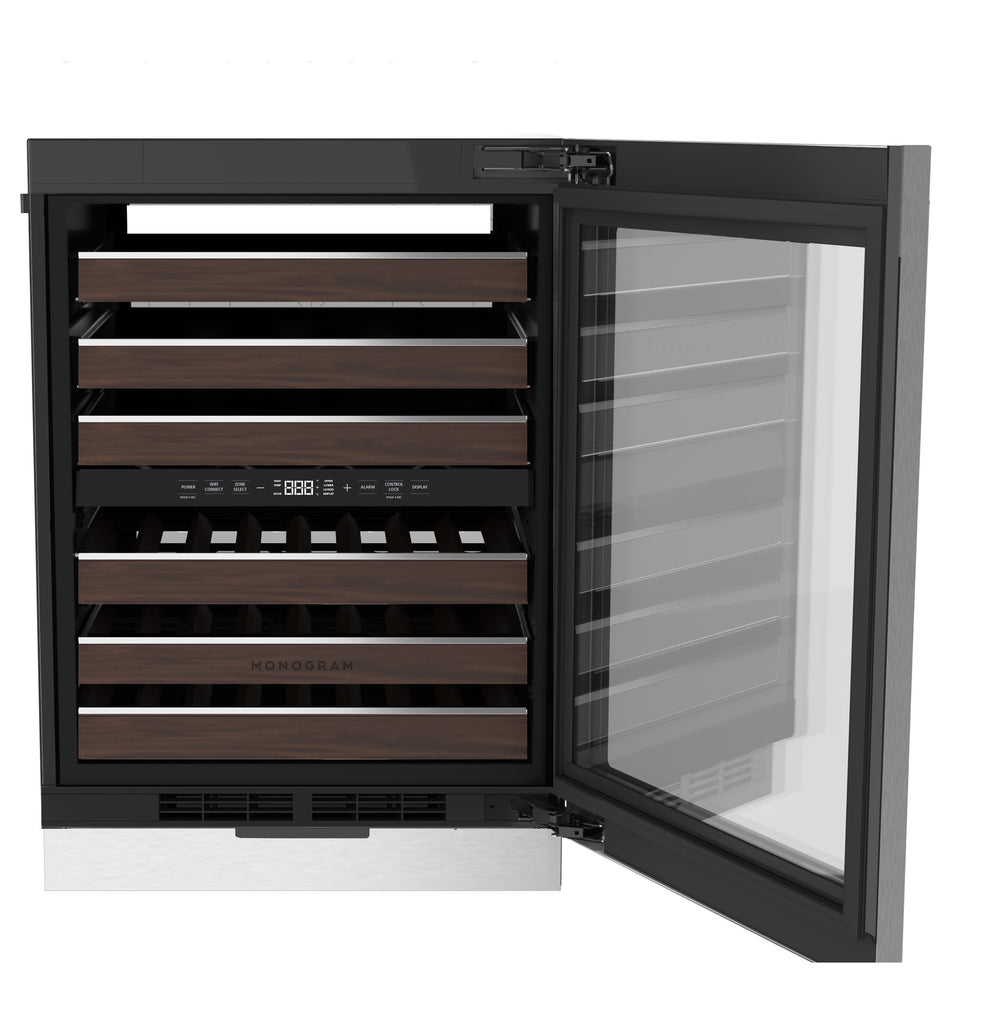

Monogram 24" Panel-Ready Wine Reserve
• Own this product? See Maintenance & Care
42 Bottle Capacity
Expansive wine storage, for up to 42 bottles, with 2 shelves designed for large bottle storage
Dual Zone Cooling
Select different temperatures in the upper and lower compartments to store different wine varieties
Flush Installation
Designed for nearly seamless flush installation for beautiful integration to kitchen or entertainment area
Statement & Minimalist Collection Handles
Elevate the design of your wine refrigerator with one of MonogramaEURtms handles. HANDLES SOLD SEPARTELY
Illuminated Interior
Back wall lighting and overhead LED lights brighten the interior to easily select a perfect pairing
Delicate Storage
Beautifully crafted dark walnut wooden slats cradle wine bottles, designed to maintain label integrity
| Feature | Description |
|---|---|
| Adjustable Temperature Control | Yes |
| Collection | Minimalist, Statement |
| Connected Capabilities | Amazon Alexa, Google Home |
| Control Features | Child Lock, Door Alarm, Dual Temp Zone - Independent Upper & Lower Zones, Hi-Temp Alarm, Power On/Off |
| Control Type | Digital Temperature Display, Upfront Electronic Temperature Controls |
| Custom Panel Ready | 3/4-Inch Overlay Panels, Flush Inset Panels |
| Defrost Type | Cycle Defrost |
| Full Extension Slides | Yes |
| Interior Lighting | LED - Door Closed: On/Off Option; Door Open: Always On |
| Leveling System | 2 rear roller adjustable from front; 2 front legs |
| Number of Cooling Zones | 2 |
| OU Certified | No |
| Product Type | Wine Reserve |
| Proximity Lighting Control | Yes - On/Off Option, Multi key or in APP |
| Refrigerant Type | R600a |
| Removable Slide-Out Shelves | Yes |
| Sabbath Mode | Yes |
| Short Description | 24" Custom Panel Wine Reserve |
| Temperature Range | 41 degrees to 61 degree F |
| WiFi Connect | Built-In |
| Wine Racks | 6 Full Extension Soft Close, Wood Slats |
| Feature | Description |
|---|---|
| Case Color | Gray |
| Color Appearance | Custom Panel and Handle Required |
| Design Style | Custom Panel |
| Door Stops | 90 and 115 Degree |
| Door Style | Glass Door |
| Door Swing | Reversible Hinges |
| Handle | Customer Supplied - Optional Statement and Minimalist handle kits available |
| Installation | Built-In or Free-Standing, Side by Side Install Capable with ZIBC24PWII (Additional kit required: ZKAW) |
| Toe kick | Stainless |
| Feature | Description |
|---|---|
| Total Capacity (cubic feet) | 0 |
| Unit Capacity | 42 Wine Bottles |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 154 inches |
| Back Air Clearances | 0 inches |
| Case Depth Without Door | 21.65 inches |
| Height to Top of Hinge | 34.25 inches |
| Net Weight | 154 inches |
| Overall Depth | 23.85 inches |
| Overall Height | 35.1 inches |
| Overall Width | 23.74 inches |
| Side Air Clearances | 0 inches |
| Top Air Clearances | 0 inches |
| Feature | Description |
|---|---|
| Electrical Requirements | 120v; 60Hz; 2 A |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 2-year entire appliance, Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 12-year sealed system, Limited 2-year entire appliance, Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
