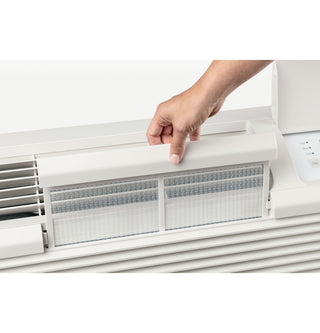

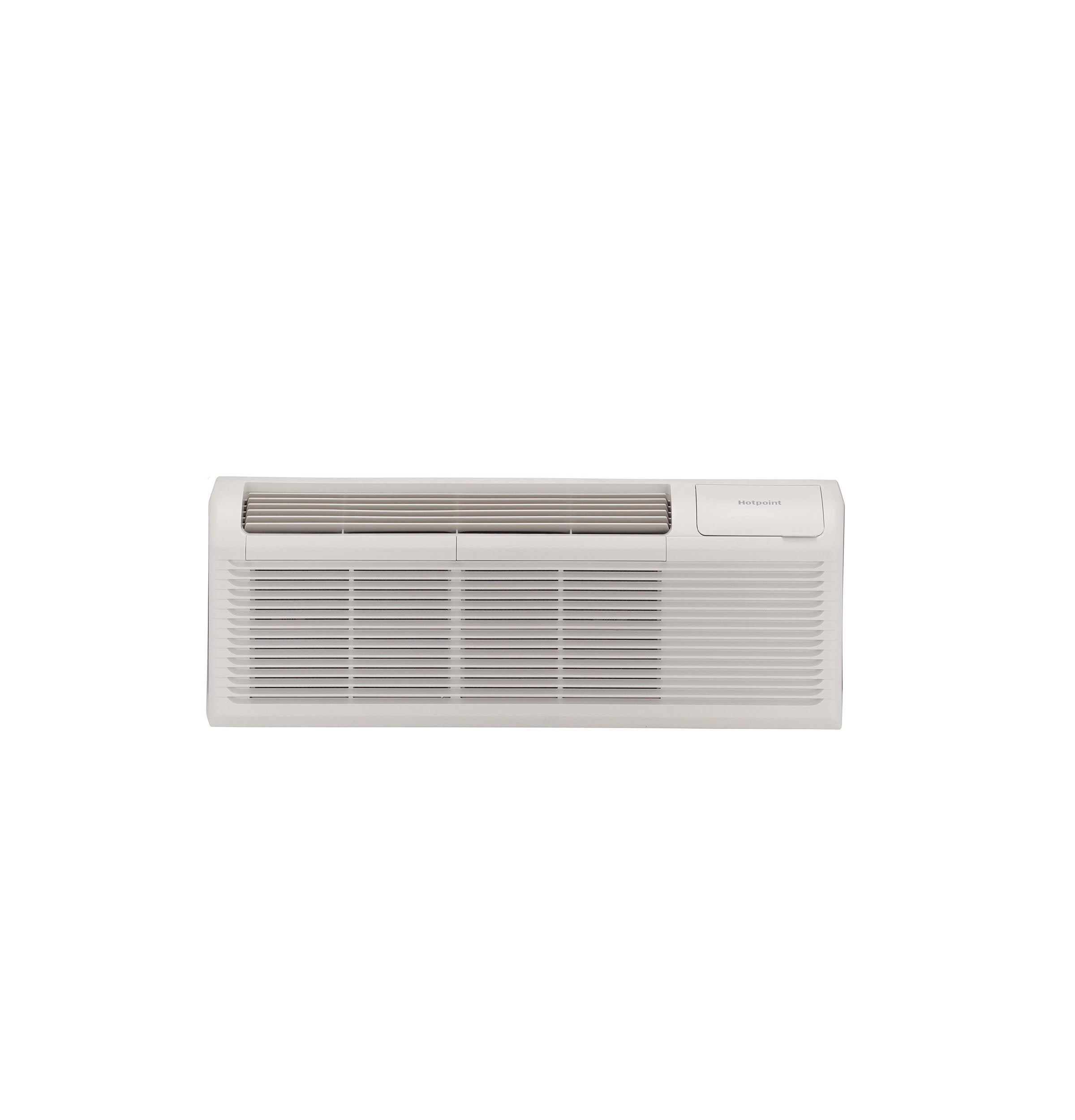

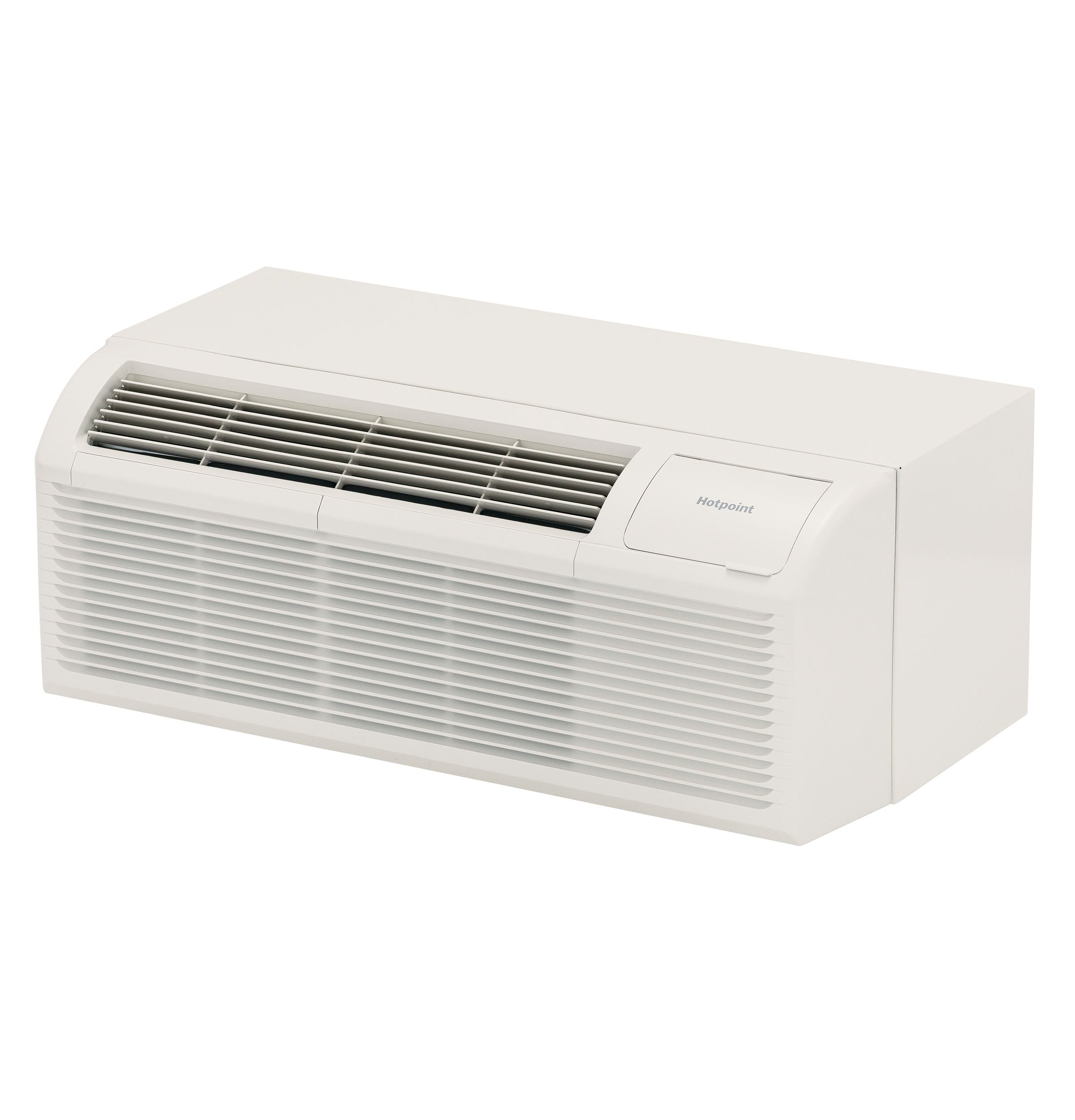

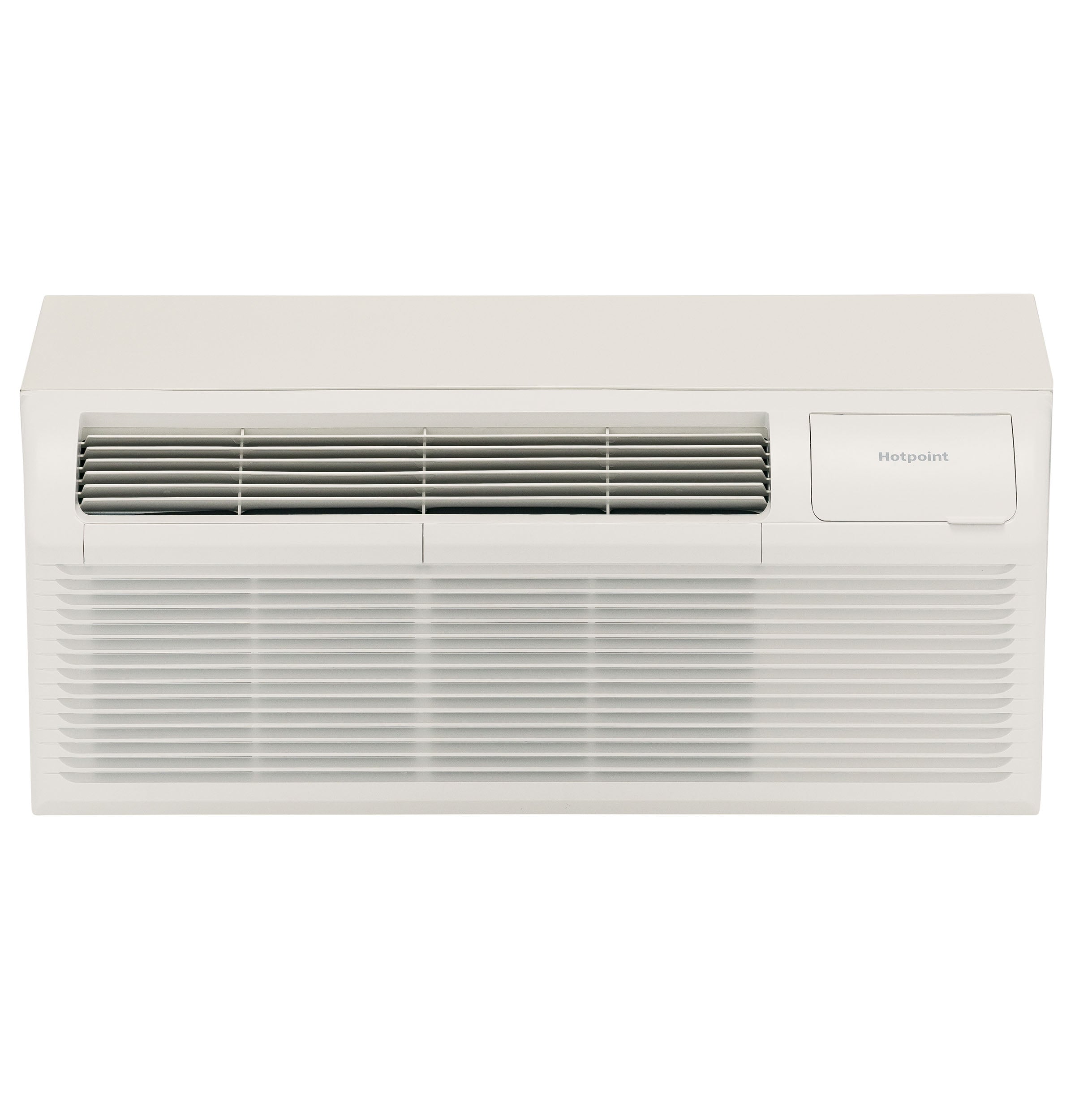

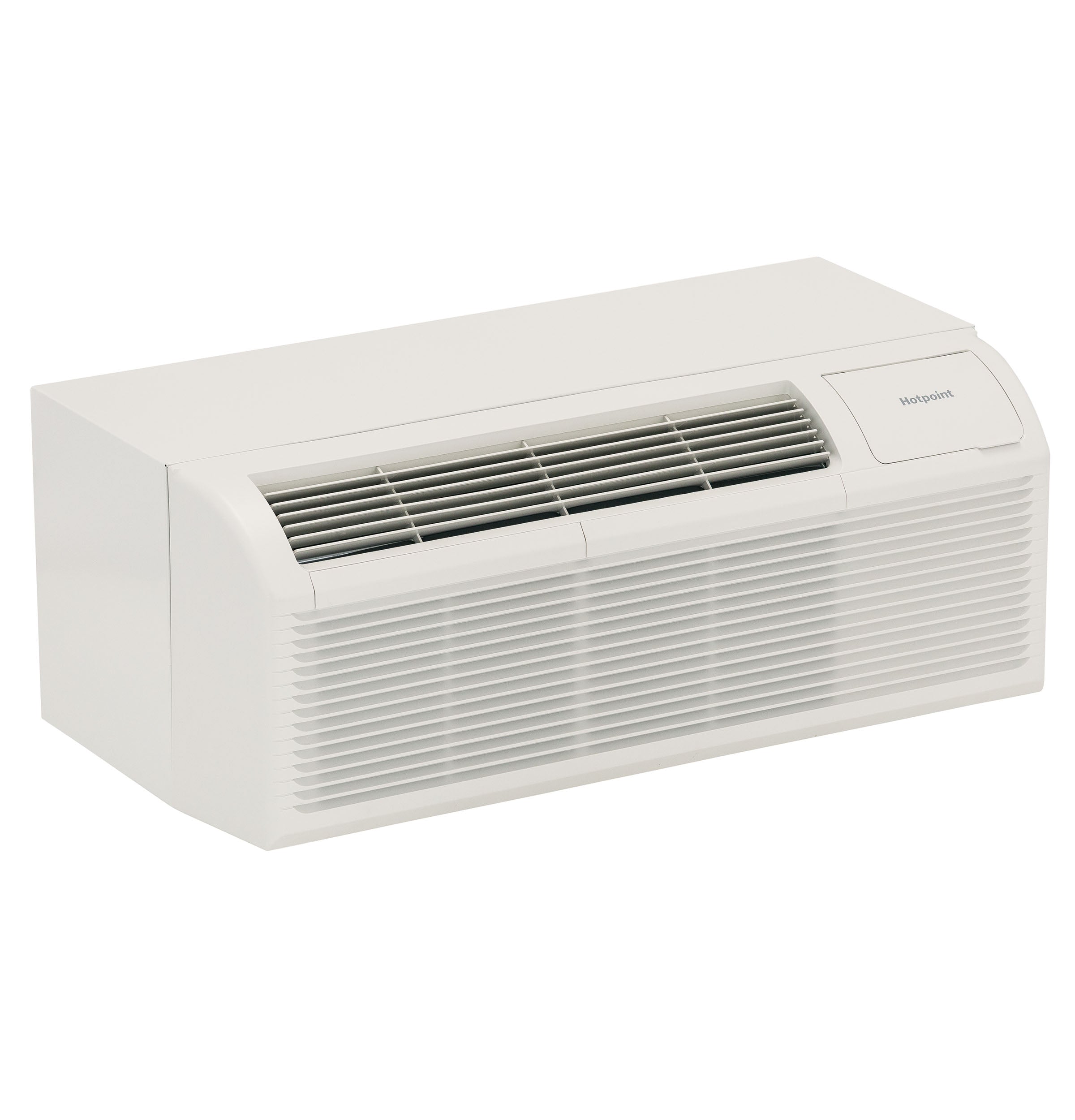

Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp
• Own this product? See Maintenance & Care
3-speed fan
Give guests control over their comfort with three fan speeds to choose from
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
| Feature | Description |
|---|---|
| Auto Power Recovery | Yes |

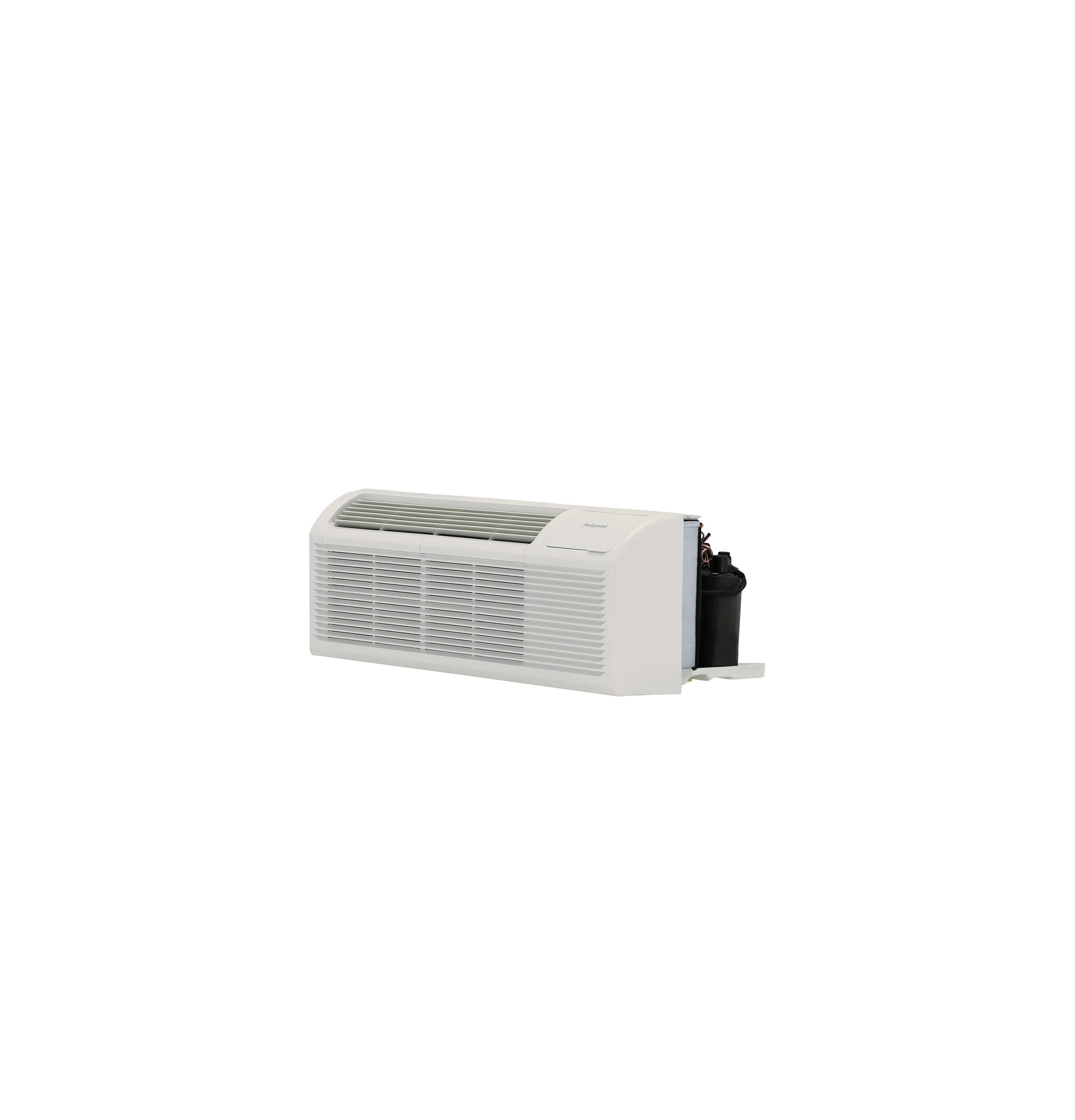

| Chassis Type | Slide-In |

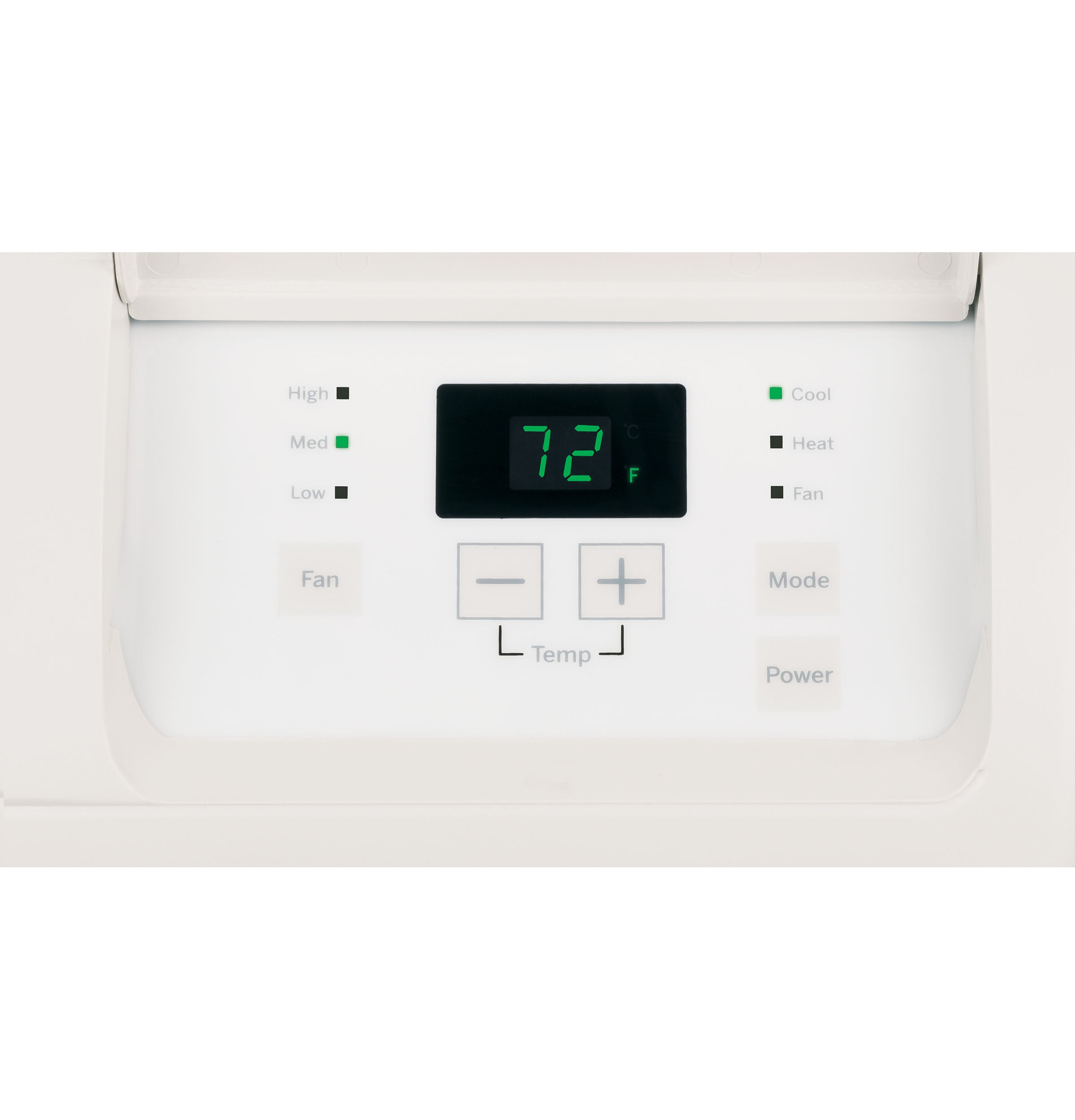

| Control Type | Electronic |
| Discharge Grille | 2-position |
| Fan Motor | 2 |
| Fan Speed Selections | 3 Cooling, 3 Fan Only, 3 Heating |
| Heat - Cool | Yes |
| Heat Pump | Yes |
| Heating - Reverse Cycle - COP | 3.4 |
| Heating System | Heat Pump with Resistance Backup |
| Manual Vent Control | Hidden |
| Outdoor Vent / Exhaust | Yes |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R32 |
| Rotary Compressor | Yes |
| Temperature Range | 62 - 80 F |
| Unit Features | Auto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Power Cord (LCDI) included, Remote Thermostat Compatibility |

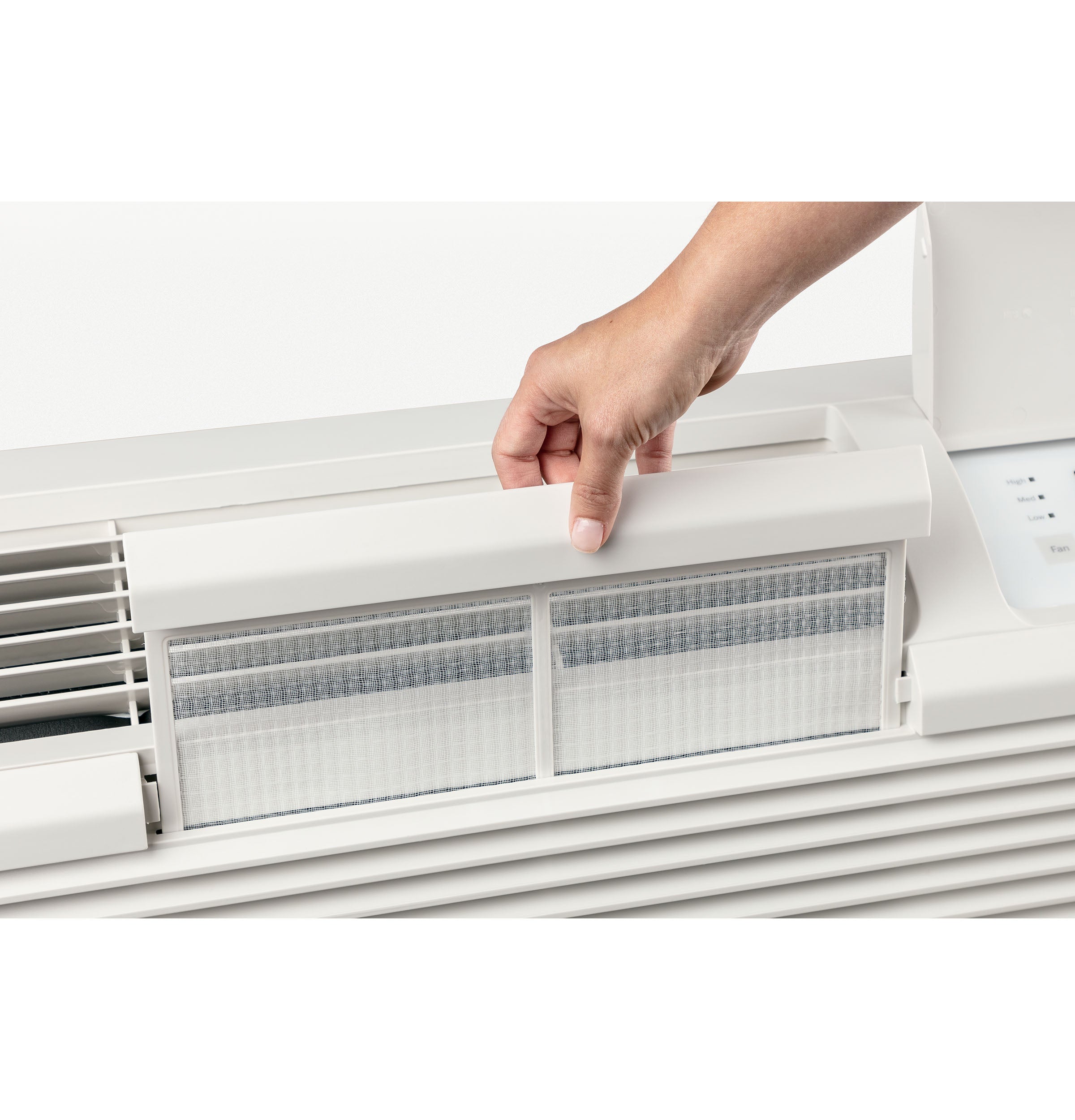

| Venting Features | Concealed Manual Vent Control, Vent Air Filter |
| Feature | Description |
|---|---|
| Color Appearance | White |

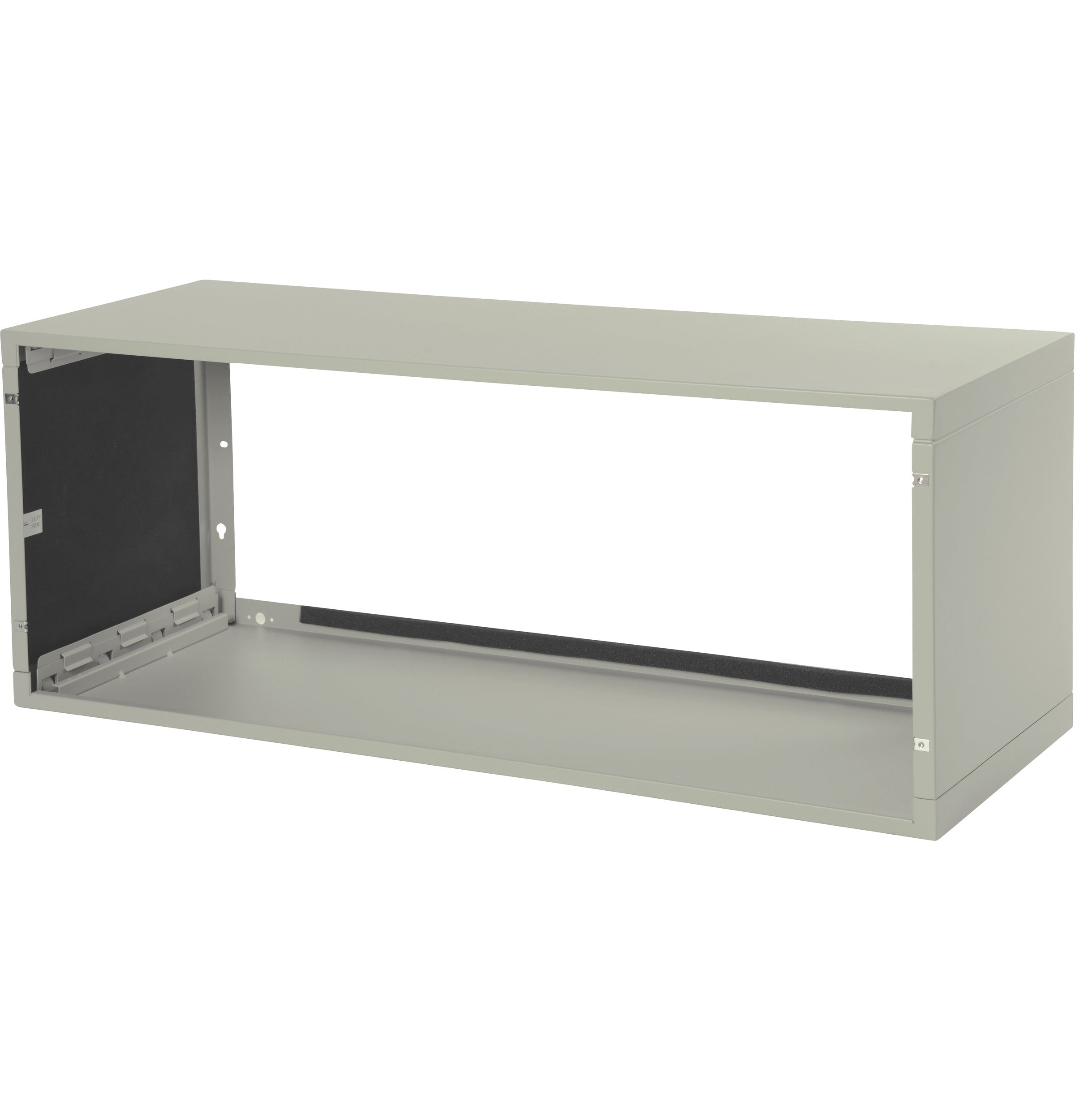

| Installation | Through-the-Wall |
| Feature | Description |
|---|---|
| CFM Indoor Fan High | 431 |
| CFM Indoor Fan Low | 332 |
| CFM Indoor Fan Medium | 385 |
| Cooling BTUH (MAX) | 9000.000000 |
| Cooling BTUH (MIN) | 8800 |
| Cooling EER (BTUH / Watt) | 11.4 |
| Heating - Reverse Cycle - BTUH | 8100/7900 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 112.9 inches |
| Net Weight | 102.5 inches |
| Overall Depth | 20.9 inches |
| Overall Height | 16.0 inches |
| Overall Width | 42.4 inches |
| Feature | Description |
|---|---|
| Cooling - Amperes | 3.46/3.75 |
| Cooling - Amperes; F.L. - Cooling | 3.5/3.8 |
| Cooling - Watts | 785/770 |
| Heating - Electric - Heater Amps | 15.3/13.7 |
| Heating - Electric - Heater Watts | 3535/2900 |
| Heating - Reverse Cycle - Amps | 3.04/3.28 |
| Heating - Reverse Cycle - Watts | 695/680 |
| Voltage (MAX) | 230.000000 |
| Voltage (MIN) | 208 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
