GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and Corrosion Protection 15,000 BTU, 230/208 Volt
Out of stock. THE ETA OF BACKORDER PRODUCTS IS APPROXIMATELY 8-12 WEEKS FROM YOUR CHOSEN DELIVERY DATE. THIS CAN VARY BY PRODUCT OR BRAND. WE WILL CONTACT YOU ONCE THE ORDER IS READY FOR DELIVERY. FEEL FREE IN CONTACT US IF YOU NEED ASSITANCE.
• Own this product? See Maintenance & Care
Variable Speed Inverter Technology (4K - 15K BTU)
Control TypeTactile touch pad with LED Display
R454B - Most environmentally friendly refrigerant on the market
Overall Depth19.812500
Heat pump down to 0AdegF
Cooling BTUH (MAX)14300.000000

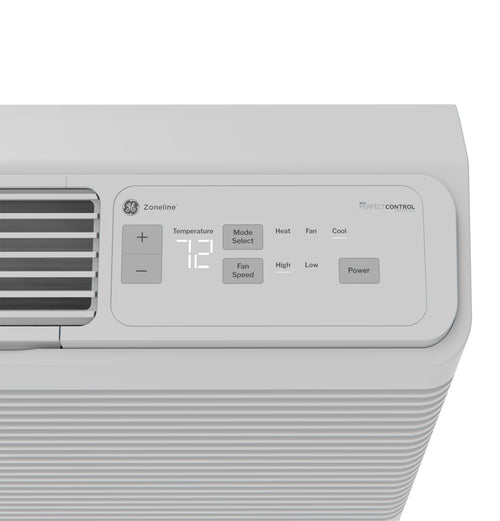

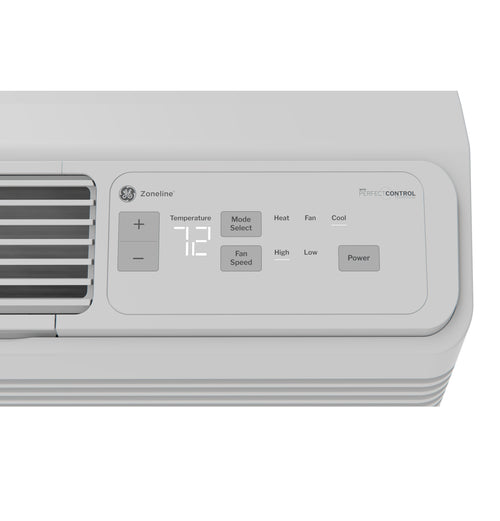

Electronic touch control with LED display
Twin rotor compressor (Ultra-Quiet)
On-board WIFI SmartHQa,,C/ Management ready
Warranty NotesSee written warranty for full details
| Feature | Description |
|---|---|
| Central Desk Control Compatibility | Yes |
| Chassis Type | Slide-In |
| Control Type | Tactile touch pad with LED Display |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Fan Cycle Switch | Yes |
| Fan Motor | 3 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating |
| Filter Type | Slide-Out |
| Freeze Sentinel | Yes |
| Heat - Cool | Yes |
| Heat Sentinel | Yes |
| Heating - Reverse Cycle - COP | 3.4 |
| Heating System | Heat Pump |
| HSPF2 Rating | 7 |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Power Factor | 95 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R454B |
| Rotary Compressor | Yes |
| SEER2 | 16 |
| Sensible Heat Ratio | 0.75 |
| Temperature Limiting | Electronic 7-Step |
| Temperature Range | 60 - 85 F |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter |
| WiFi Connect | Built-In |
| Zoneline Features | "Smart Fan" Fan Cycle Control, 3-Stage Heating Design, Auto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Heat Pump with Supplemental Resistance Heat, Heat Sentinel, Quick Heat Recovery, Reverse Cycle Defrost |
| Feature | Description |
|---|---|
| Color Appearance | Grey White |
| Feature | Description |
|---|---|
| CFM Indoor Fan High | 525 |
| CFM Indoor Fan Low | 250 |
| Cooling BTUH (MAX) | 14300.000000 |
| Cooling BTUH (MIN) | 14200 |
| Cooling EER (BTUH / Watt) | 12.8 |
| Dehumidification (pts./hr.) | 2 |
| Vent CFM (high fan at zero ESP) | 33 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 122 inches |
| Net Weight | 112 inches |
| Overall Depth | 19.81 inches |
| Overall Height | 15.84 inches |
| Overall Width | 39.8 inches |
| Feature | Description |
|---|---|
| Cooling - Amperes | 6.3 |
| Cooling - Watts | 1345 |
| Heating BTUH | 4,000 - 14,000 |
| Heating - Electric - Heater Amps | 5.5 |
| Heating - Electric - Heater Watts | 1165 |
| Voltage (MAX) | 230.000000 |
| Voltage (MIN) | 208 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
