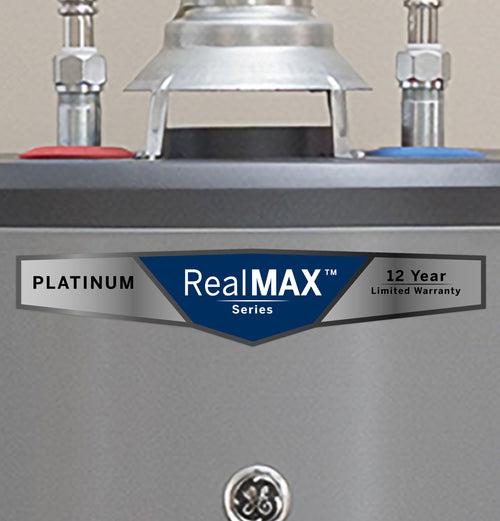

GE RealMAX Platinum 50-Gallon Tall Natural Gas Ultra Low-Nox Atmospheric Water Heater
• Own this product? See Maintenance & Care
Ultra Low NOx Burner
Low Emissions environmentally friendly burner. Meets requirements California & Utah Residents: this water heater model meets or exceeds Ultra-Low NOX (ULN) emissions requirements for all air quality management districts.
Household Size
Provide hot water for the whole family of 3 to 5+ persons
Real Capacity
Get the most hot showers from the only water heater that holds a true 50 gallons of water. (Compared to steel tank water heaters per DOE rated gallon capacity.)
Maximum Performance
Live comfortably with this best in class unit that delivers 75 gallons of hot water in the first hour. (50 Gallon model as Measured through DOE First Hour Rating)
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service.
Leading Warranty
RealMAX water heaters carry 12 year tank and parts limited warranty.
| Feature | Description |
|---|---|
| Altitude Rating | 10100 |
| Anode Rod | Magnesium |
| Bin Testing | High |
| Configuration | Tall |
| Controls | LED Indicator |
| Drain Valve Type | Brass |
| Family Size | 3-5 or more People |
| Fuel Type | Natural Gas |

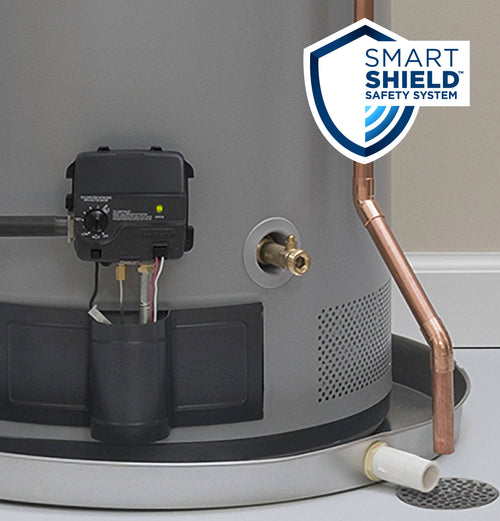

| FVIR Safety System | Prevents accidental ignition of flammable vapors |
| Gas Valve | Self Powered |
| Height Description | Tall |
| Overheat Protection | Dry Burning Protection |
| Pilot Light Window / Button | Yes |
| Product Type | Atmospheric Ultra Low NOx |
| Temp & Pressure Relief Valve | Yes |
| Temperature Setting | 45-160Adeg F Range |
| UEF | .64 |
| Vent | Atmospheric |
| Water Connection Location | Top |
| Feature | Description |
|---|---|
| Color Appearance | Gray |
| Feature | Description |
|---|---|
| Unit Capacity | 50 Gallons |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 169 inches |
| Connection Sizes - Hot Water Outlet (MNPT) | 3 inches |
| Connection Sizes - Water Inlet (MNPT) | 3 inches |
| Height to Gas Control | 11.25 inches |
| Net Weight | 161 inches |
| Overall Depth | 22.0 inches |
| Overall Height | 61.38 inches |
| Overall Width | 22.0 inches |
| Product Diameter | 22 inches |
| Product Height (to top of unit) | 58 inches |
| Product Height (to top of water inlet/outlet connections) | 59.5 inches |
| Vent Size | 3 inches |
| Feature | Description |
|---|---|
| Burner BTU Size (k) | 40 |
| First Hour Delivery GPH | 82 |
| Feature | Description |
|---|---|
| Labor Warranty | 1-year limited |
| Parts Warranty | 12-year limited |
| Warranty Notes | See written warranty for full details |
