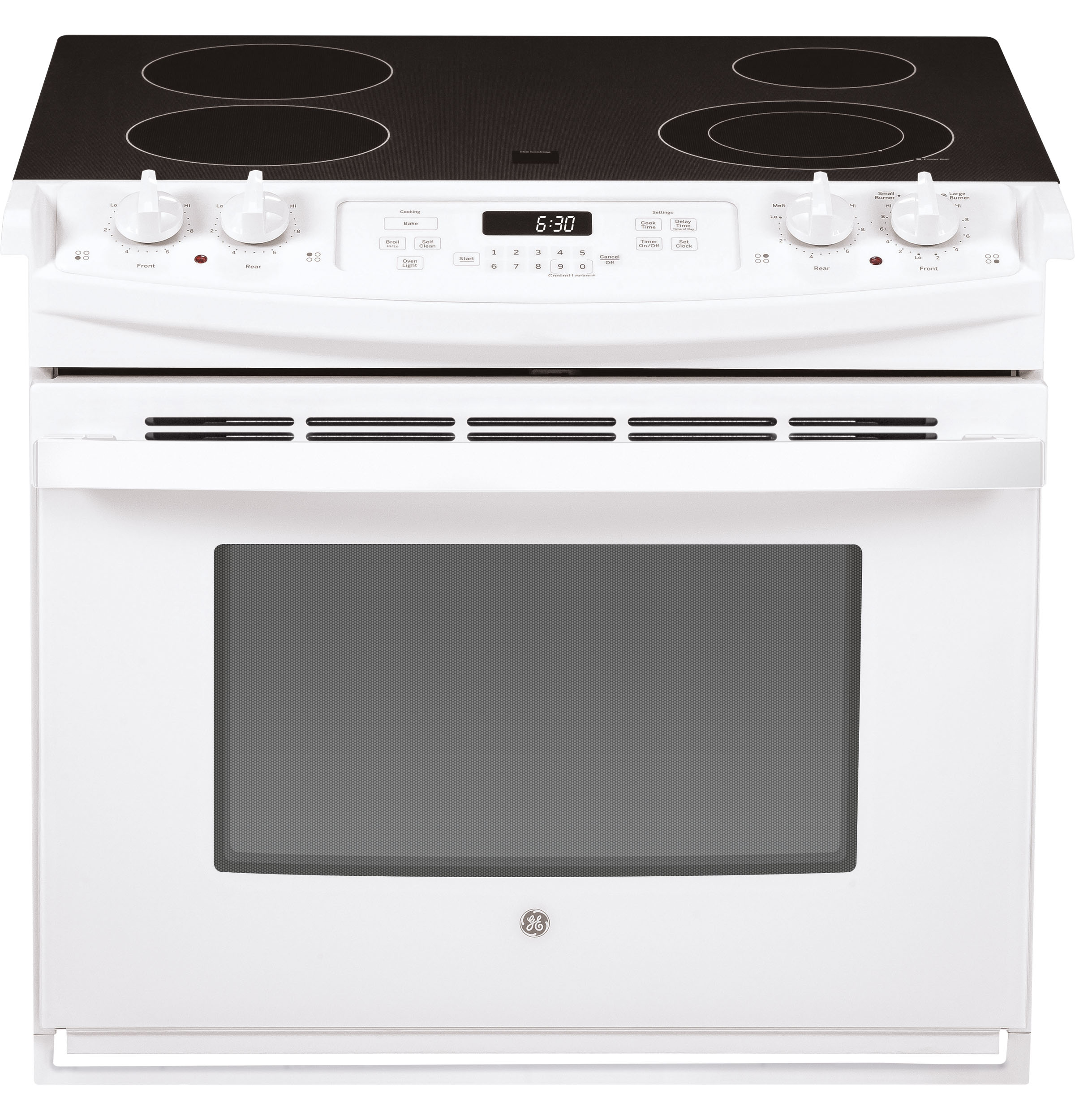

GE® 30" Drop-In Electric Range
SKU: JD630DTWW
9"/6" Power Boil element
Produces rapid, powerful heat
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Ceramic glass cooktop
Smooth cooktop easily wipes clean
Black gloss oven interior
Enjoy a clean and sleek appearance
Dual-element Bake
Upper and lower elements produce even heat and great results
Electronic oven controls
Electronic touch pads are easy to operate
| Feature | Description |
|---|---|
| Control Location | Front |
| Control Type | Digital Temperature Display, Electronic, Touchpads |
| Cooking Technology | Traditional |
| Cooktop Burner Type | Radiant, Smoothtop |
| Cooktop Surface | Overhanging Cooktop, White Patterned Ceramic Glass |
| Cooktop Type | Radiant Smoothtop |
| Element - Left Front | 8" 2000W |
| Element - Left Rear | 8" 2000W |
| Element - Right Front | 9"/6" 3000W Power Boil |
| Element - Right Rear | 6" 1200W |
| Fuel Type | Electric |
| Hot Surface Indicator Lights | 4 |
| Interior Oven Light | 1 Incandescent |
| Melt Setting | Yes |
| OU Certified | No |
| Oven Cleaning Type | Self-Clean |
| Oven Control Features | Audible Preheat Signal, Auto Oven Shut-Off with Override, Certified Sabbath Mode, Control Lock Capability, CAdeg or FAdeg Programmable, Delay Bake Option With Cook & Hold, Electronic Clock & Kitchen Timer |
| Oven Features | 6-Pass Bake Element, 6-Pass Broil Element |
| Oven Rack Features | 2 Oven Racks, 7 Rack Positions |
| Product Type | Drop-In |
| Sabbath Mode | Yes |
| Self-Clean Oven Door Lock | Automatic |
| Feature | Description |
|---|---|
| Color Appearance | White on White |
| Control Knobs | Color-Matched, Weighted |
| Handle | Color-Matched, Designer Style |
| Installation | Flush Appearance |
| Oven Door Features | Big View Oven Window, Glass Door |
| Feature | Description |
|---|---|
| Total Capacity (cubic feet) | 4.400000 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 179 pounds |
| Cabinet Opening | 30 inches |
| Cabinet Width | 30.0 inches |
| Cooktop Width | 31.25 inches |
| Depth with Door Open | 44.63 inches |
| Depth Without Handle | 25.75 inches |
| Net Weight | 152 pounds |
| Oven Interior Dimensions (W x H x D) (in.) | 24 inches |
| Overall Depth | 28.5 inches |
| Overall Height | 27.0 inches |
| Overall Width | 31.25 inches |
| Feature | Description |
|---|---|
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| Bake Wattage | 3410W |
| Broiler Wattage | 3420W |
| KW Rating at 208V | 8.9 |
| KW Rating at 240V | 11.9 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
