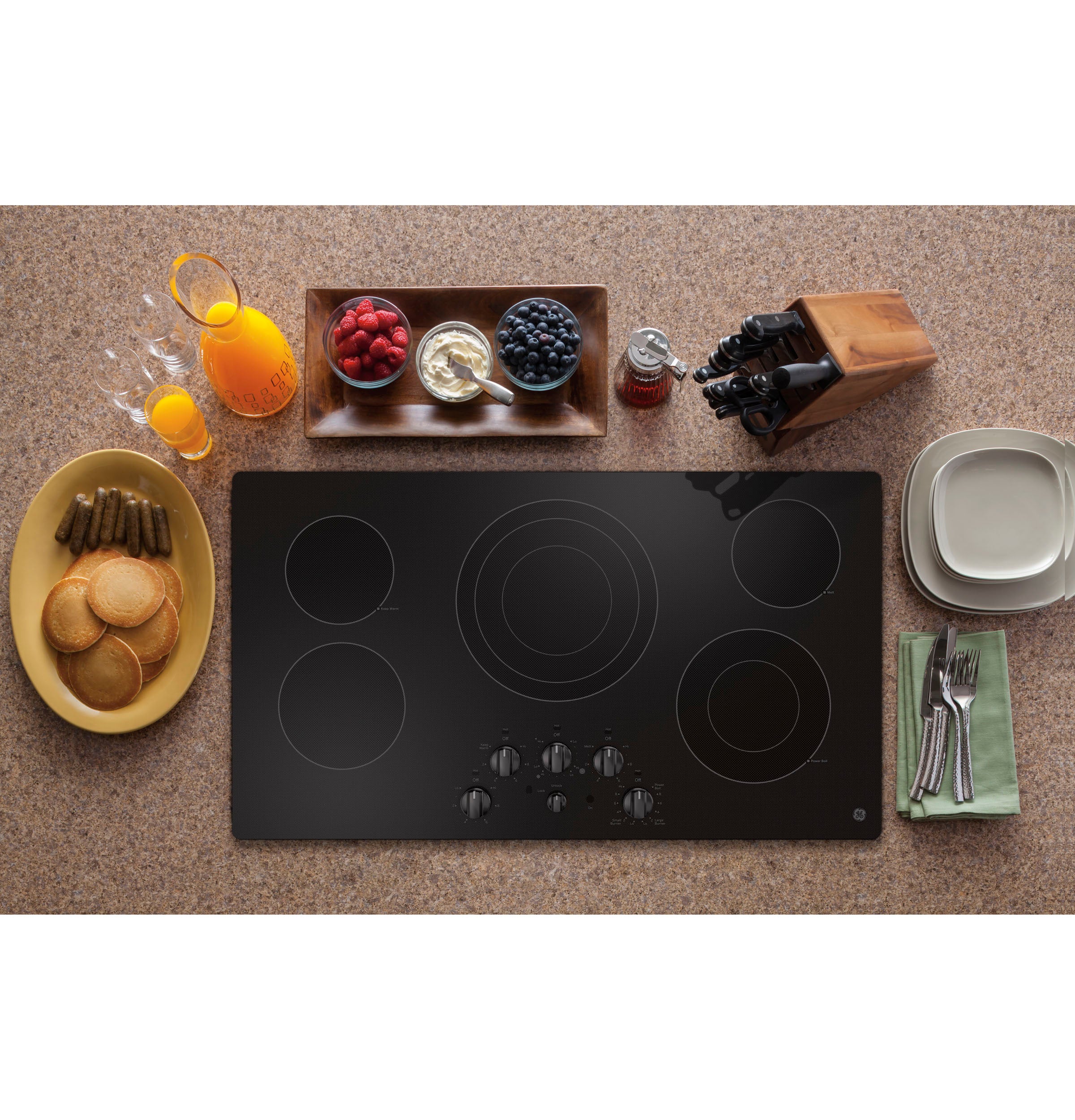

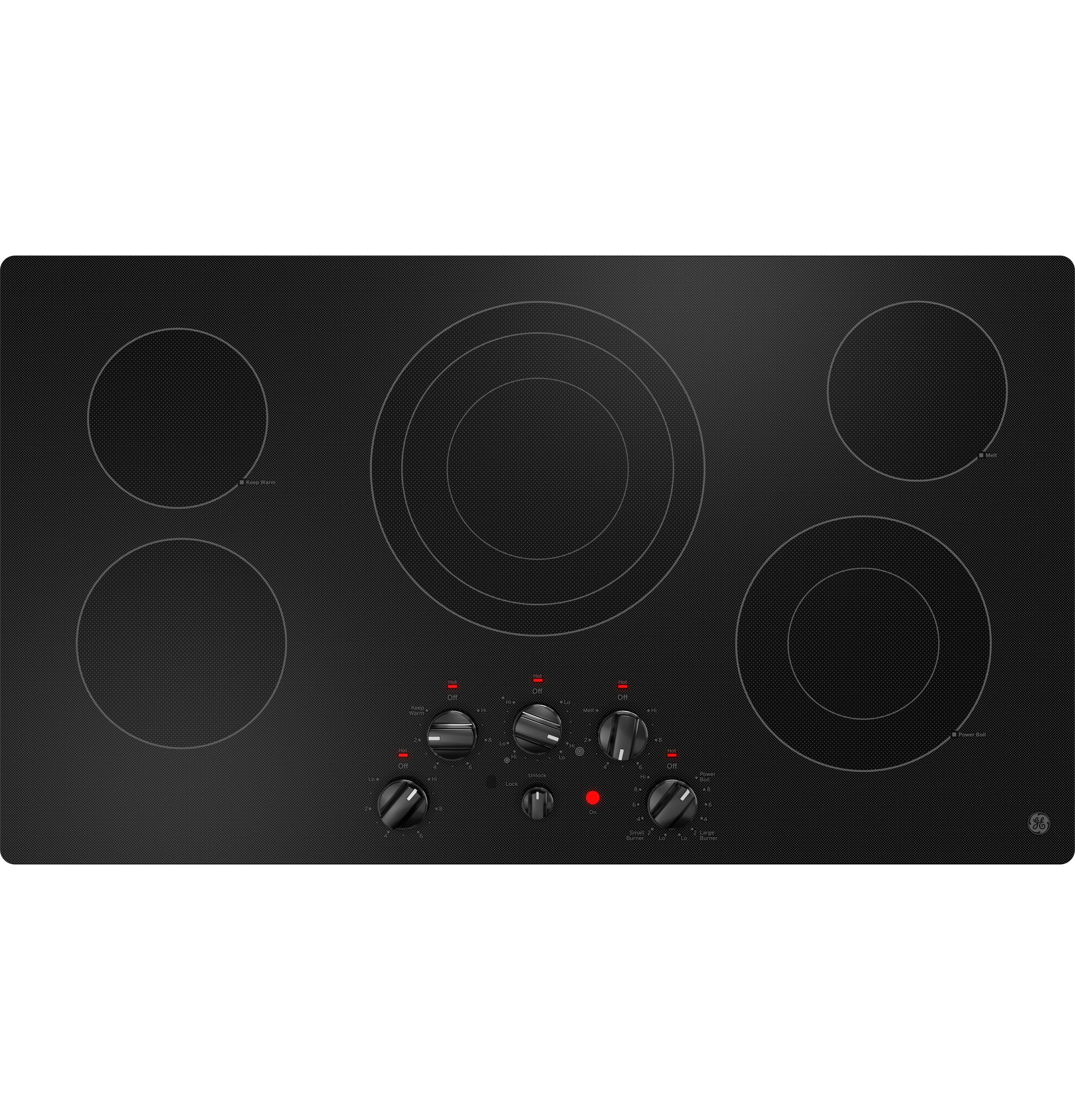

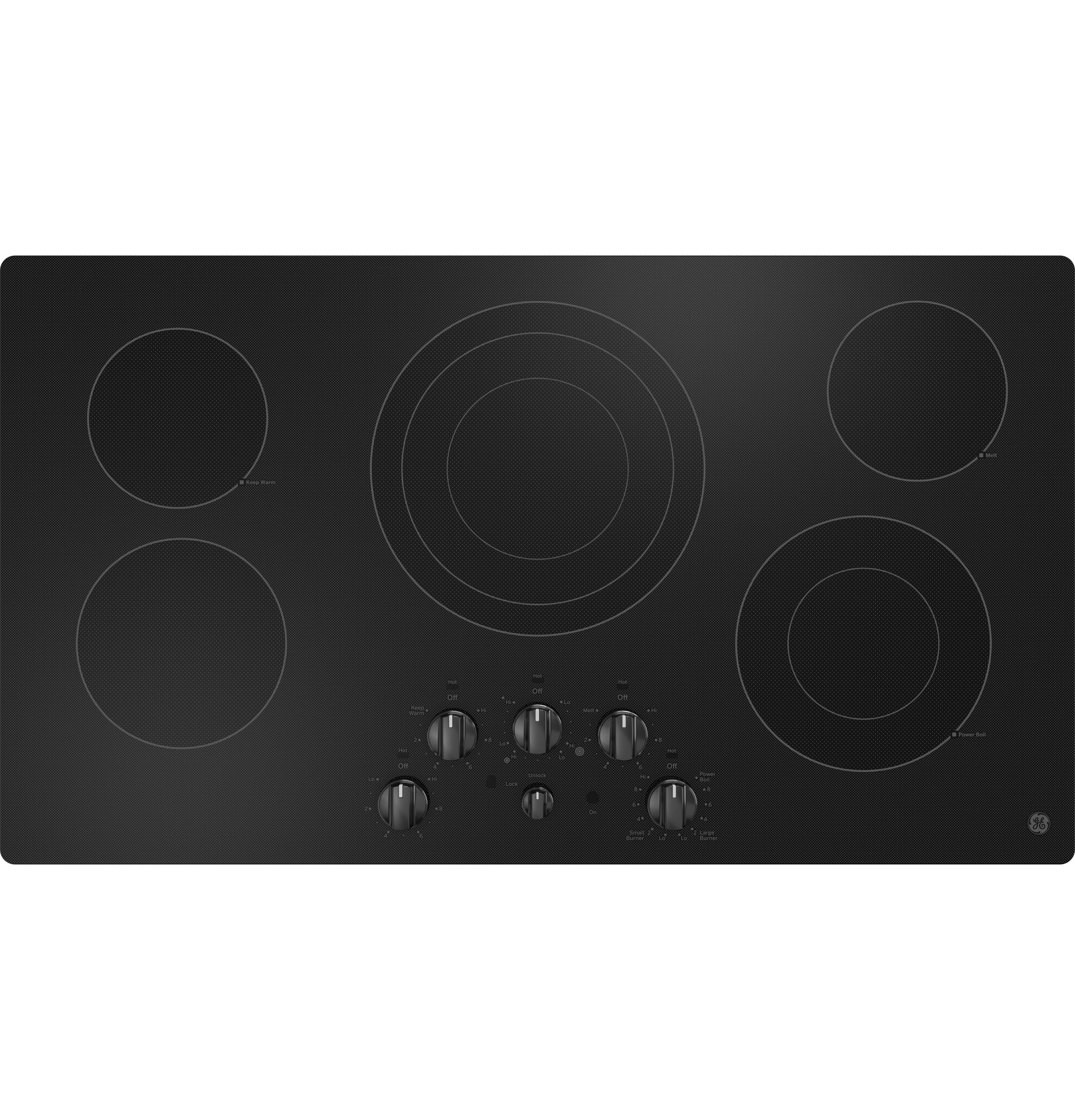

GE® 36" Built-In Knob Control Electric Cooktop
SKU: JEP5036DTBB
7% off

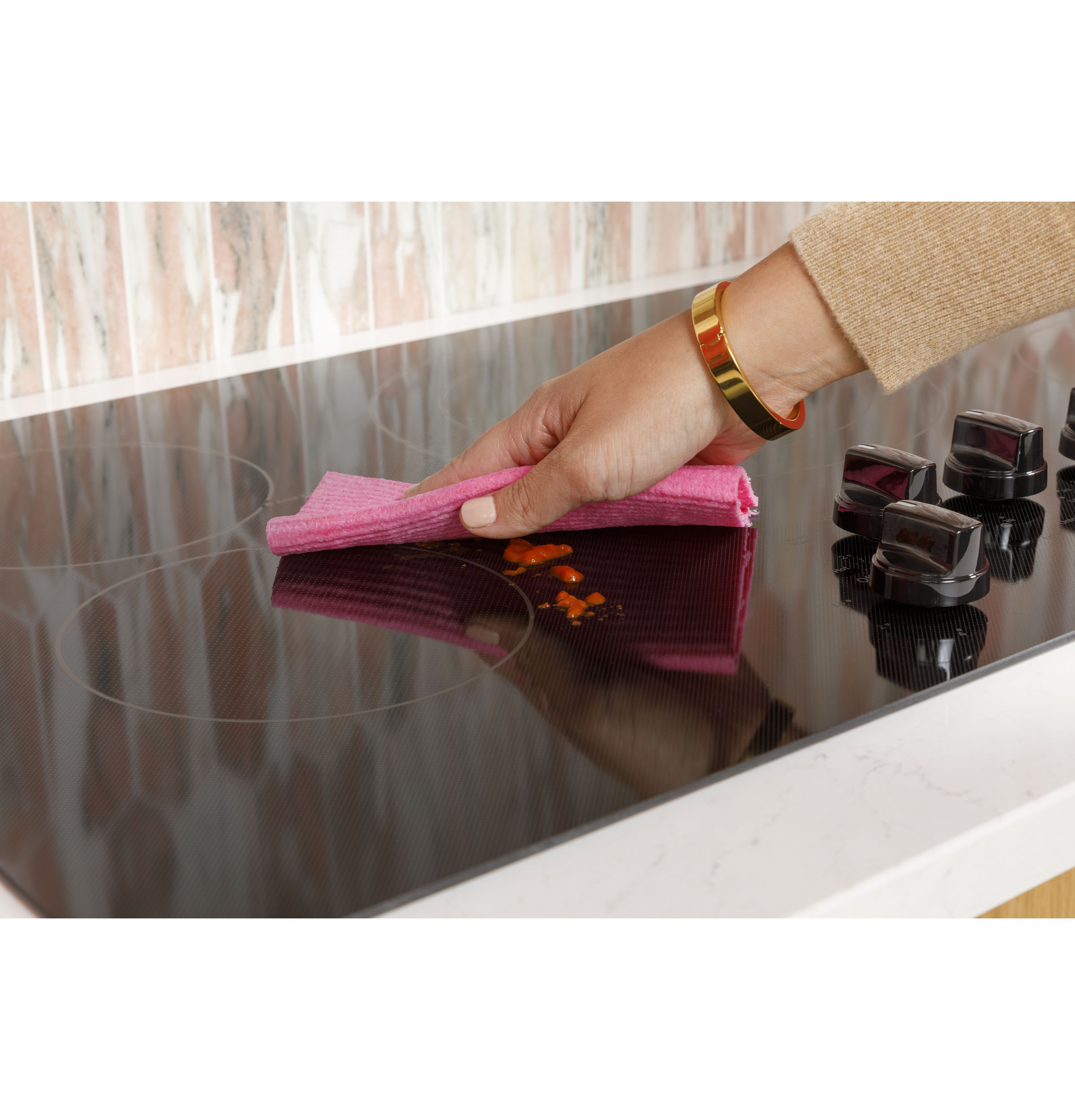

Easy Clean Surface
A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

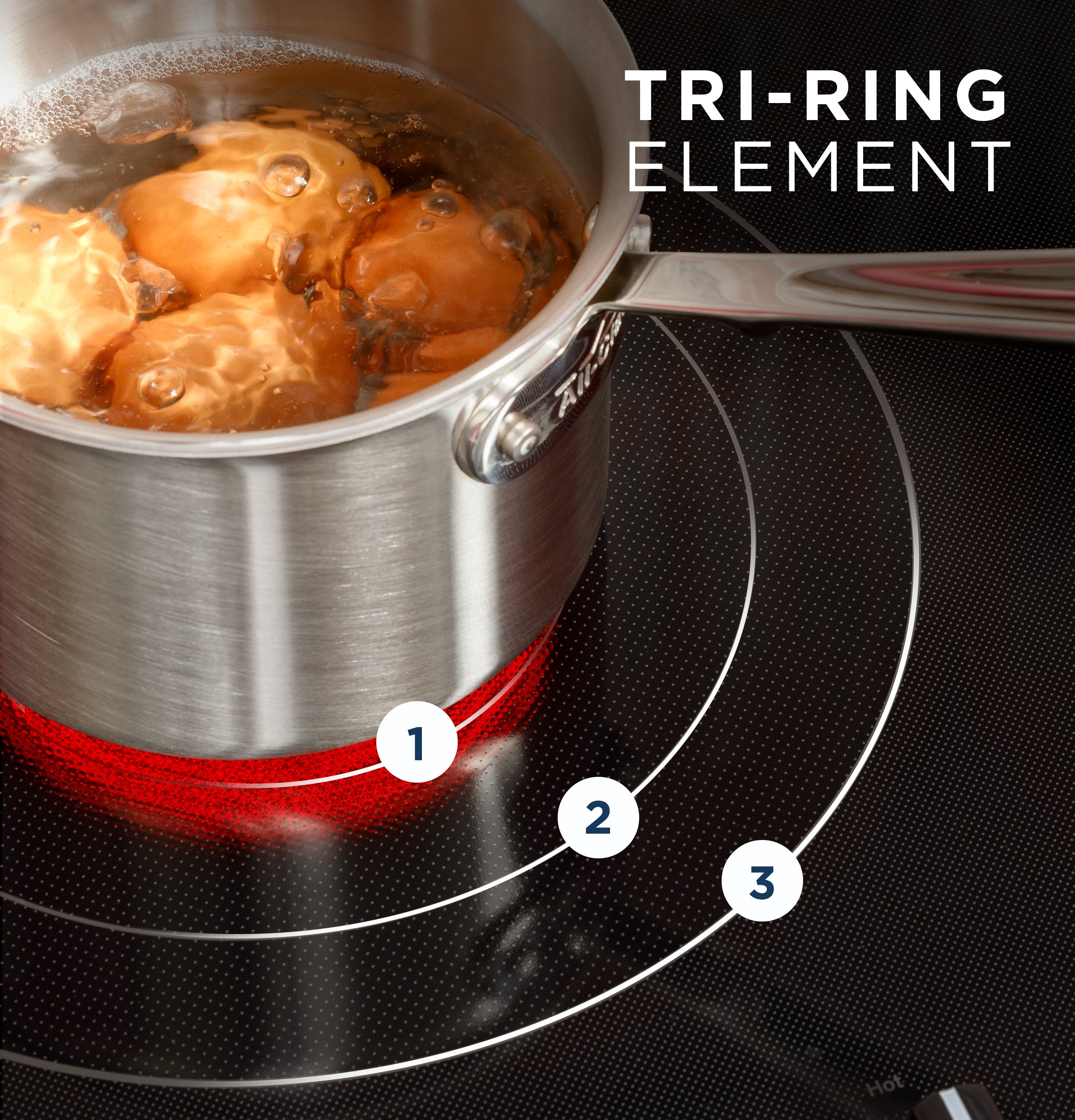

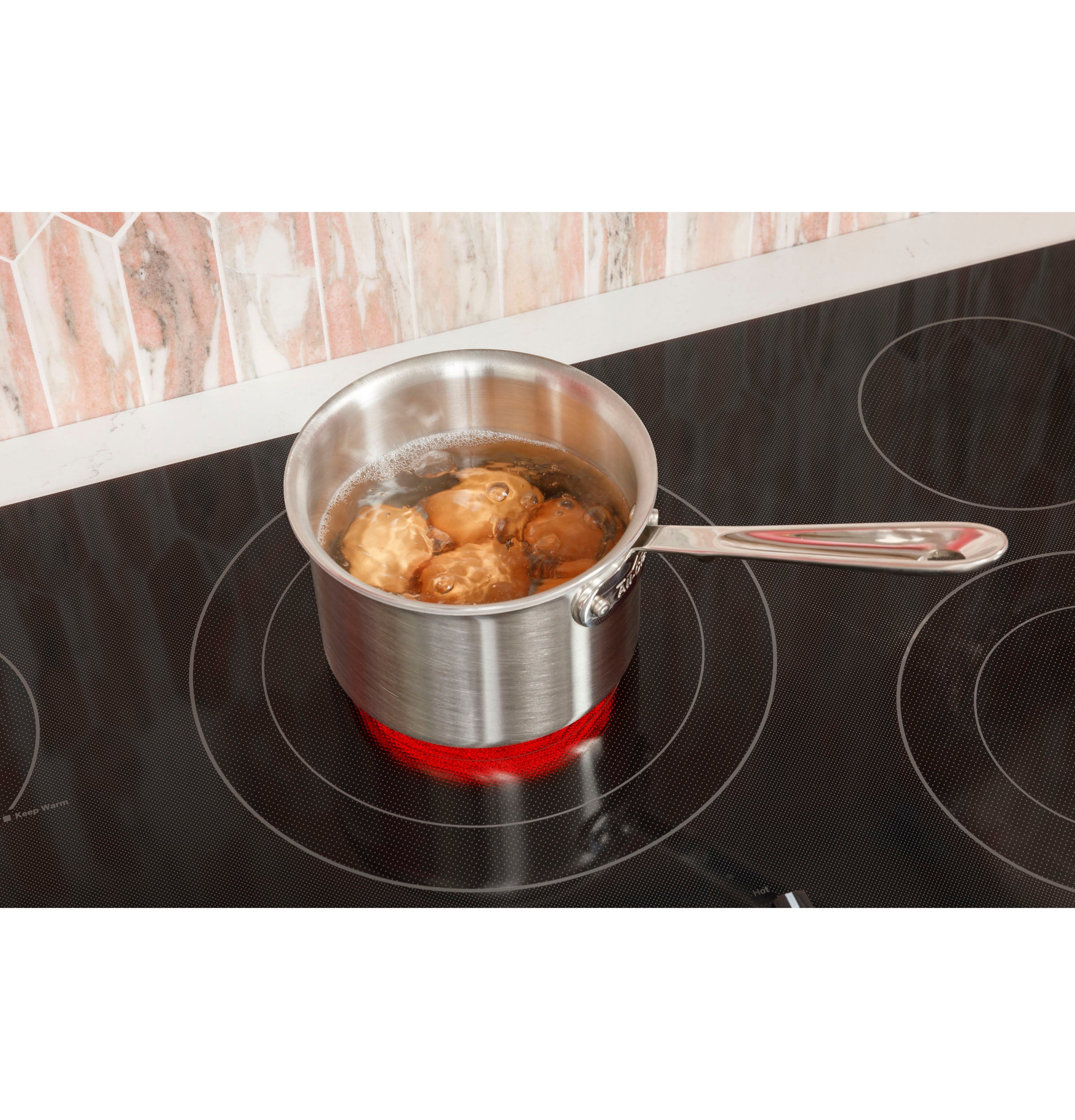

Power Boil on Tri-Ring Element
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,000-watt flexible element

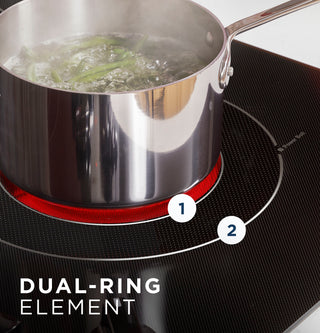

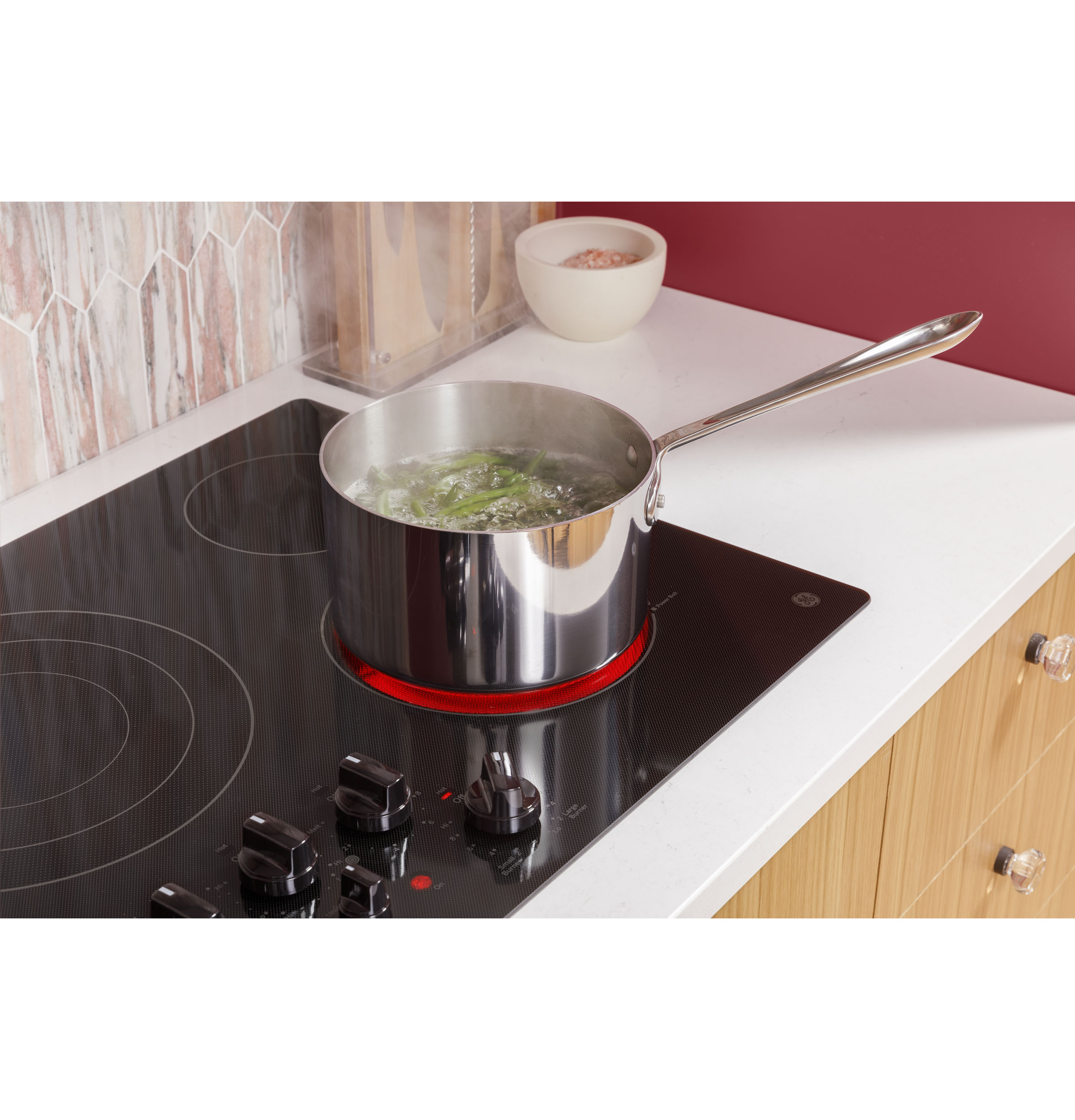

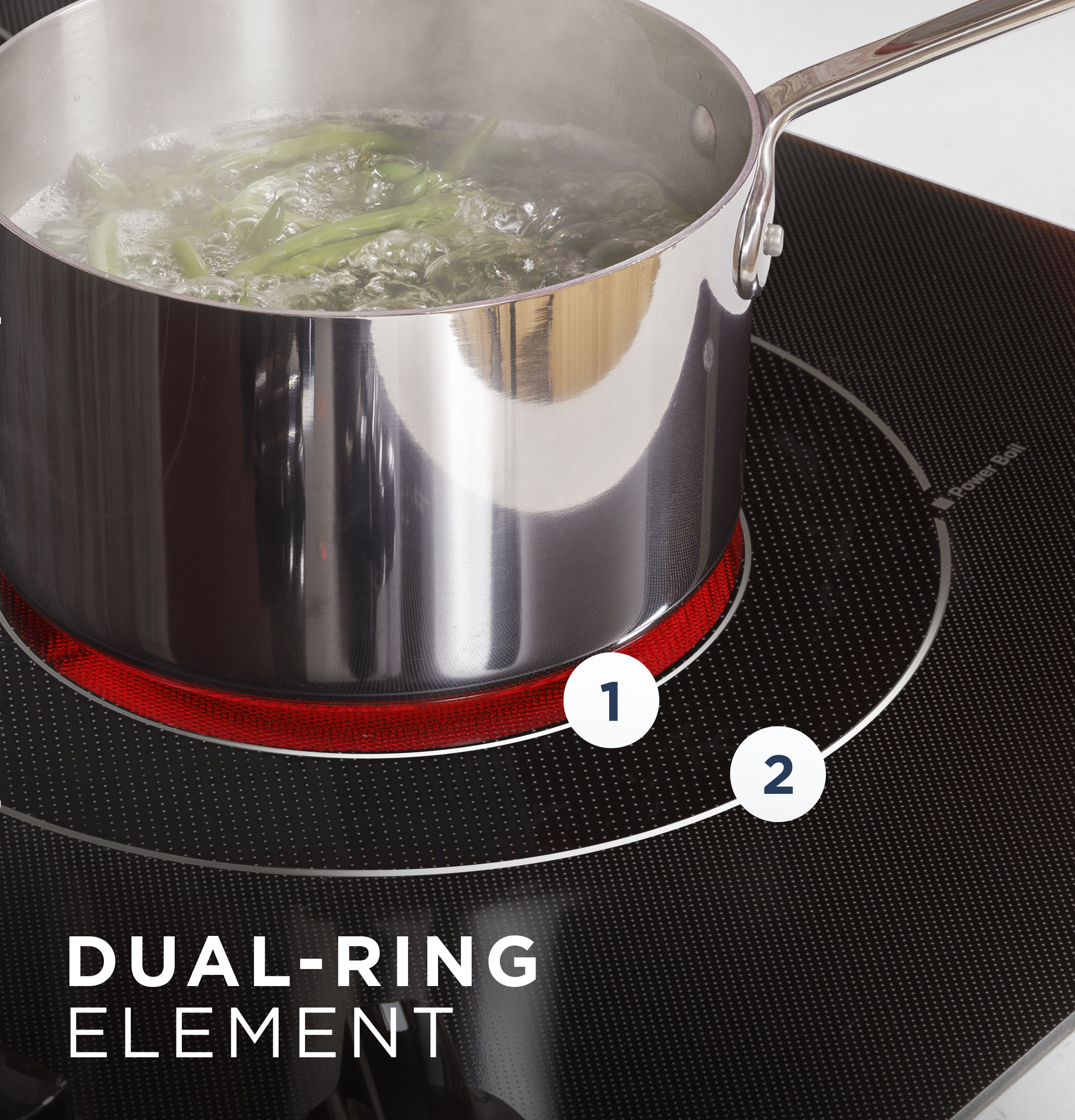

Power Boil Dual-Ring Element (2,400W)
Cook more dishes quickly with an additional 2,400-watt flexible cooking element that rapidly boils water in different pan sizes
Keep Warm Setting
This electric cooktop''s 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

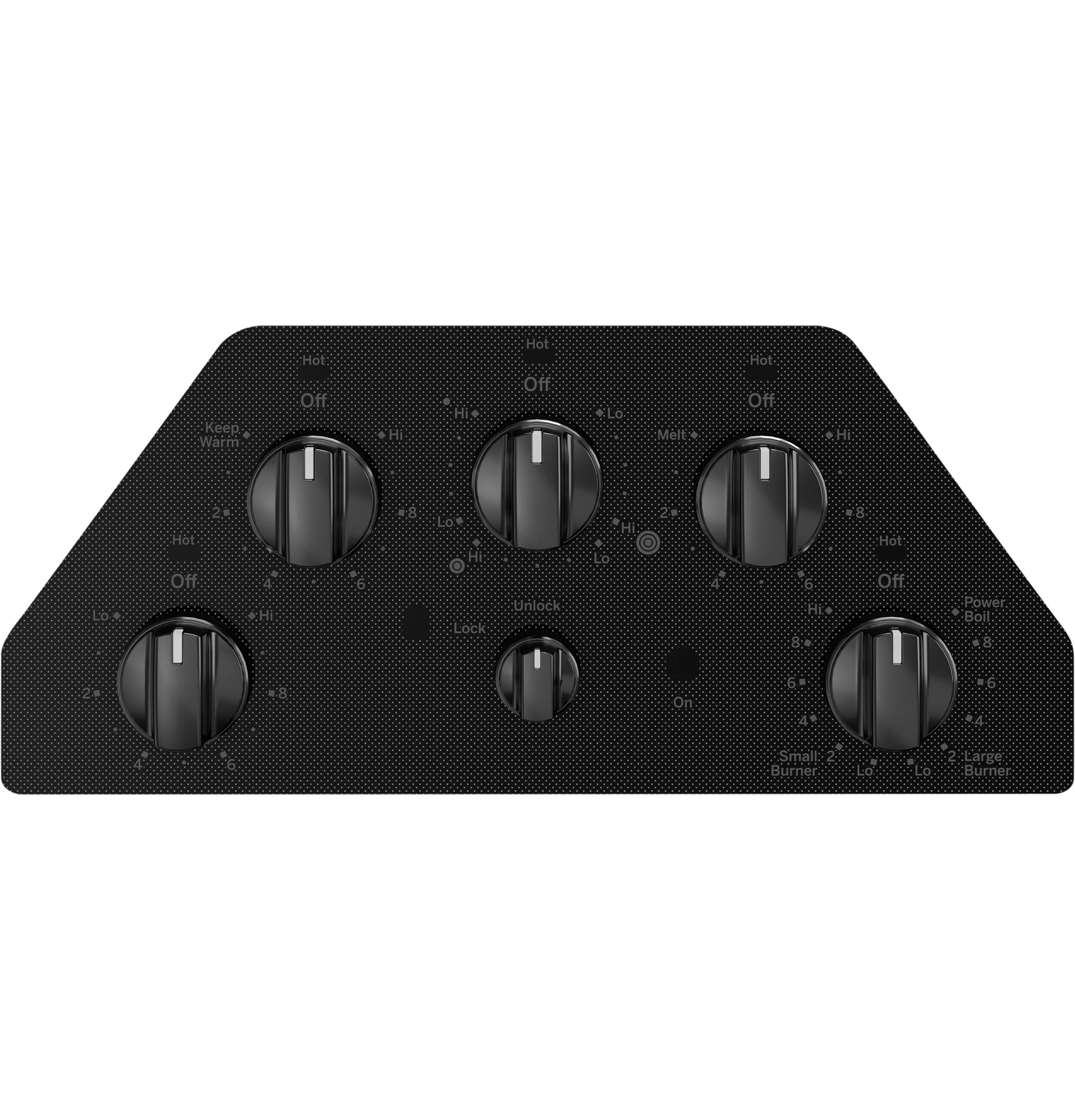

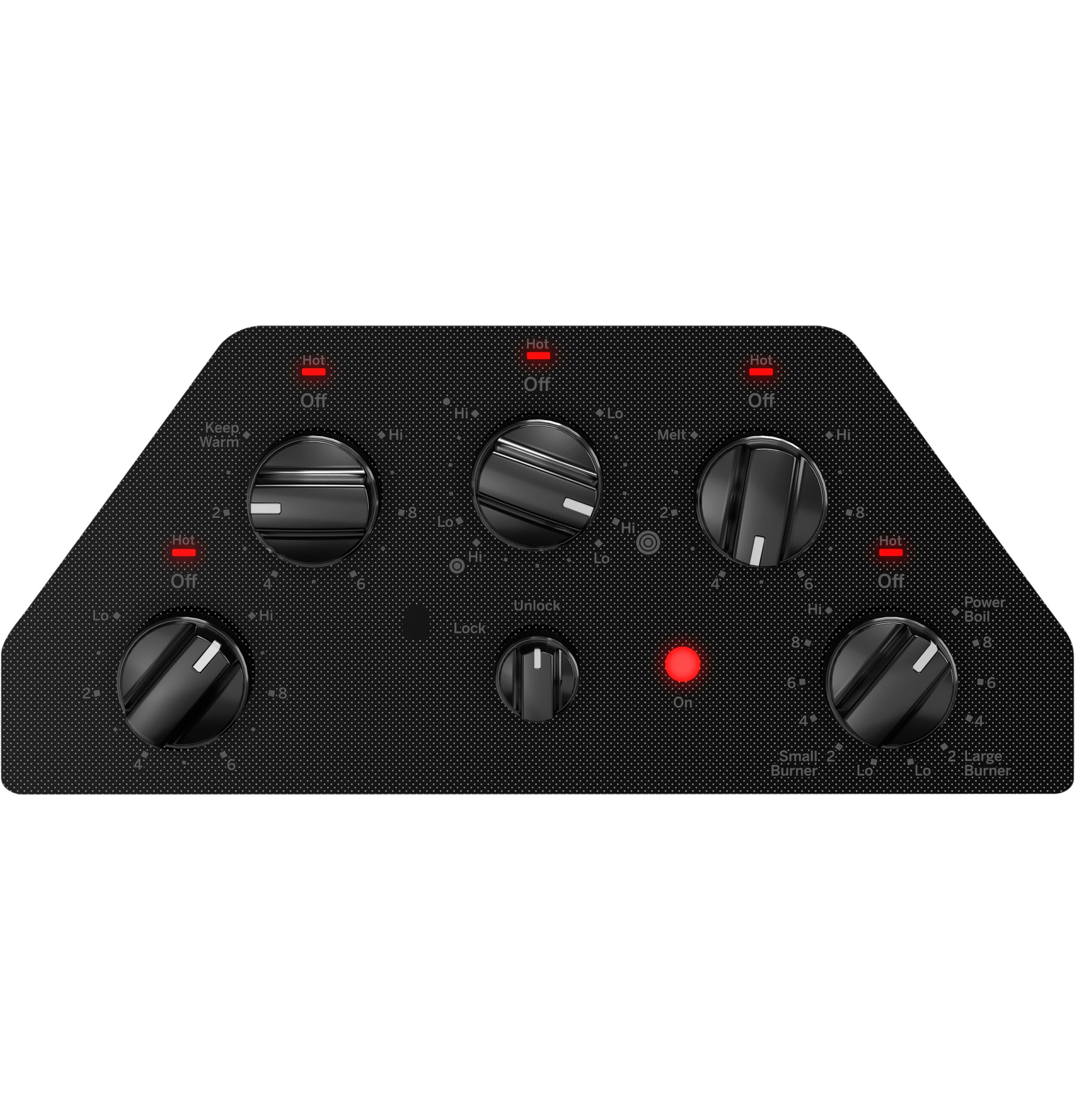

Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

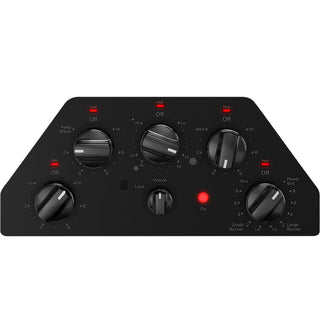

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights
| Feature | Description |
|---|---|
| Control Location | Front Center |
| Control Type | Knob (Infinite switch) |
| Cooktop Burner Type | 5 Ribbon, Smoothtop |
| Cooktop Control Features | Keep-Warm Setting, Melt Setting |
| Cooktop Type | Radiant Smoothtop |
| Element - Center | 12"/9"/6" 3000W Tri-ring Power Boil |
| Element - Left Front | 7" 1500W (Keep Warm) |
| Element - Left Rear | 6" 1200W |
| Element - Right Front | 8"/5" 2400W Power Boil |
| Element - Right Rear | 6" 1200W (Melt) |
| Filler trim kit | JXTR32B (not included) |
| Fuel Type | Electric |
| Indicator Lights | 5 Hot Surface, Red, Surface Element "ON" |
| Melt Setting | Yes |
| Product Type | Cooktop |
| Timer | Yes |
| Feature | Description |
|---|---|
| Color Appearance | Black |
| Control Knobs | Gloss Black |
| Frameless | Yes |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 49 pounds |
| Cabinet Width | 36.0 inches |
| Cooktop Size | 36 inches |
| Cutout Dimensions (Width x Depth) (In.) | 33 inches |
| Net Weight | 43.4 pounds |
| Overall Depth | 21.0 inches |
| Overall Height | 3.38 inches |
| Overall Width | 36.13 inches |
| Feature | Description |
|---|---|
| Max. Connected Load (kW) at 208V | 7.1 |
| Max. Connected Load (kW) at 240V | 9.4 |
| Max. Current Draw (Amps) at 208V | 34.1 |
| Max. Current Draw (Amps) at 240V | 39.2 |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
