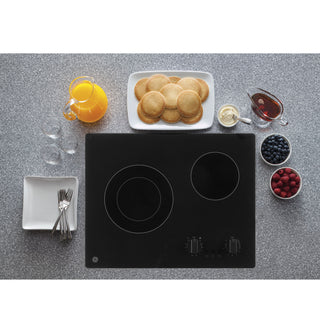

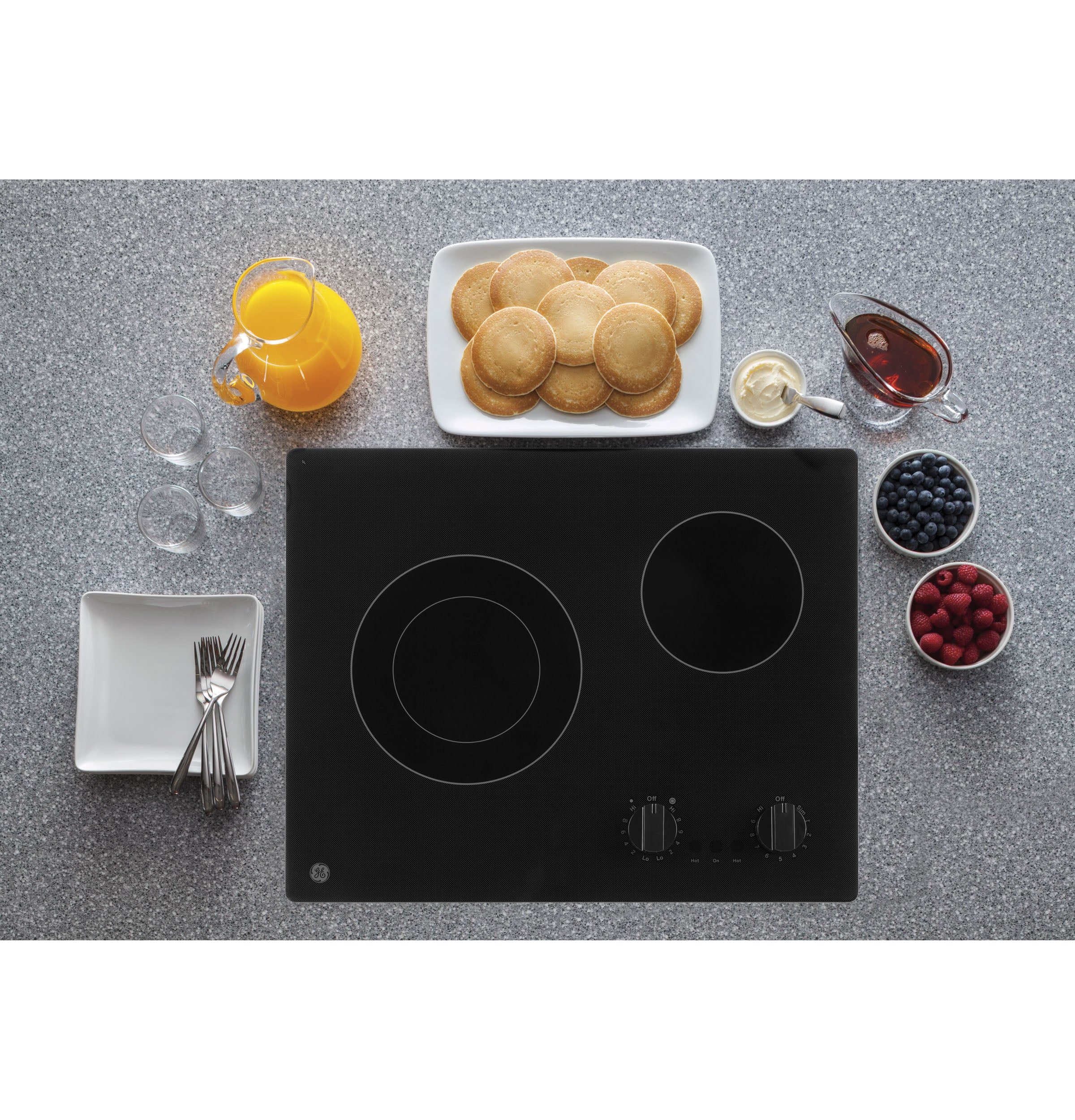

GE® 21" Electric Radiant Cooktop
SKU: JP3021DPBB
Compact cooktop

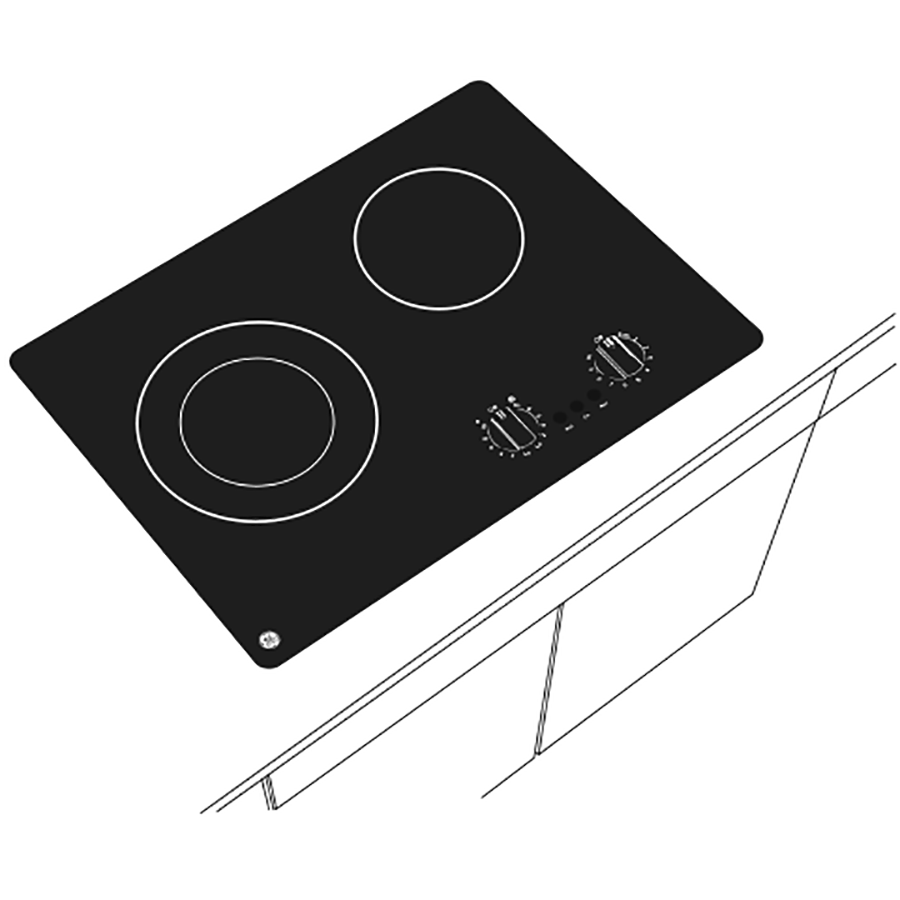

21" cooktop for specialty installations

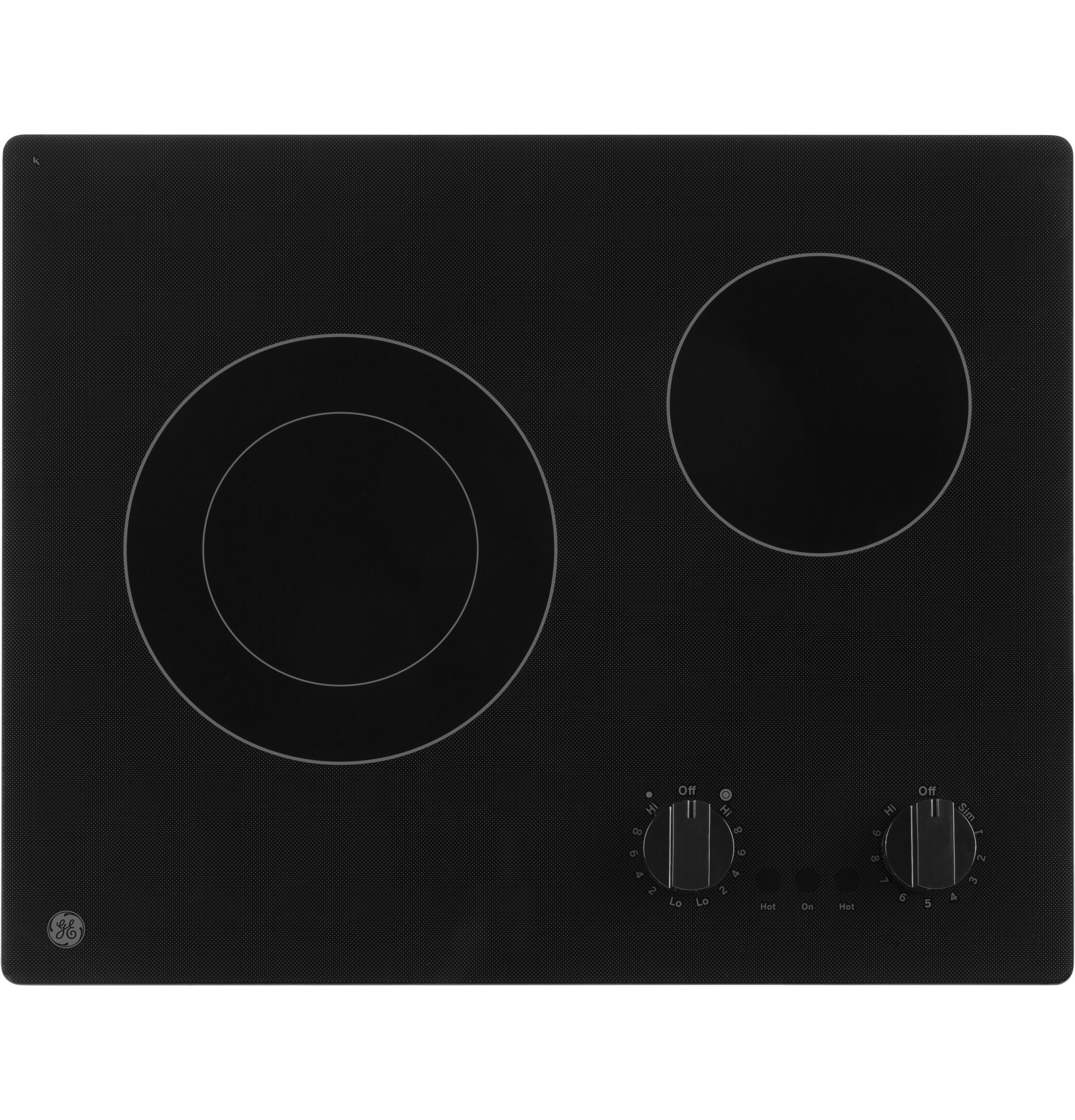

Ceramic-glass cooktop
Cleanup is quick and easy

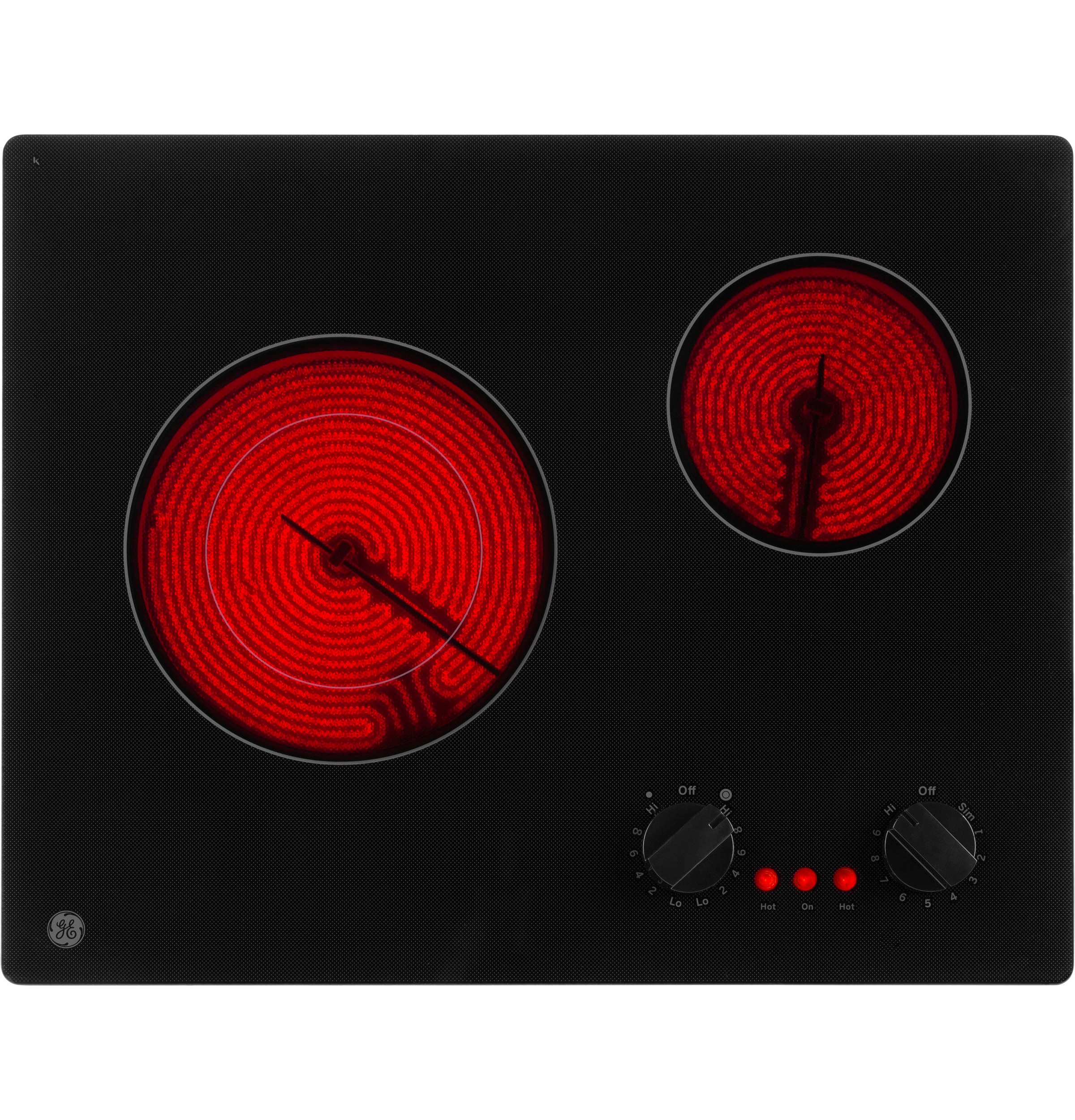

Ribbon heating elements
Consistent heat and glass surface provide fast, even heating
9"/6" dual element
Two heating elements in one offer flexibility
| Feature | Description |
|---|---|
| Configuration | Infinite Heat |
| Control Location | Front Right |

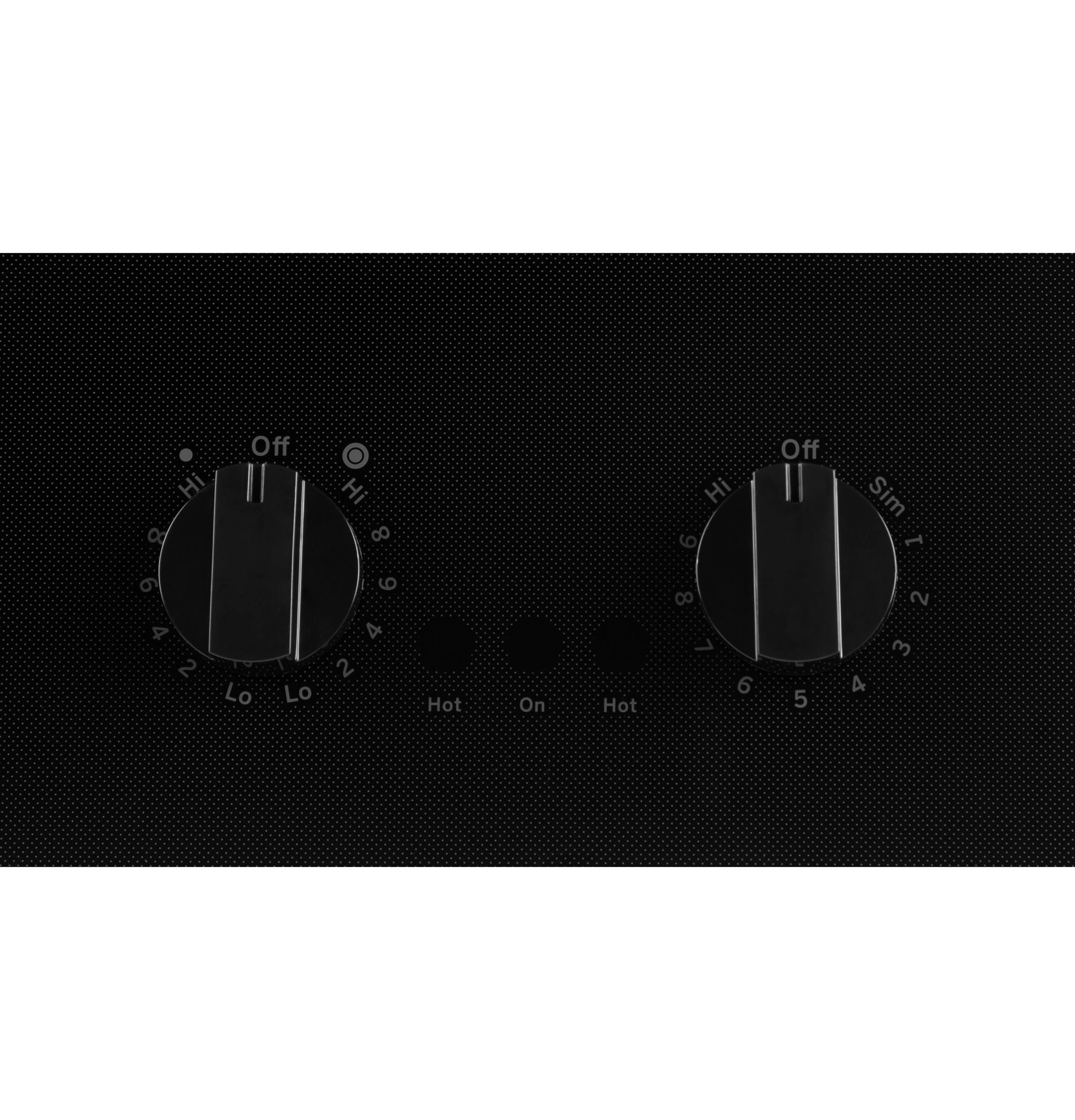

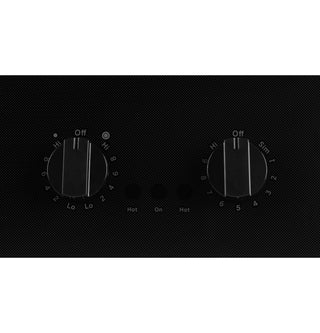

| Control Type | Infinite Heat Rotary |
| Cooktop Burner Type | 2 Ribbon, Smoothtop |
| Cooktop Type | Radiant Smoothtop |
| Dishwasher Safe Knobs | Yes |
| Element - Left Front | 9"/6" 2500W |
| Element - Right Front | 6" 1200W |
| Fuel Type | Electric |
| Indicator Lights | 1 Hot Surface, Surface Element "ON" |
| Feature | Description |
|---|---|
| Color Appearance | Black |
| Control Knobs | Plastic |
| Frameless | Yes |
| Installation | See Instructions |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 20 pounds |
| Cabinet Width | 21.0 inches |
| Cooktop Size | 21 inches |
| Cutout Dimensions (Width x Depth) (In.) | 20 inches |
| Net Weight | 17 pounds |
| Overall Depth | 17.13 inches |
| Overall Height | 3.25 inches |
| Overall Width | 21.5 inches |
| Feature | Description |
|---|---|
| Amp Rating at 208V | 20 |
| Amp Rating at 240V | 20 |
| KW Rating at 208V | 2.7 |
| KW Rating at 240V | 3.7 |
| Volts/Hertz/Amps | 240/208V; 60 Hz; 20A |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
