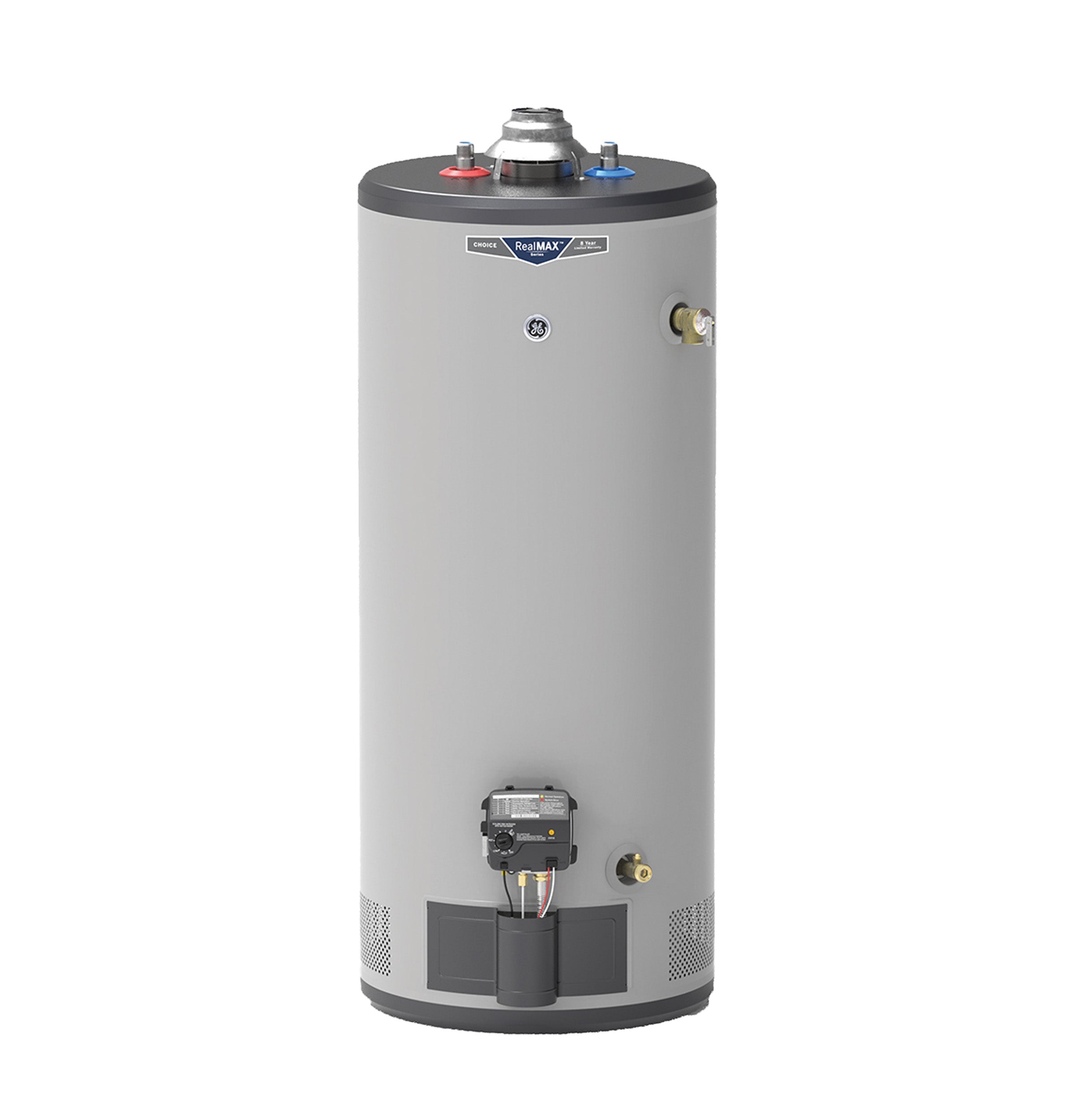

GE RealMAX Choice 30-Gallon Short Natural Gas Atmospheric Water Heater
SKU: GG30S08BXR
Anode Rod
Bin TestingMedium
Connection Sizes - Hot Water Outlet (MNPT)
Connection Sizes - Water Inlet (MNPT)3/4"
| Feature | Description |
|---|---|
| Altitude Rating | 10100 |

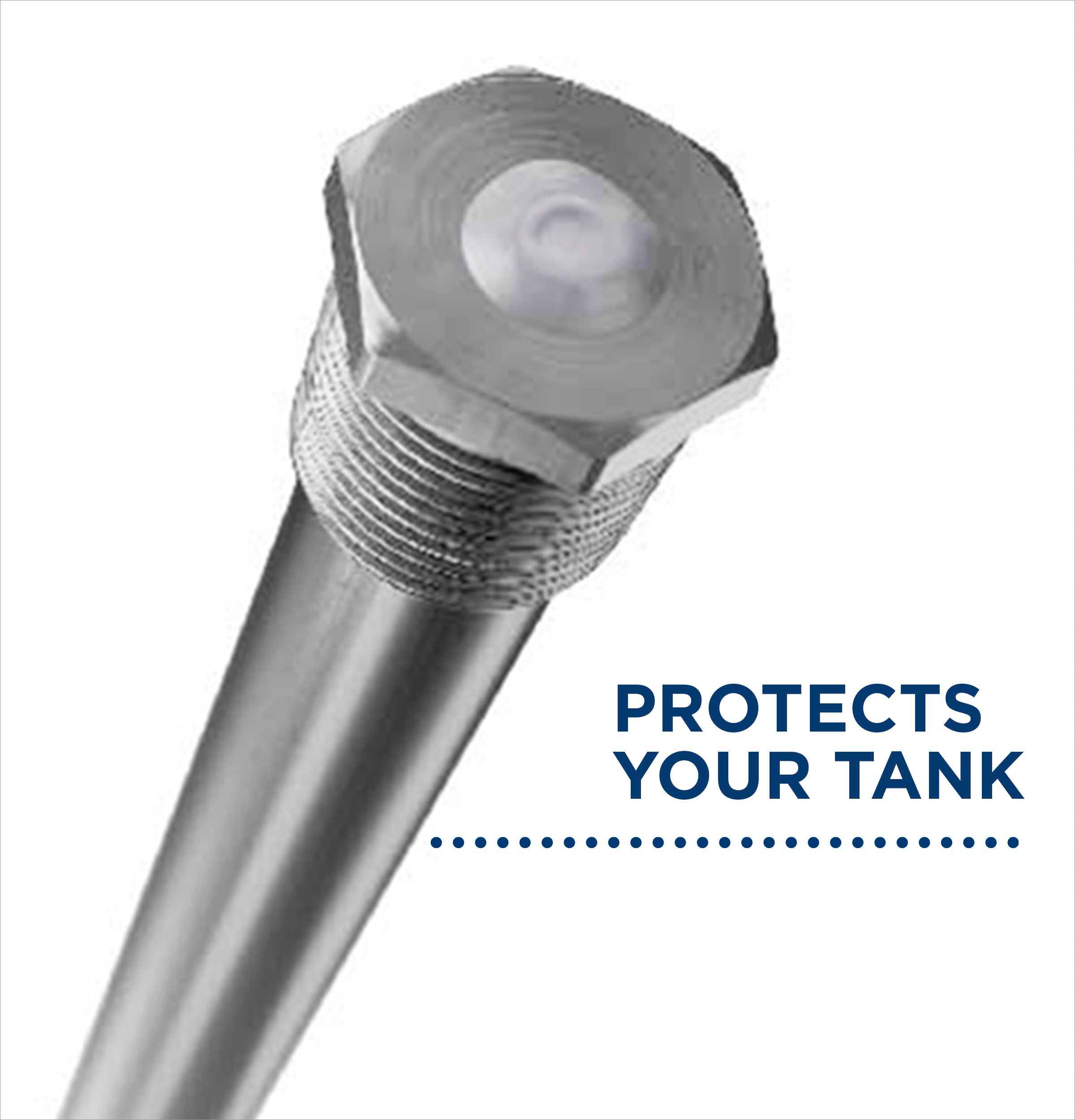

| Anode Rod | Magnesium |
| Bin Testing | Medium |
| Configuration | Short |

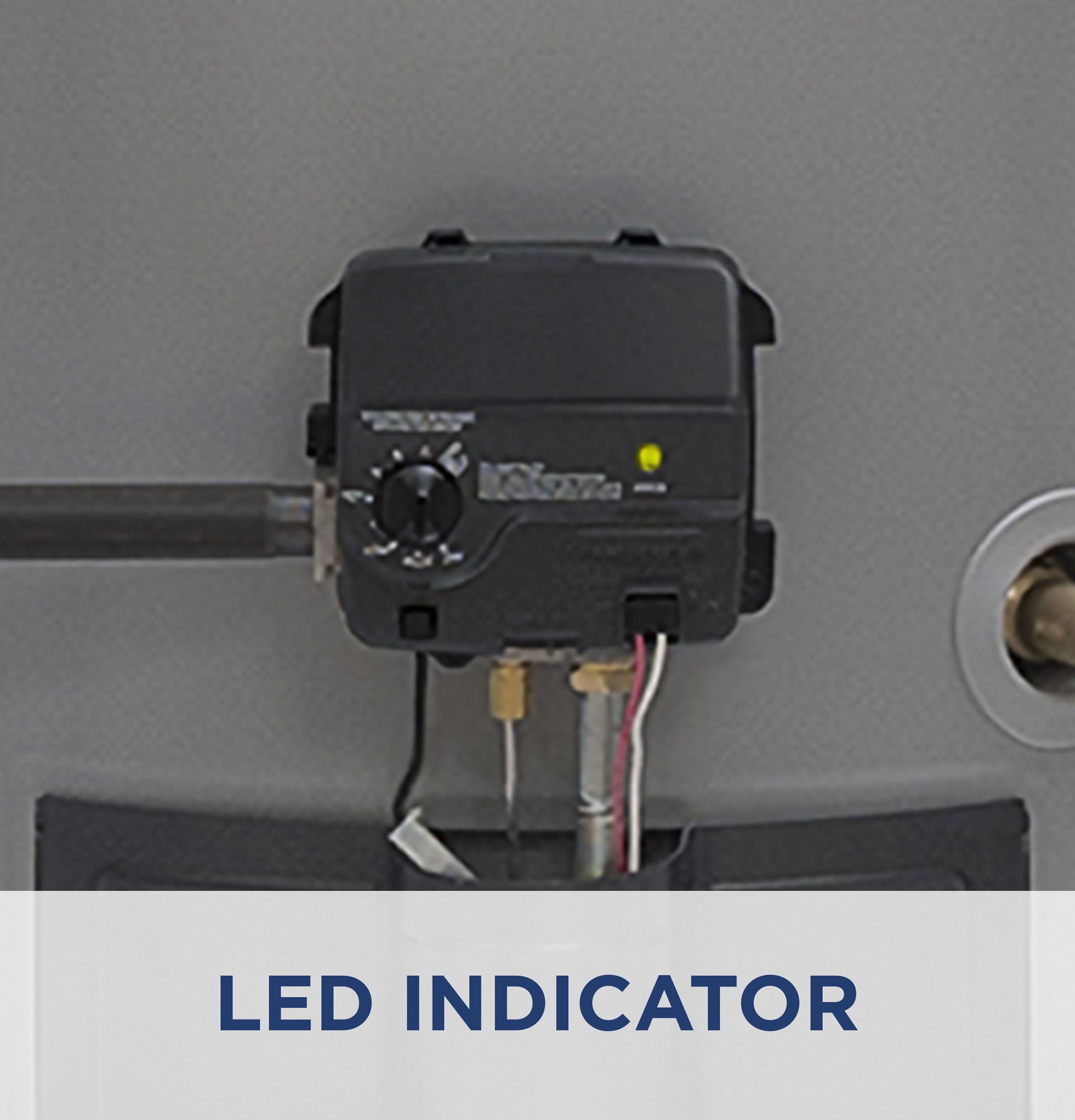

| Controls | LED Indicator |
| Drain Valve Type | Plastic |
| Family Size | 1-3 People |
| Fuel Type | Natural Gas (factory set) |

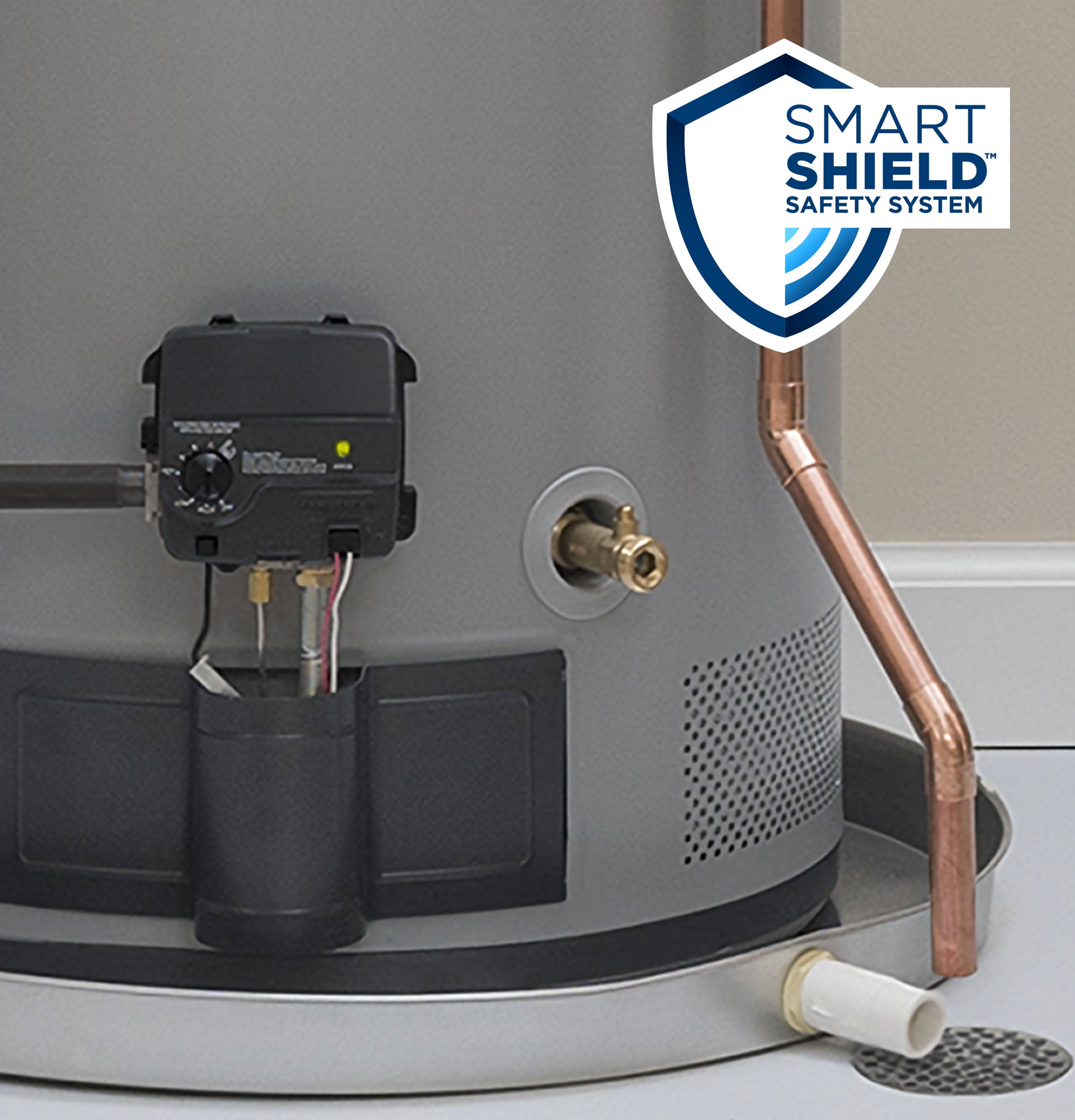

| FVIR Safety System | Prevents accidental ignition of flammable vapors |
| Gas Valve | Self Powered |
| Height Description | Short |
| Overheat Protection | Dry Burning Protection |
| Pilot Light Window / Button | Yes |
| Product Type | Gas |
| Temp & Pressure Relief Valve | Yes |
| Temperature Setting | 45-160Adeg F Range |
| UEF | .6 |
| Vent | Atmospheric |
| Water Connection Location | Top |
| Feature | Description |
|---|---|
| Color Appearance | Gray |
| Feature | Description |
|---|---|

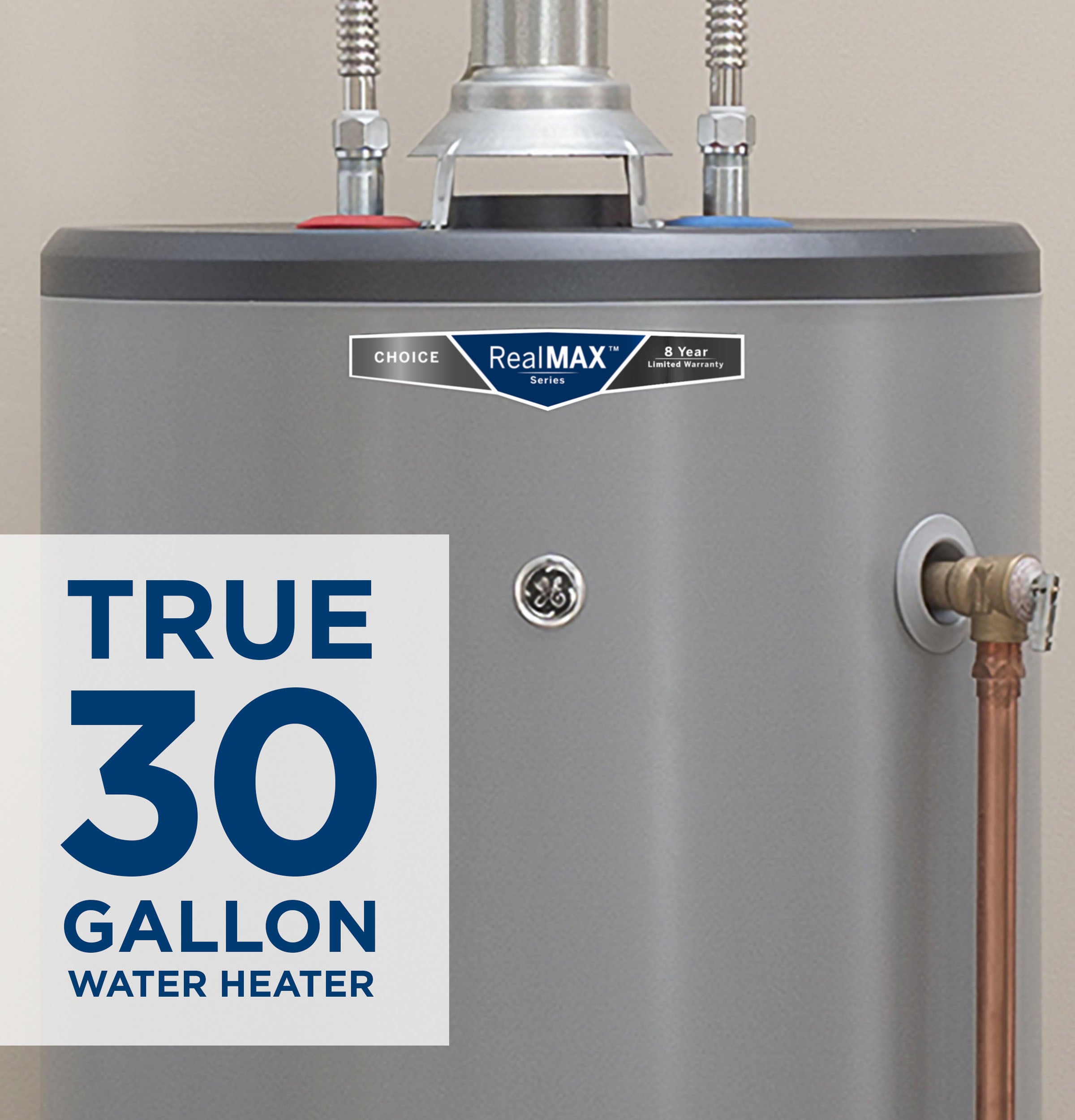

| Unit Capacity | 30 Gallons |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 118 pounds |
| Connection Sizes - Hot Water Outlet (MNPT) | 3 inches |
| Connection Sizes - Water Inlet (MNPT) | 3 inches |
| Height to Gas Control | 11.25 inches |
| Net Weight | 112 pounds |
| Overall Depth | 20.0 inches |
| Overall Height | 50.25 inches |
| Overall Width | 20.0 inches |
| Product Diameter | 20 inches |
| Product Height (to top of unit) | 46.88 inches |
| Product Height (to top of water inlet/outlet connections) | 48.38 inches |
| Vent Size | 3 inches |
| Feature | Description |
|---|---|
| Burner BTU Size (k) | 34 |
| First Hour Delivery GPH | 64 |
| Feature | Description |
|---|---|
| Labor Warranty | 1-year limited |
| Parts Warranty | 8-year limited |
| Warranty Notes | See written warranty for full details |
