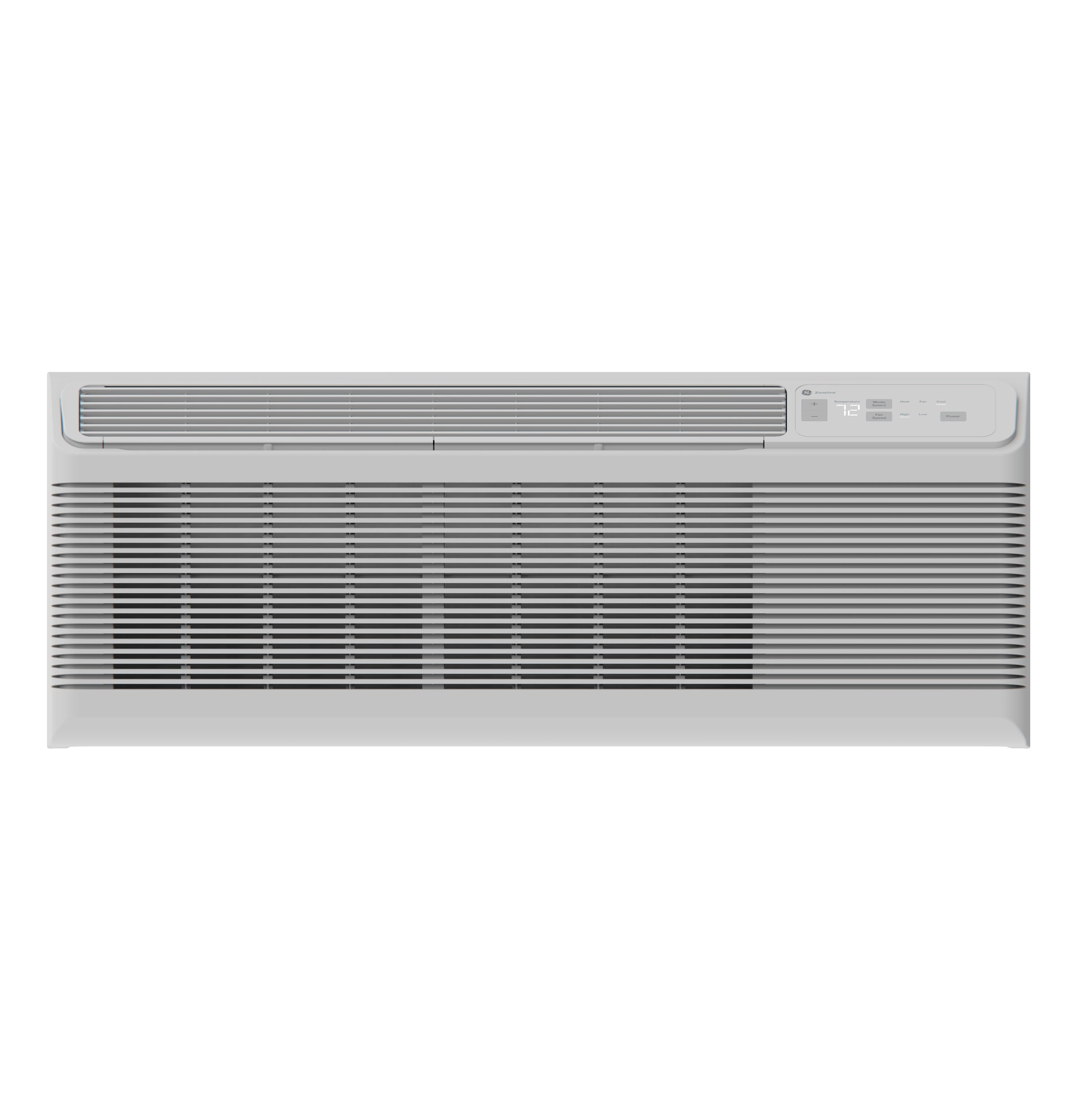

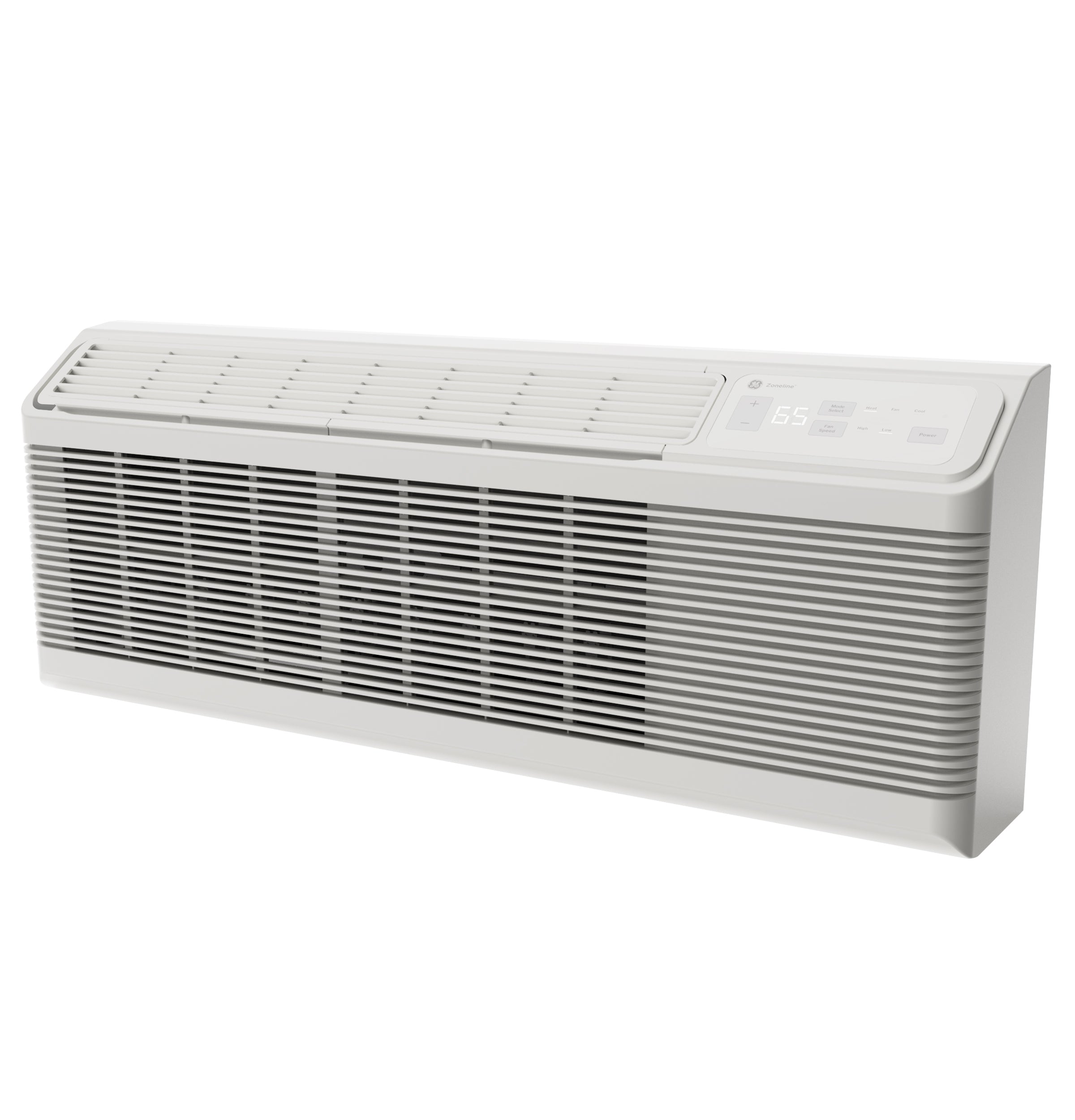

GE Zoneline® Heat Pump Fixed Speed Unit with Corrosion Protection 7,000 BTU, 265 Volt
Out of stock : 0
AZHS07ECXXA
$1,307.00
FEATURES Zoneline Features "Sleep" Mode, "Smart Fan" Fan Cycle Control, 3-Stage Heating Design, Auto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Heat Pump with Supplemental Resistance Heat, Heat Sentinel, Proportional - Integral ID Airflow, Quick Heat...
• Own this product? See Maintenance & Care
R454B - Most environmentally friendly refrigerant on the market
Control TypeStandard Microcomputer, Tactile touch pad with LED Display
Heat pump down to 25AdegF
Overall Depth20.812500
Boost heat option
Cooling BTUH (MAX)7100.000000

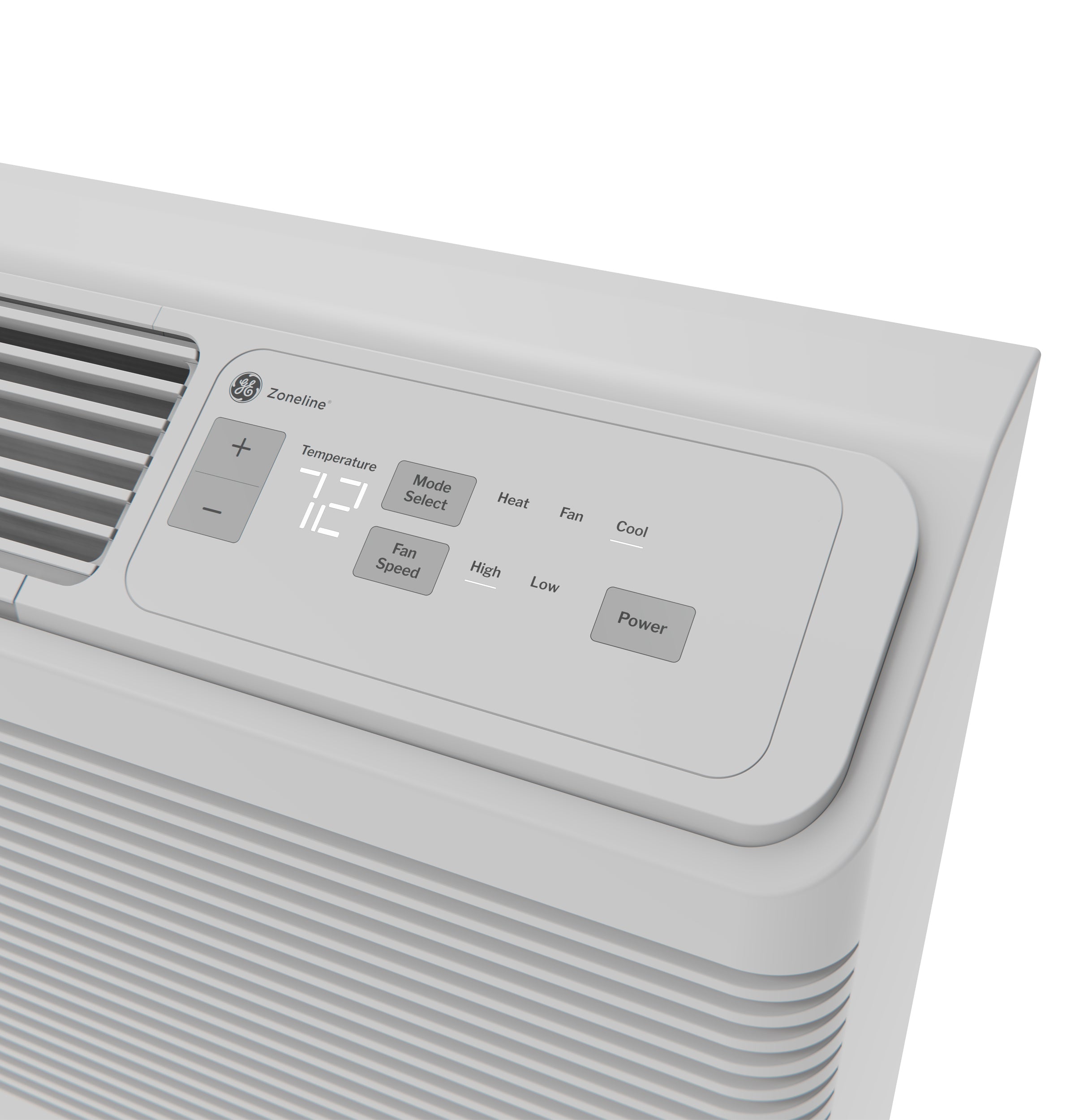

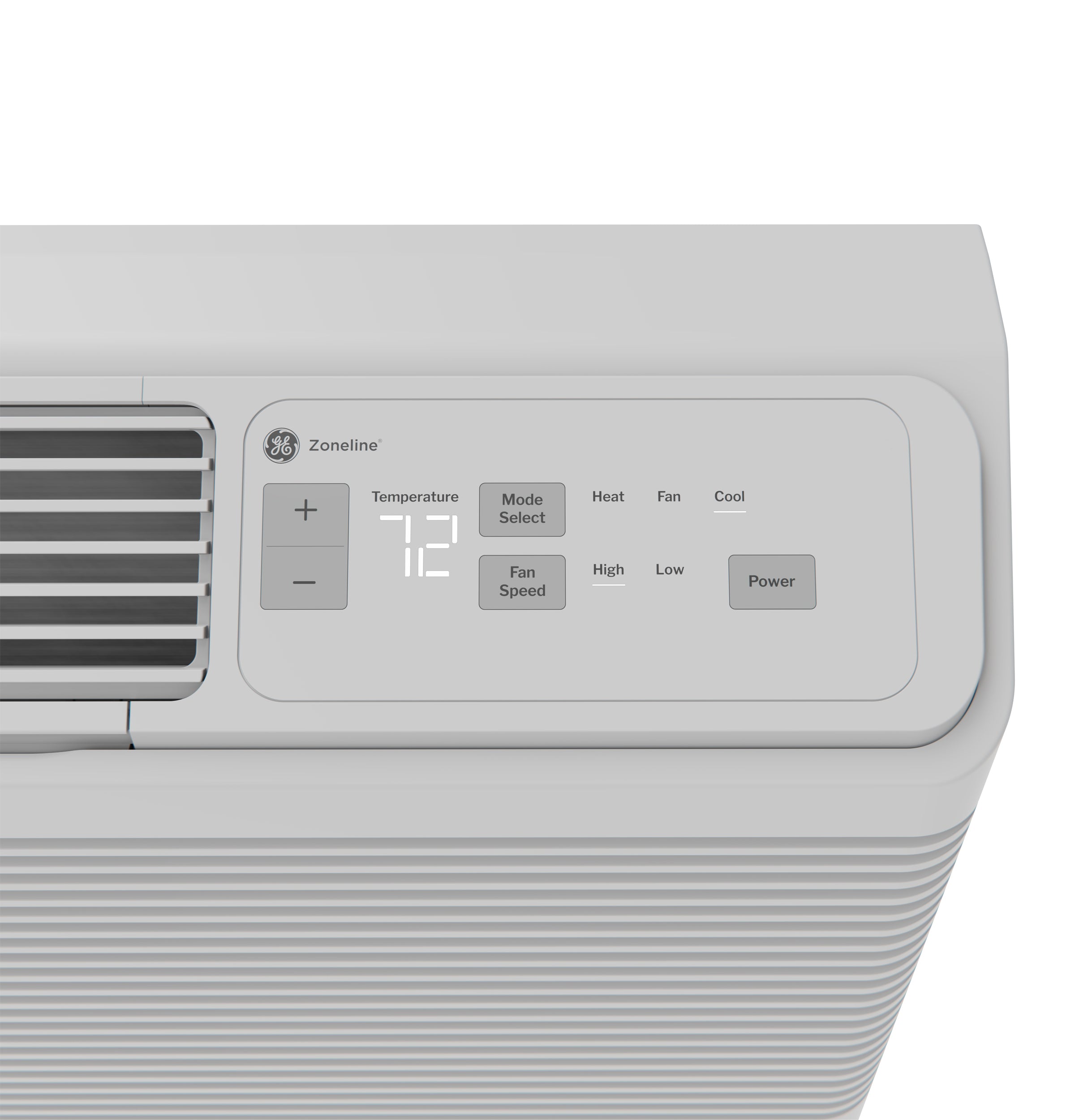

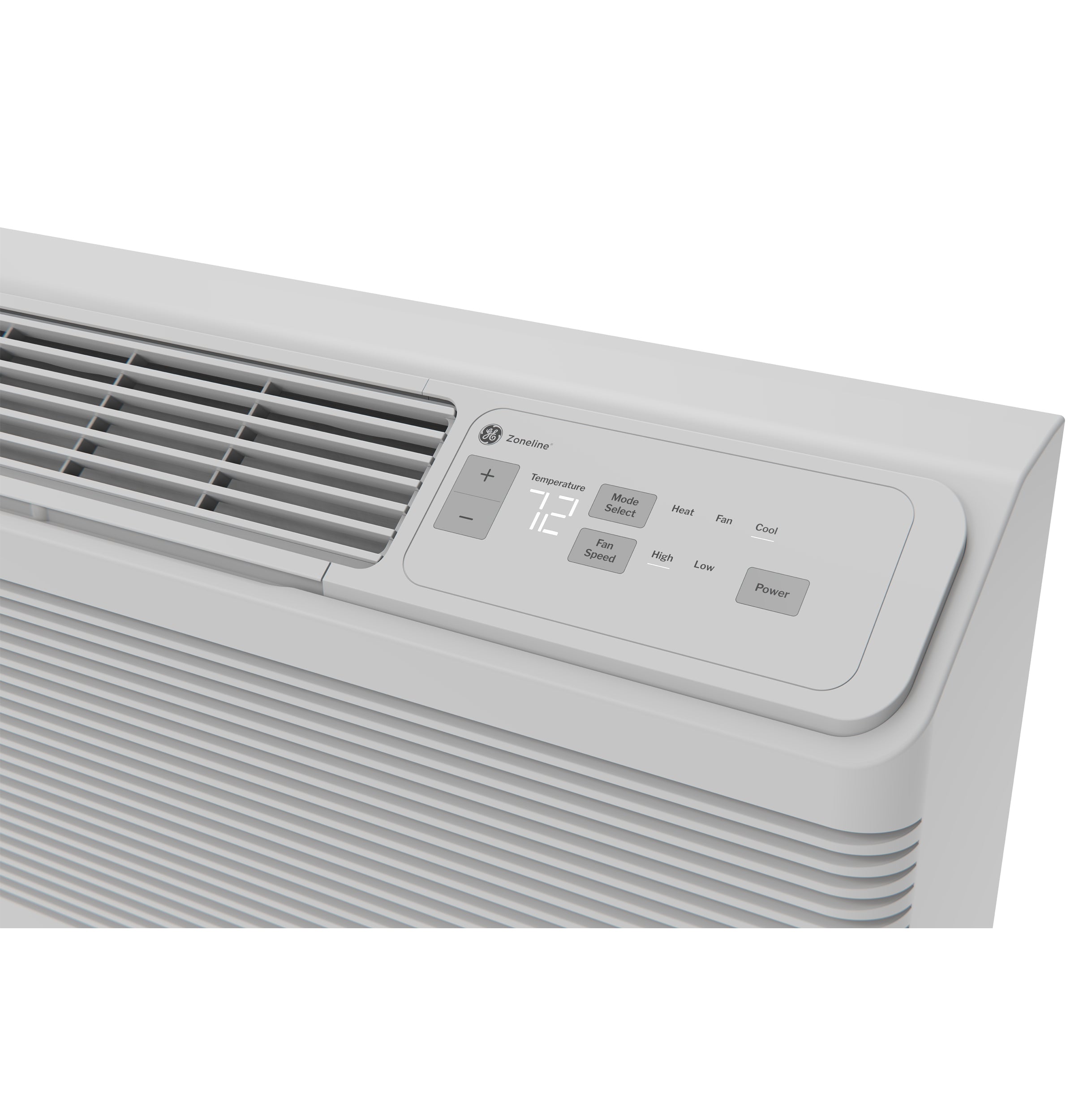

Electronic touch controls with LED display
Quiet Operation - baked on mastic sound barrier
Corrosion protection package
Warranty NotesSee written warranty for full details
| Feature | Description |
|---|---|
| Central Desk Control Compatibility | Yes |
| Chassis Type | Slide-In |
| Control Type | Standard Microcomputer, Tactile touch pad with LED Display |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating |
| Filter Type | Rigid Frame, Slide-Out |
| Heat - Cool | Yes |
| Heating - Reverse Cycle - COP | 3.9 |
| Heating System | Heat Pump |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Power Factor | 95 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R454B |
| Rotary Compressor | Yes |
| Sensible Heat Ratio | 77% |
| Temperature Limiting | Electronic 7-Step |
| Temperature Range | 60 - 85 F |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter |
| Zoneline Features | "Sleep" Mode, "Smart Fan" Fan Cycle Control, 3-Stage Heating Design, Auto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Heat Pump with Supplemental Resistance Heat, Heat Sentinel, Proportional - Integral ID Airflow, Quick Heat Recovery, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Reverse Cycle Defrost, Universal Heaters, Weather Protected Electrical Components |
| Feature | Description |
|---|---|
| Color Appearance | Grey White |
| Feature | Description |
|---|---|
| CFM Indoor Fan High | 335 |
| CFM Indoor Fan Low | 240 |
| Cooling BTUH (MAX) | 7100.000000 |
| Cooling BTUH (MIN) | 6100 |
| Cooling EER (BTUH / Watt) | 12.7 |
| Dehumidification (pts./hr.) | .9 (High Speed) |
| Vent CFM (high fan at zero ESP) | 33 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 108 inches |
| Net Weight | 98 inches |
| Overall Depth | 20.81 inches |
| Overall Height | 16.0 inches |
| Overall Width | 42.0 inches |
| Feature | Description |
|---|---|
| Cooling - Amperes | 2.2 |
| Cooling - Amperes; F.L. - Cooling | 2.2 |
| Cooling - Amperes; L.R. | 11.7 |
| Cooling - Watts | 545 |
| Heating BTUH | 6100 |
| Heating - Reverse Cycle - Amps | 1.9 |
| Heating - Reverse Cycle - Watts | 460 |
| Voltage (MAX) | 265.000000 |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance, Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
