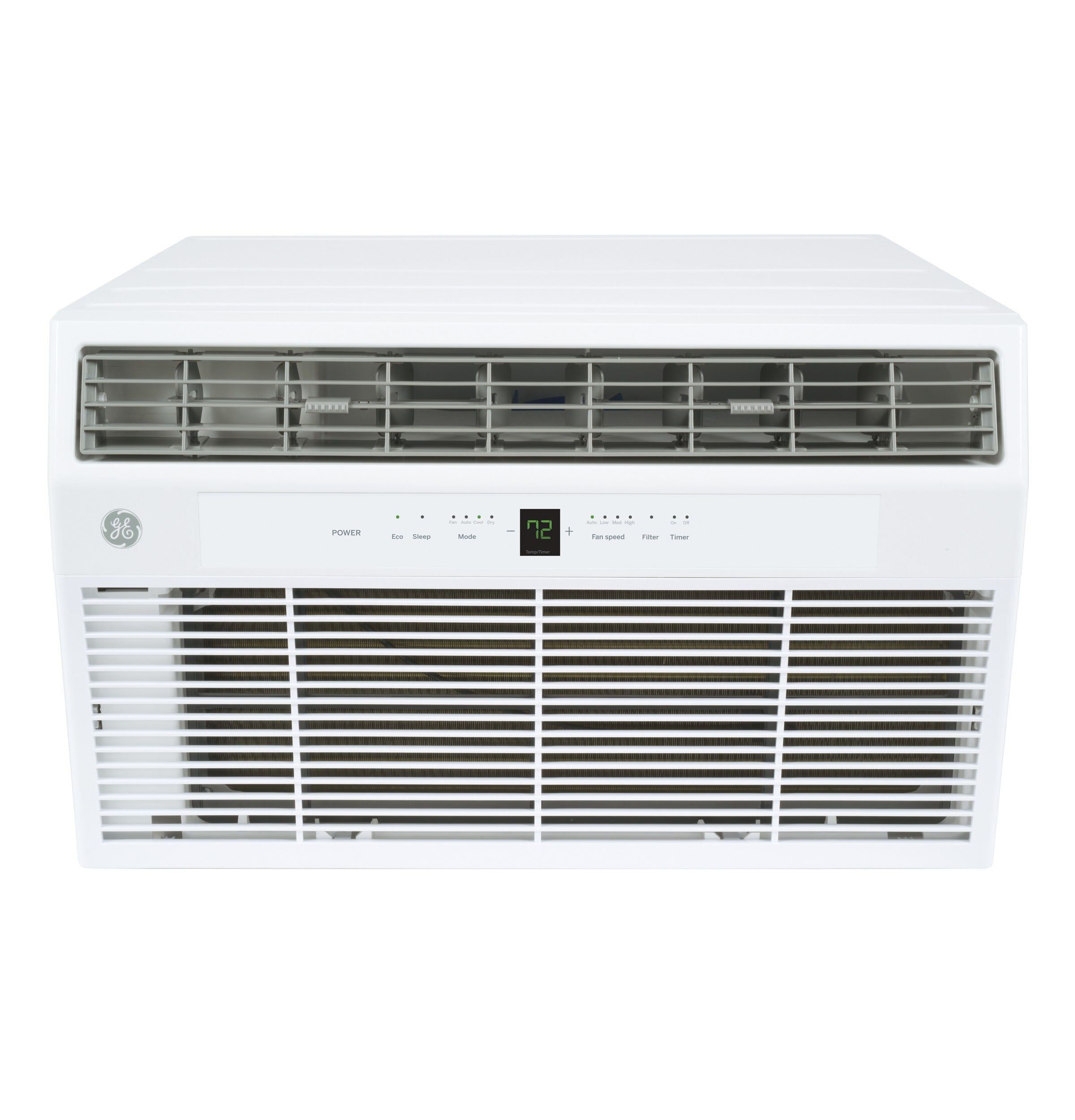

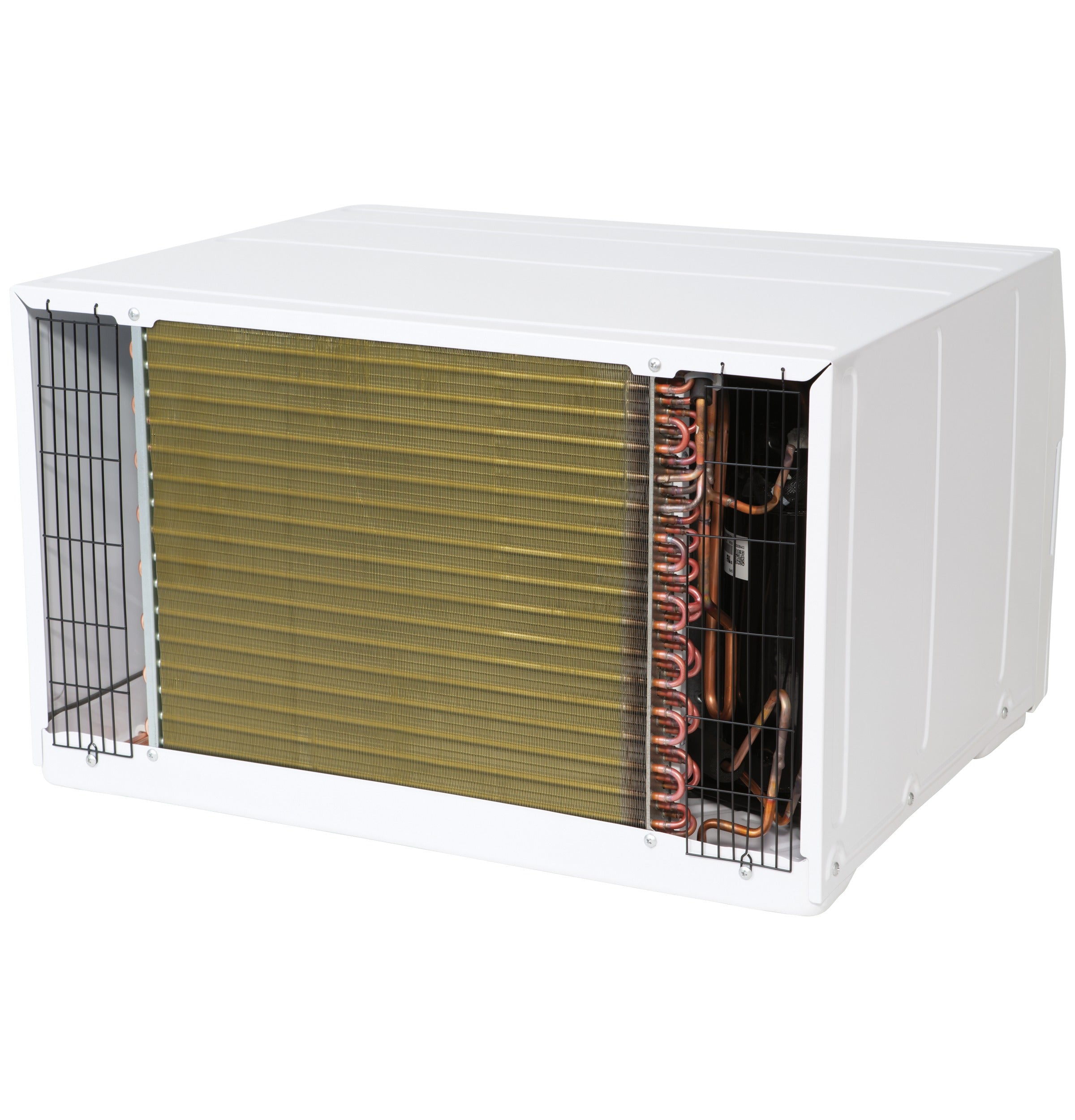

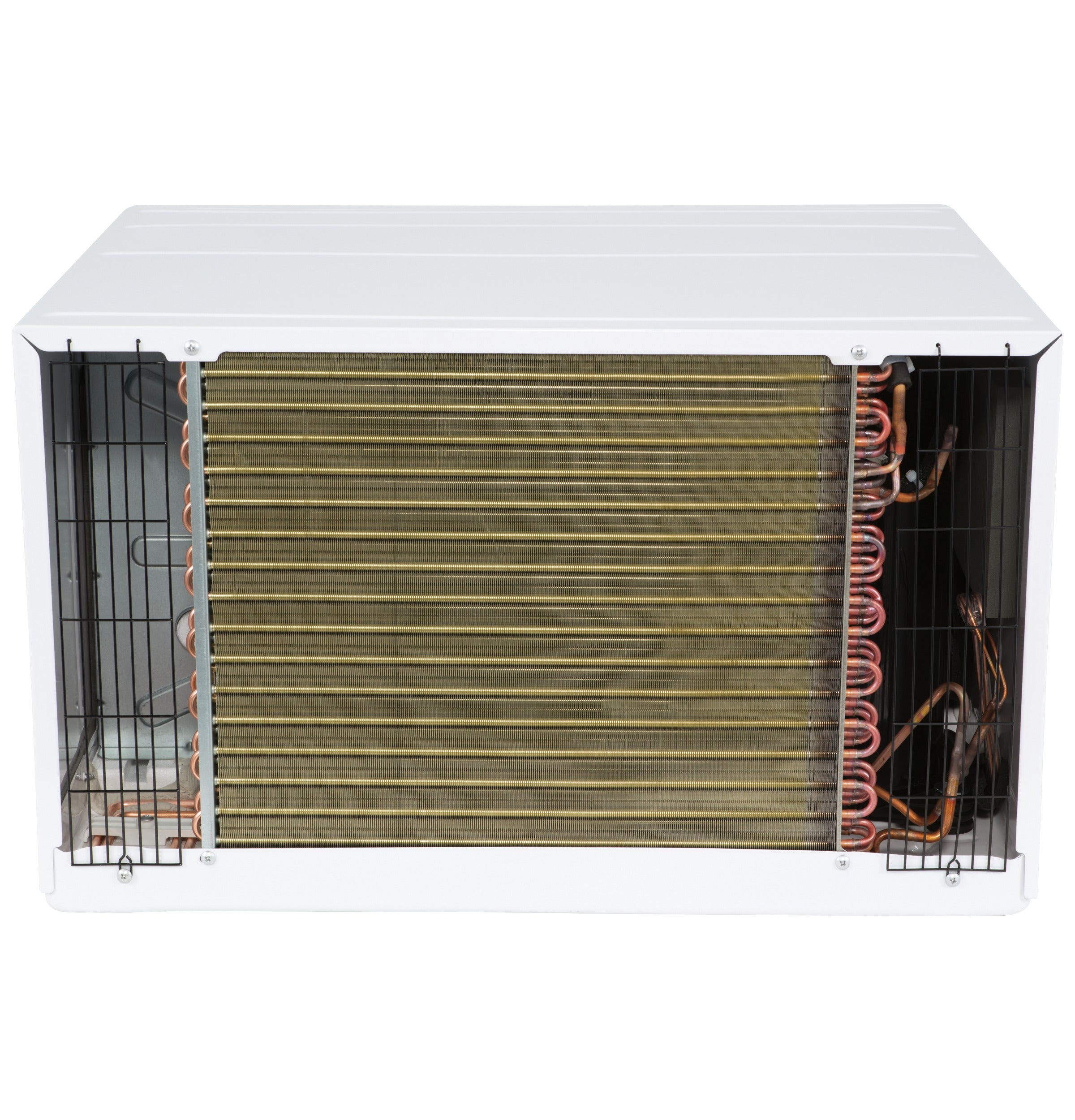

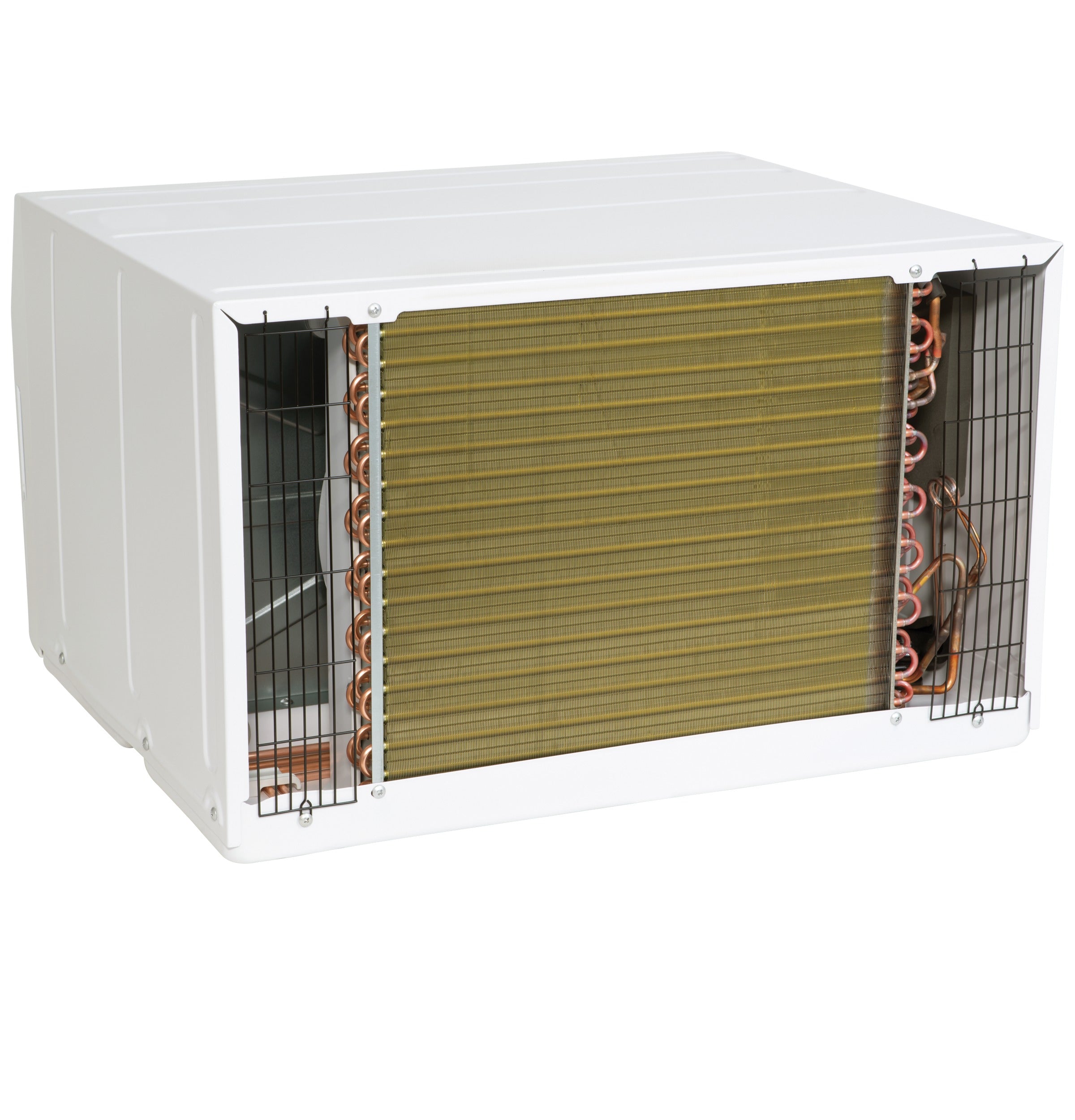

GE® Built In Air Conditioner
SKU: AKCQ12ACJ
True Universal Fit

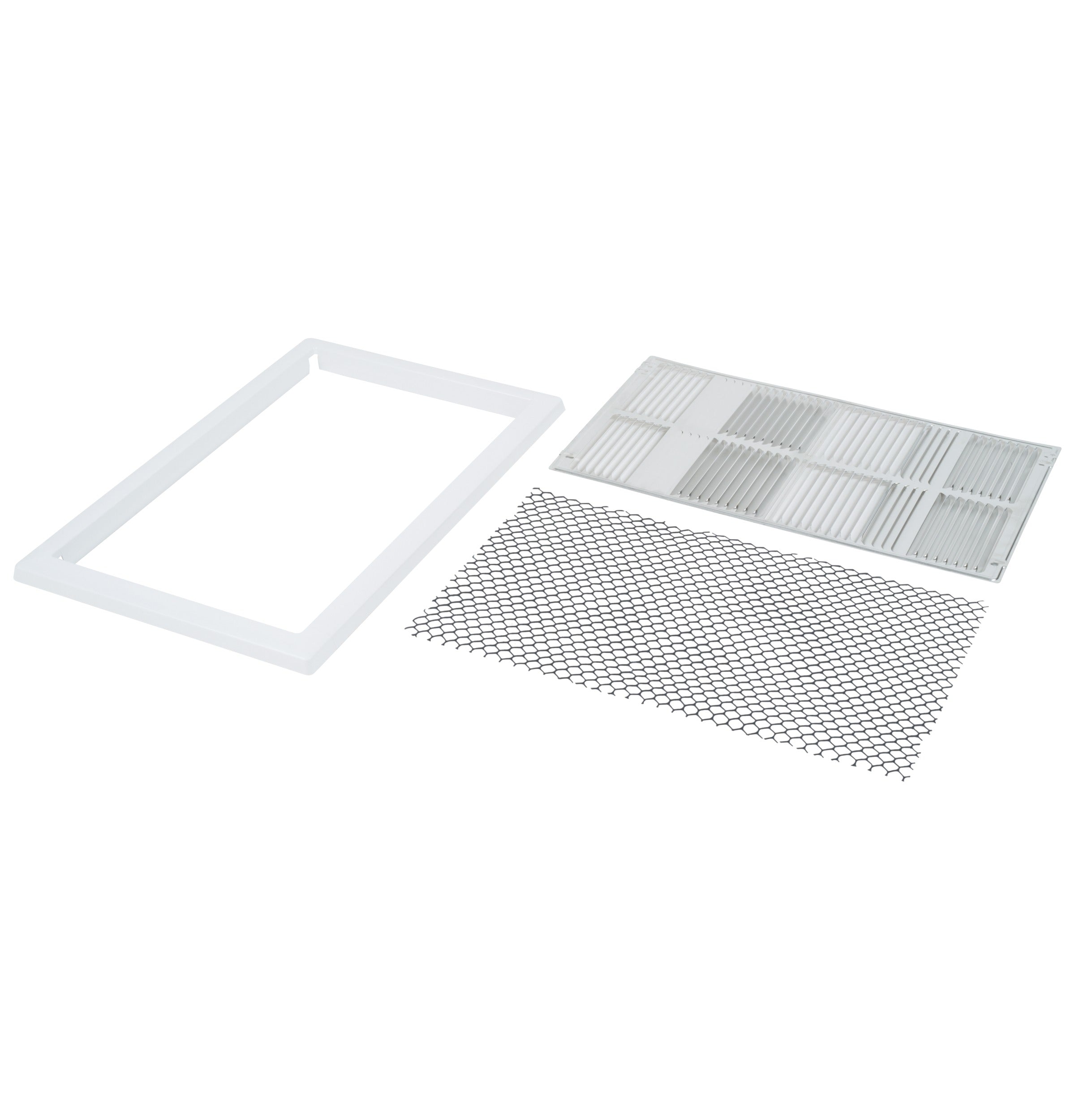

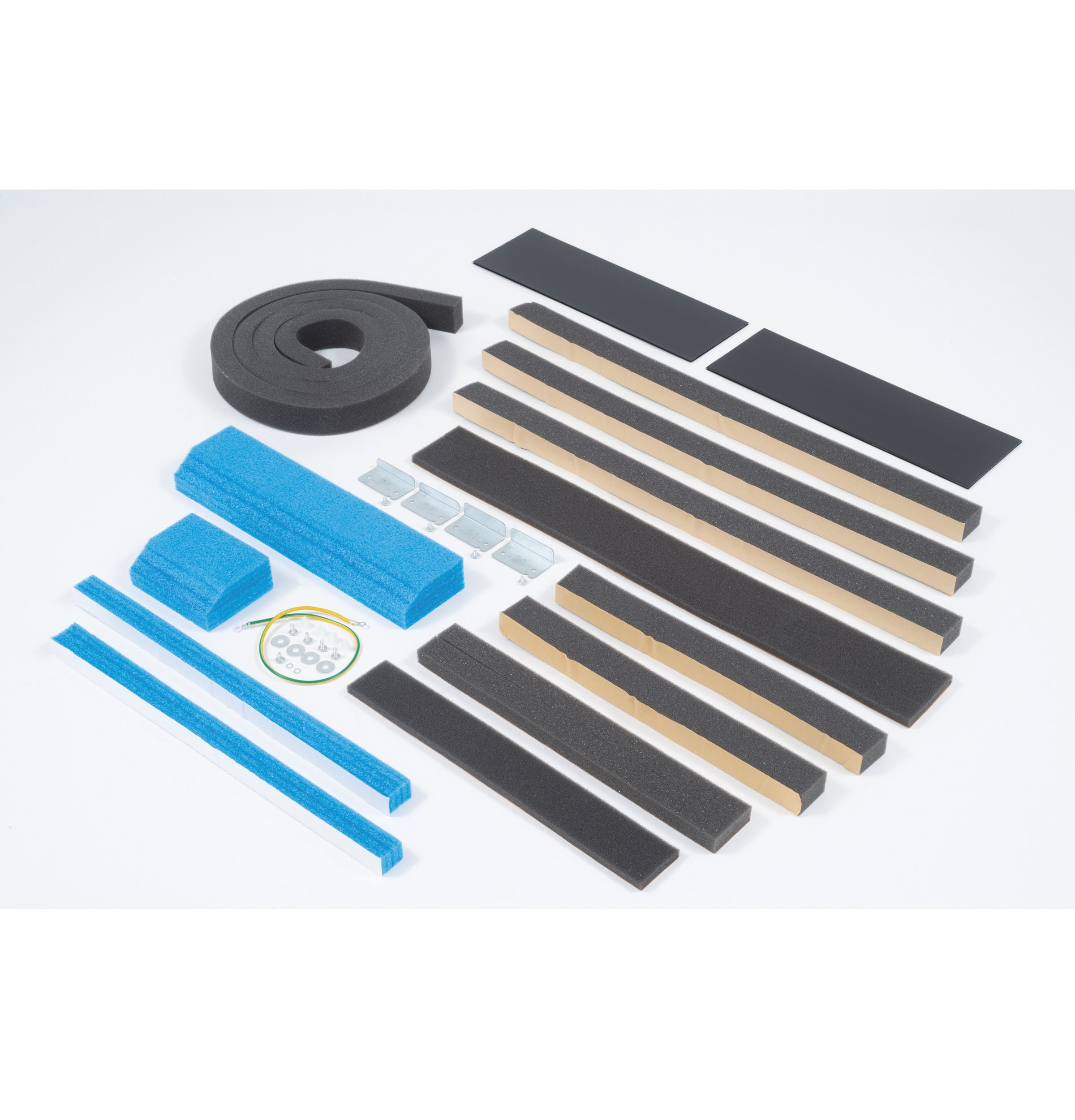

Simple slide-in installation is built in for a precise fit into a variety of different wall sleeves. Quickly fit and retrofit with confidence. Trim kit and installation kit included
Sleek Appearance
Cutout Height (in)15.625 in
Large LCD Display
Intuitive & easy-to-read LCD display controls room air comfort at a single touch
ECO Mode
Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
Dry Mode
Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
6-Way Directional Airflow
| Feature | Description |
|---|---|
| Air Flow Volume CFM High/Medium/Low | 286/258/235 |
| Annual Operating Cost | 125 |
| Area to Cool | 450-550 |
| Chassis Type | Fixed |
| Cord Length | 48" |
| Digital Time Temp Display | Yes |
| Fan Speed Selections | 3 Cooling, 3 Fan Only |
| Filter Type | Easy Access, Permanent Mesh, Rigid, Tilt-Out, Washable |
| LCDI / AFCI power cord | Yes |
| Louver Style | 6-Way |
| Optional Grill | RAG13/RAG13A/RAG14E |
| Plug Type | A / 5-15P |
| Power Cord Length | 6 ft |
| Product Type | Built-In |
| Refrigerant Type | R32 |
| Remote Control | Yes |
| Room Air Conditioner Features | Auto Fan, Batteries Included, Dehumidify Function, Energy Saver, Filter Indicator, Infrared Remote Control, On/Off Timer, Sleep Mode |
| Rotary Compressor | Yes |
| Thermostat Type | Thermistor |
| Vent/Air Exchange Exhaust | Top |
| Feature | Description |
|---|---|
| Color Appearance | White |
| Feature | Description |
|---|---|
| Cooling BTUH (MAX) | 12000.000000 |
| Cooling EER (BTUH / Watt) | 10.5 |
| Dehumidification (pts./hr.) | 3.6 |
| Feature | Description |
|---|---|
| Approximate Shipping Weight | 87.5 pounds |
| Cutout Depth (in) | 16 inches |
| Cutout Height (in) | 15 inches |
| Cutout Width (in) | 26 inches |
| Depth to Louvers | 20.63 inches |
| Net Weight | 87.5 pounds |
| Overall Depth | 19.0 inches |
| Overall Height | 14.56 inches |
| Overall Width | 24.06 inches |
| Feature | Description |
|---|---|
| CEER | 9.5 |
| Cooling - Rated Cooling Amps AHAM | 10.9 |
| Cooling - Watts | 1230 |
| Electrical Consumpton Standby | 6 ( kWh/year) |
| Electrical Requirements | 115V |
| Volts/Hertz | 115V; 60Hz |
| Feature | Description |
|---|---|
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance, Limited 2-year refrigeration system |
